Manufacturer code: 10030776

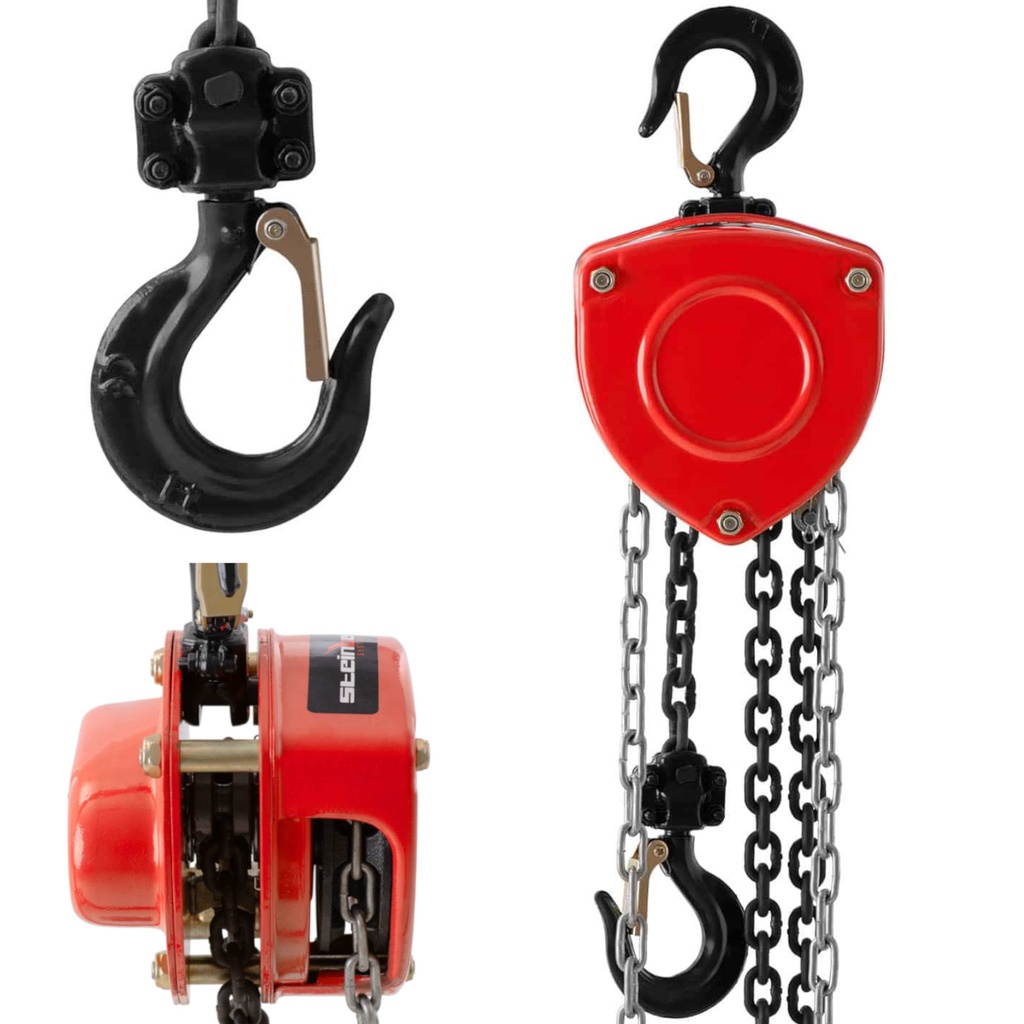

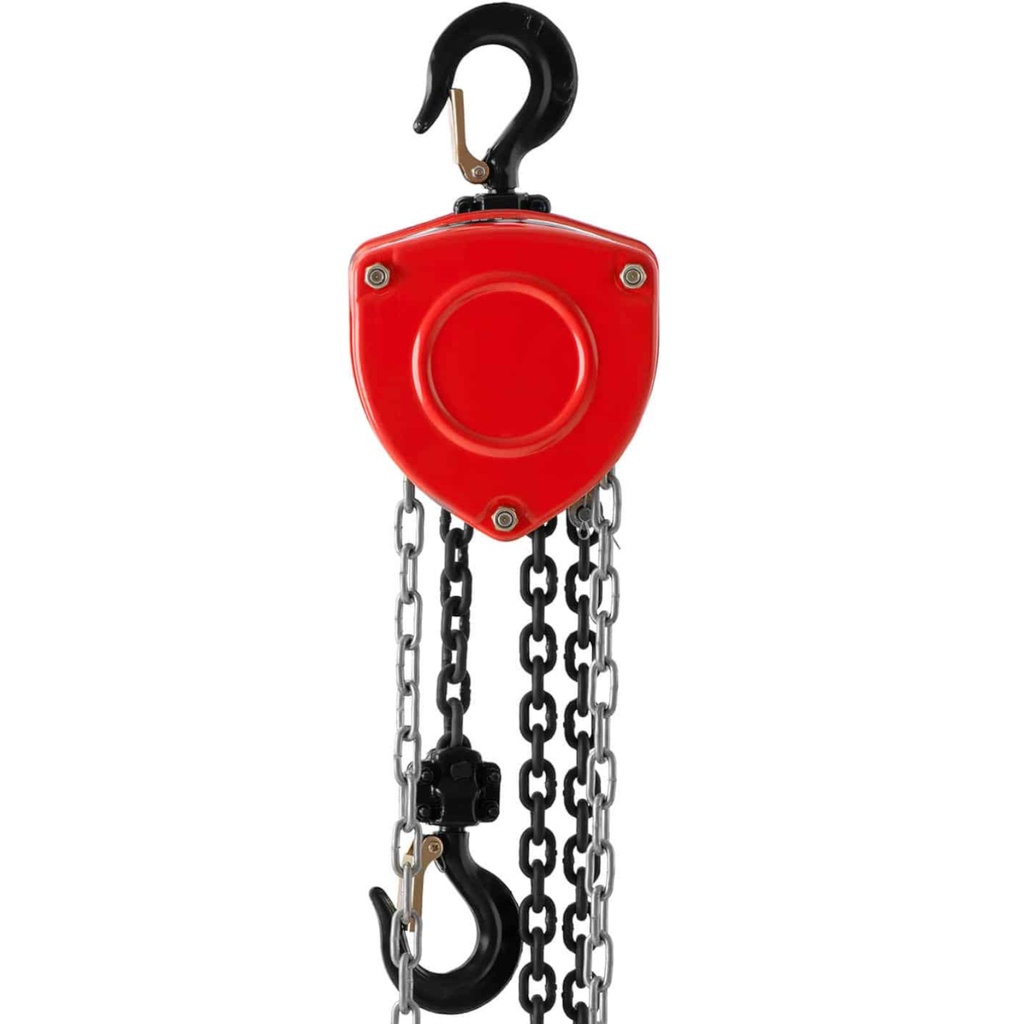

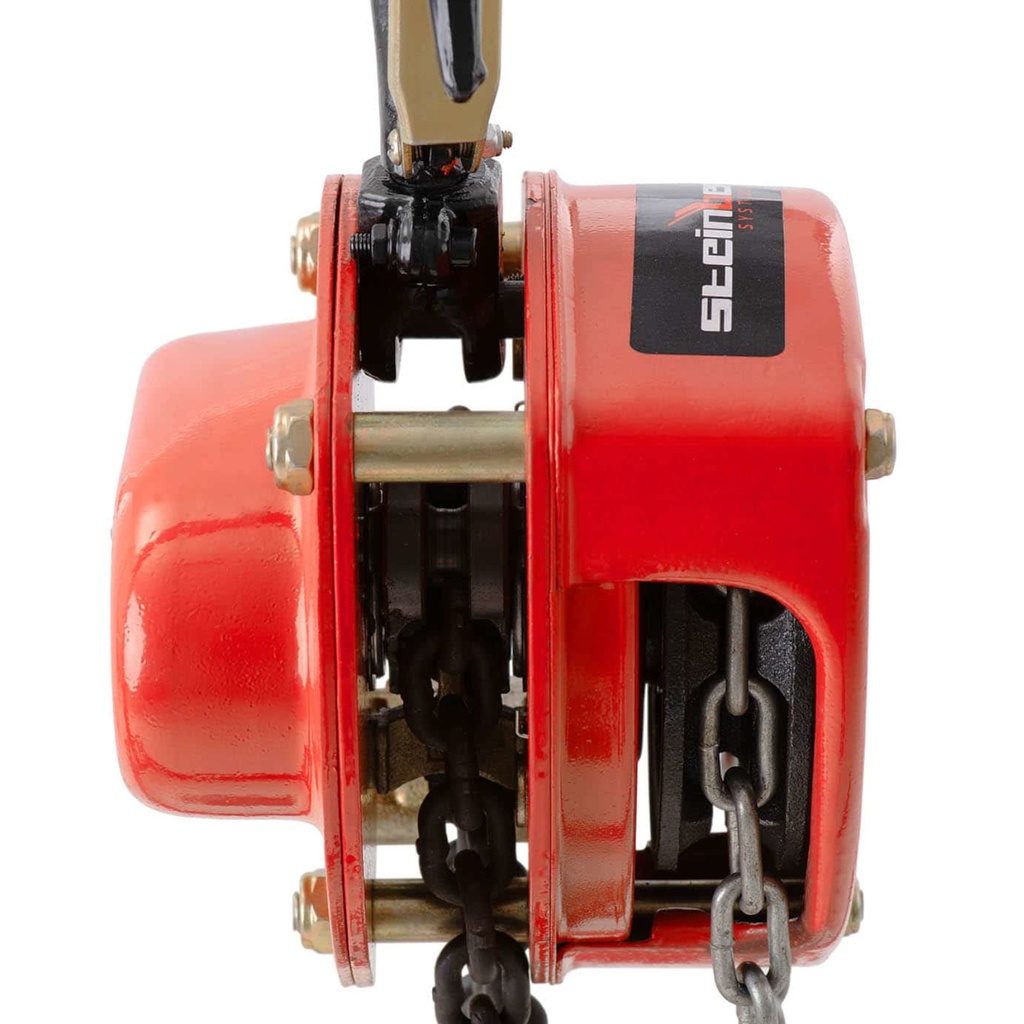

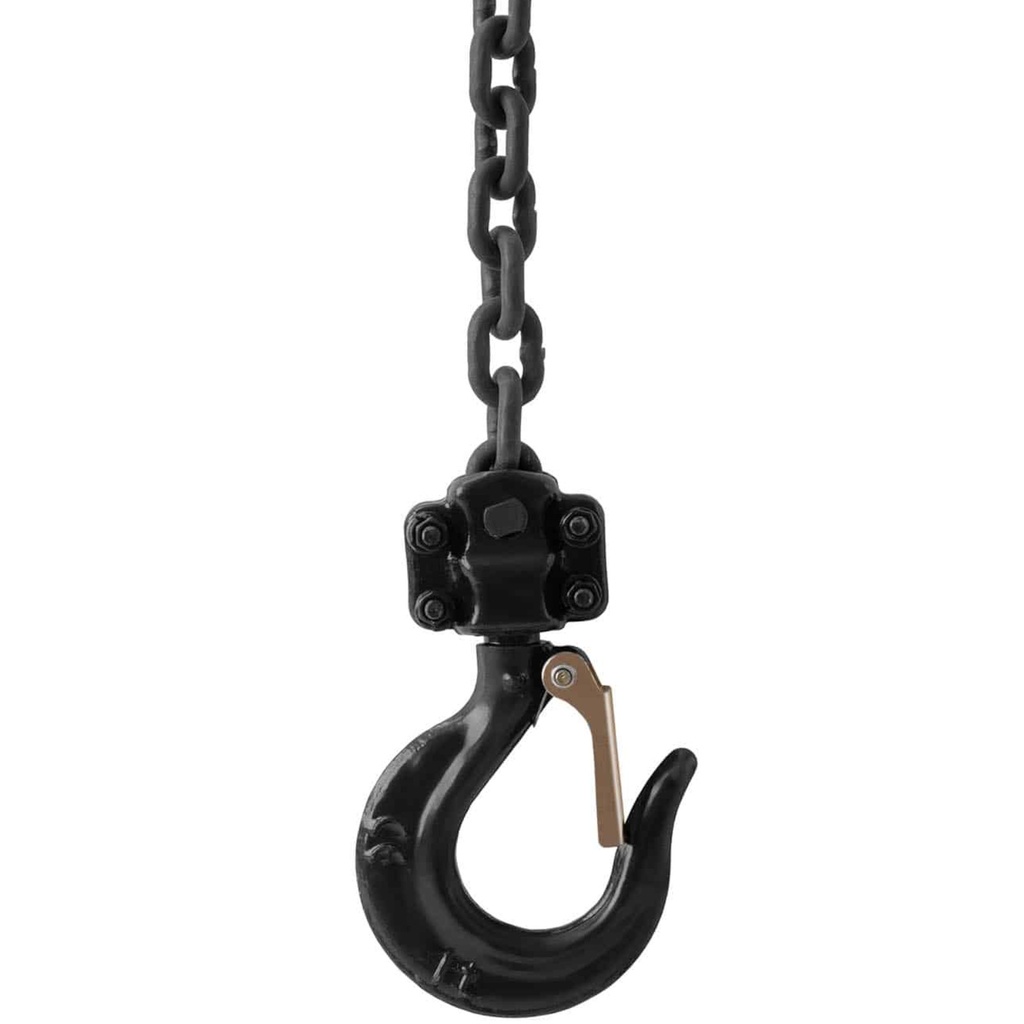

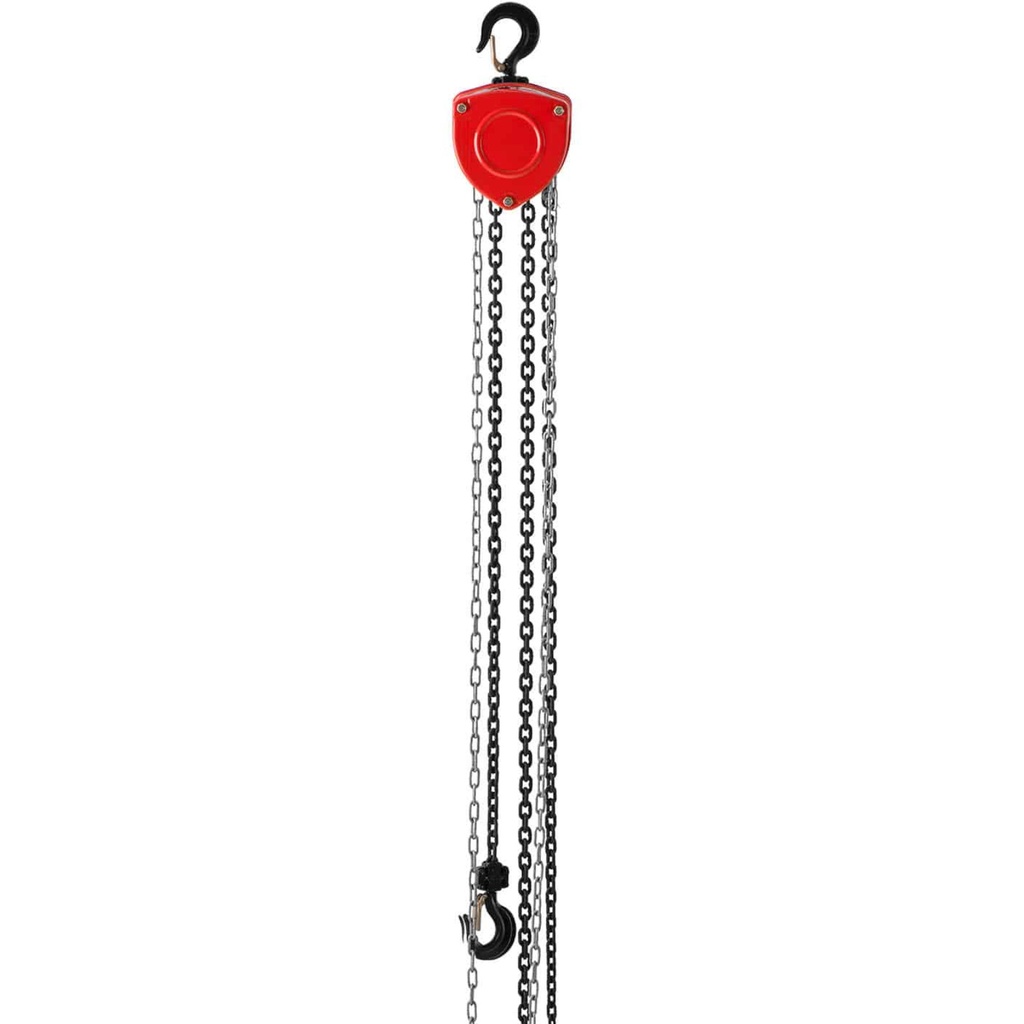

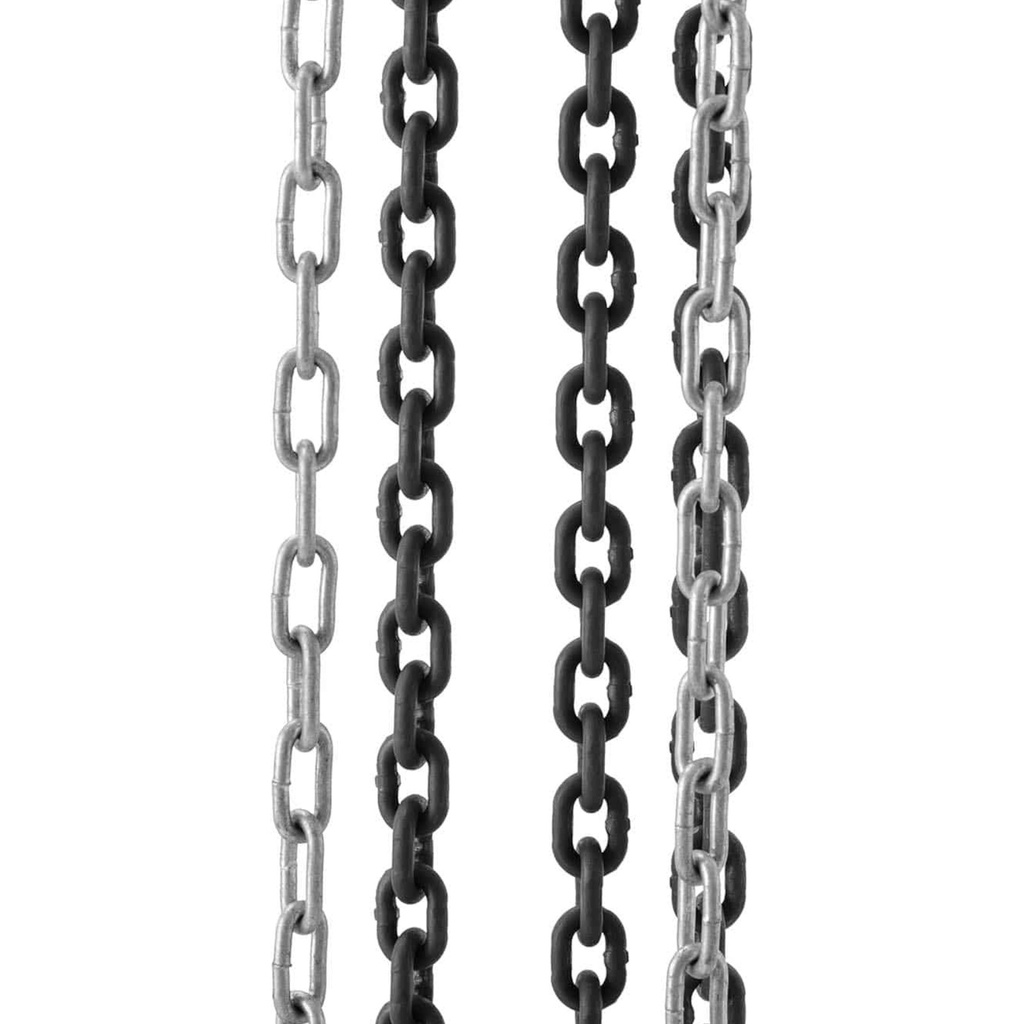

Steinberg Systems brand chain winch allows you to safely lift objects weighing up to 1 ton in factories, workshops or construction sites. Manual operation allows you to use the equipment in places without access to electricity. The chain is made of steel, is sturdy and has 6mm links. In addition, the chain is hardened and the nuts and screws are galvanized. The device allows you to lift objects to a height of 6 m. Three gears are responsible for optimal power transmission. A solid hook allows you to attach the winch to the ceiling. The second hook with a special fastener allows you to lift loads.

Product features:

• - Winch with breaking load of 1000 kg and lifting capacity of 2500 kg,
• - Lifting height of 6 m,
• - Manual operation without power source,
• - Galvanized bolts, nuts, screws and hardened chain,
• - Reliable brake holds the weight.

• - Part number - 10030776
• - Article condition - New
• - Model - SBS-FZ 1000P/6M
• - Chain diameter [mm] - 6
• - Hook material - Carbon steel (chrome plated)
• - Brake - Friction disc
• - Gear ratio - 1/8
• - Motor - Manual
• - Clutch - Gearbox
• - Material - Housing: low carbon steel, chain: hardened blackened steel
• - Permissible load [kg] - 2500
• - Gearbox - 3
• - Maximum load [kg] - 2500
• - Max. pull [kg] - 1000
• - Idle gear - No
• - Wireless remote control - No
• - Wired remote control - No
• - Overheating protection - No
• - Forward and reverse gear - No
• - Chain length [m] - 6
• - Dimensions (DxSxW) [cm] - 15 x 15 x 15
• - Weight [kg] - 15.8
• - Shipping dimensions (DxSxW) [cm] - 29 x 22.4 x 21
• - Shipping weight [kg] - 16.49

• - Chain winch
• - Operating instructions
