Manufacturer code: 10061101

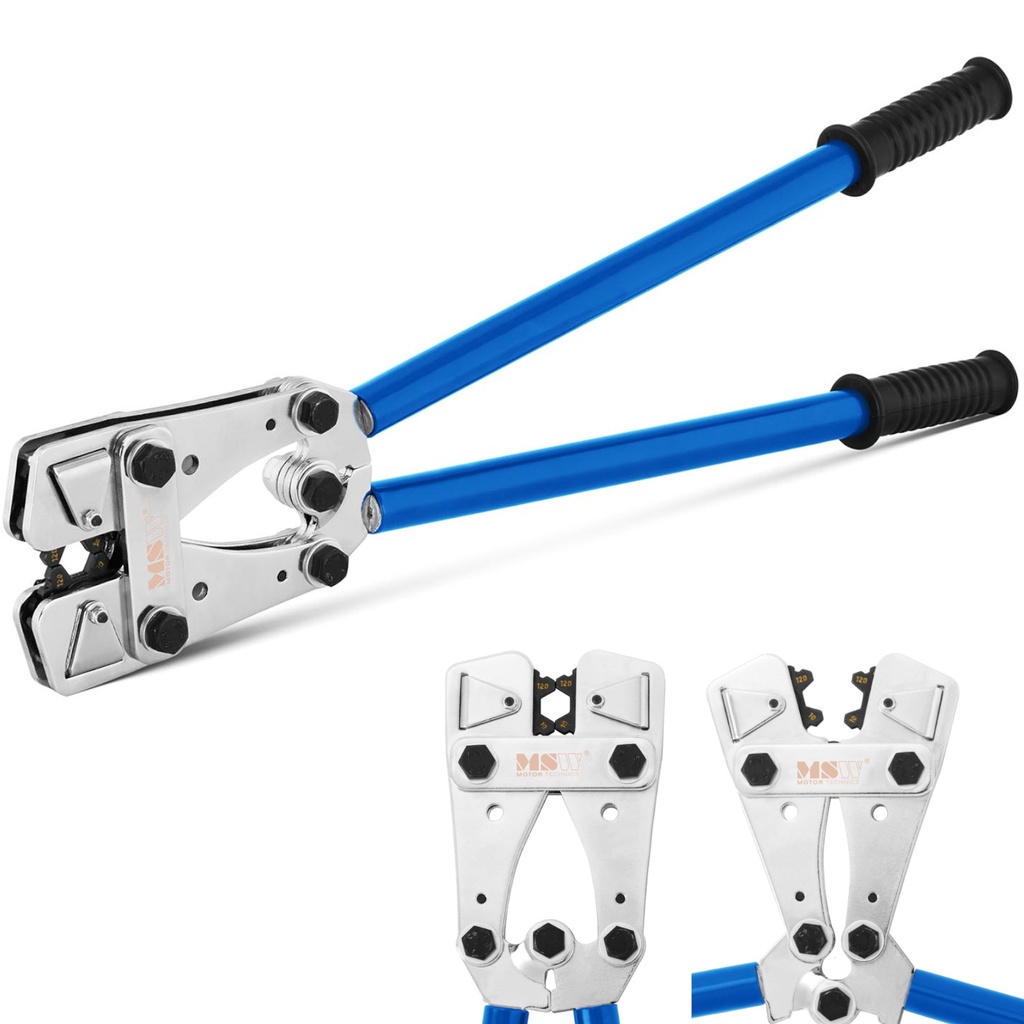

The MSW brand terminal crimper allows you to process copper and aluminum bushings connecting electrical wires. The crimping range is 6-120 mm. The construction of the crimper including the hexagonal die is made of type 400 Cr steel, is distinguished by a hardness of 42-45 HRC. In order to permanently connect two wires, it is enough to remove the protective layer from the cables, put a sleeve of the appropriate size on the end and crimp it with the pliers. The hexagonal die crimps the connector evenly on each side. Non-slip pads on the handles provide a firm grip on the tool.

Product features:

• - Hexagonal die,
• - Working range 6-120 mm2,
• - Hardness 42045 HRC,
• - Made of 40Cr steel.

• - Part number - 10061101
• - Article condition - New
• - Model - MSW-CTM-02
• - Material - Plastic, Steel
• - Color - Black, Blue
• - Crimper type - Hexagon
• - Hardness of crimps - 42-45 HRC
• - Crimping range - 6-120 mm2
• - Crimp material - 40 Cr
• - Dimensions (DxSxW) [cm] - 62.5 x 18 x 4.5
• - Weight [kg] - 3.95
• - Shipping dimensions (DxSxW) [cm] - 63.5 x 20.5 x 7
• - Shipping weight [kg] - 4.35

• - Cable lug crimper
• - Operating instructions
