Manufacturer code: 10062134

MSW brand rope winch allows you to effortlessly lift and move heavy loads in the warehouse or workshop. It is ideal for professional use in factories, industry, recycling plants or shipyards, and anywhere you need to move heavy loads. It is suitable for steel beams with a width of 68 - 110 mm. The 1350 W motor lifts loads weighing up to 400 kg to a height of 12 m. The lifting speed is 8 m/min. The 12 m long, 5.1 mm diameter steel rope can withstand even intensive use. With the crane, it is also possible to transport on a beam with bends, as long as the radius of the bend is at least 1 m. The crane moves at a speed of 0.96 km/h. After attaching the blocker, the lifting height is halved to 6 m and the lifting speed to 4 m/min. At the same time, its load increases to 800 kg. The device thus has twice the load capacity if a block is used. The included remote control allows control from a distance. For safety, the device stops in case of a power outage. The device is IP54-rated, resistant to dirt and water.

Product features:

• - 1350 W motor carries the load and is controlled by a wireless remote control,
• - Carrying capacity of up to 800 kg,
• - Carries loads at a speed of 8 m/min,
• - High-quality steel cable with a length of 12 m,
• - Ideal for warehouses, garages, workshops, hangars and anywhere heavy loads are transported.

• - Part number - 10062134
• - Article condition - New
• - Model - MSW-PROCAT-800NW
• - Material - Aluminum, Steel, Copper
• - Color - Blue
• - Voltage [V] - 230
• - IP degree of protection - IP54
• - Power [W] - 1350
• - Maximum forward speed [km/h] - 0.96
• - Motor power [W] - 1350
• - Downtime - S3 / 20% / 10 min
• - Maximum lifting speed - 8 m/min
• - Load capacity - 400 kg
• - Rope length - 12 m
• - Maximum load - 800 kg
• - Maximum lifting height - 12 m
• - Rope diameter - 5.1 mm
• - Lifting speed without pulley - 8 m/mn
• - Load capacity without pulley - 400 kg
• - Minimum curve radius - 1 m
• - Lifting speed with pulley 4 m/mn
• - Load capacity with hook - 800 kg
• - Maximum lifting capacity without the block - 12 m
• - Maximum lifting capacity with hook - 6 m
• - Load hook - yes
• - Remote control - Yes
• - Emergency stop - Yes

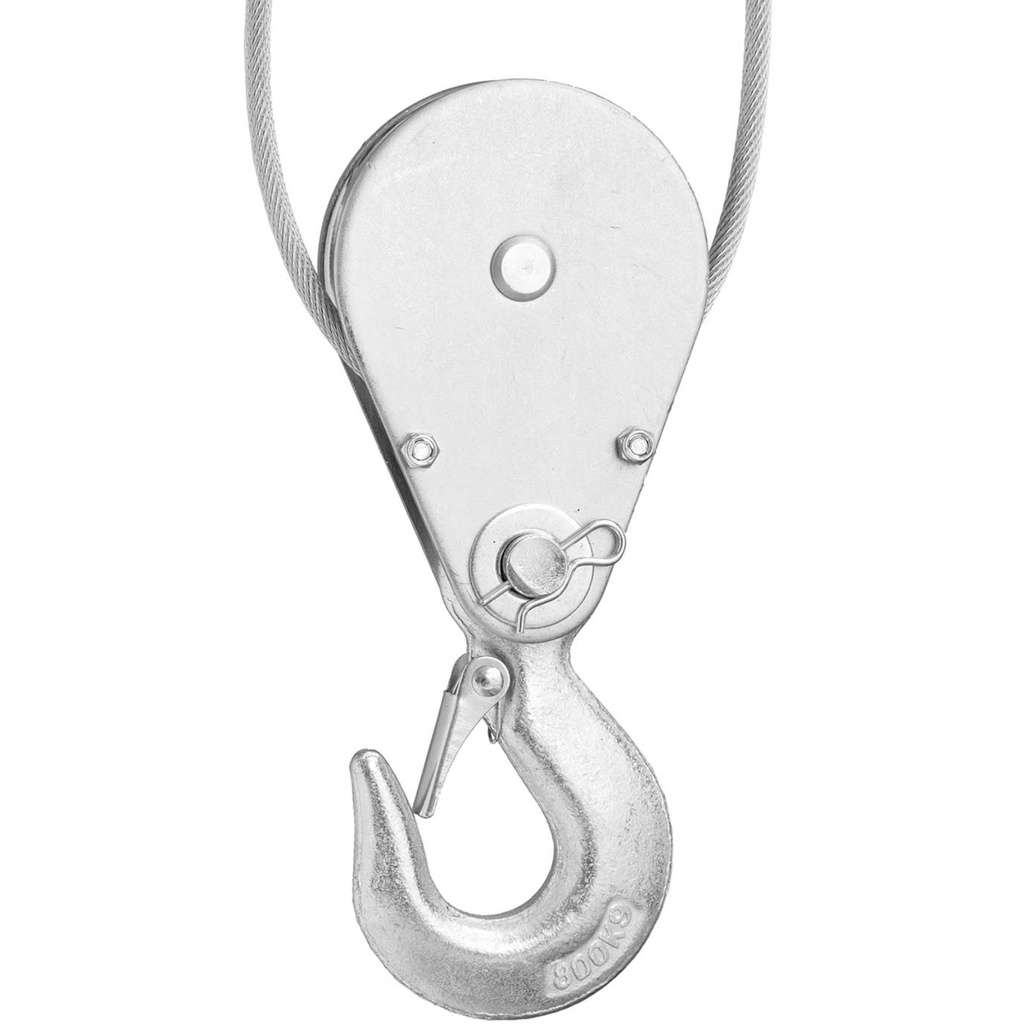

• - Pulley with hook - Yes
• - Clamp - attachment to profile or swing arm - Yes
• - Dimensions (DxSxW) - 41 x 15 x 23 cm
• - Weight - 33.7 kg
• - Dimensions and shipping weight (DxSxW) - BOX1 20 kg 50x30x21, BOX2 16 kg 36x30x22

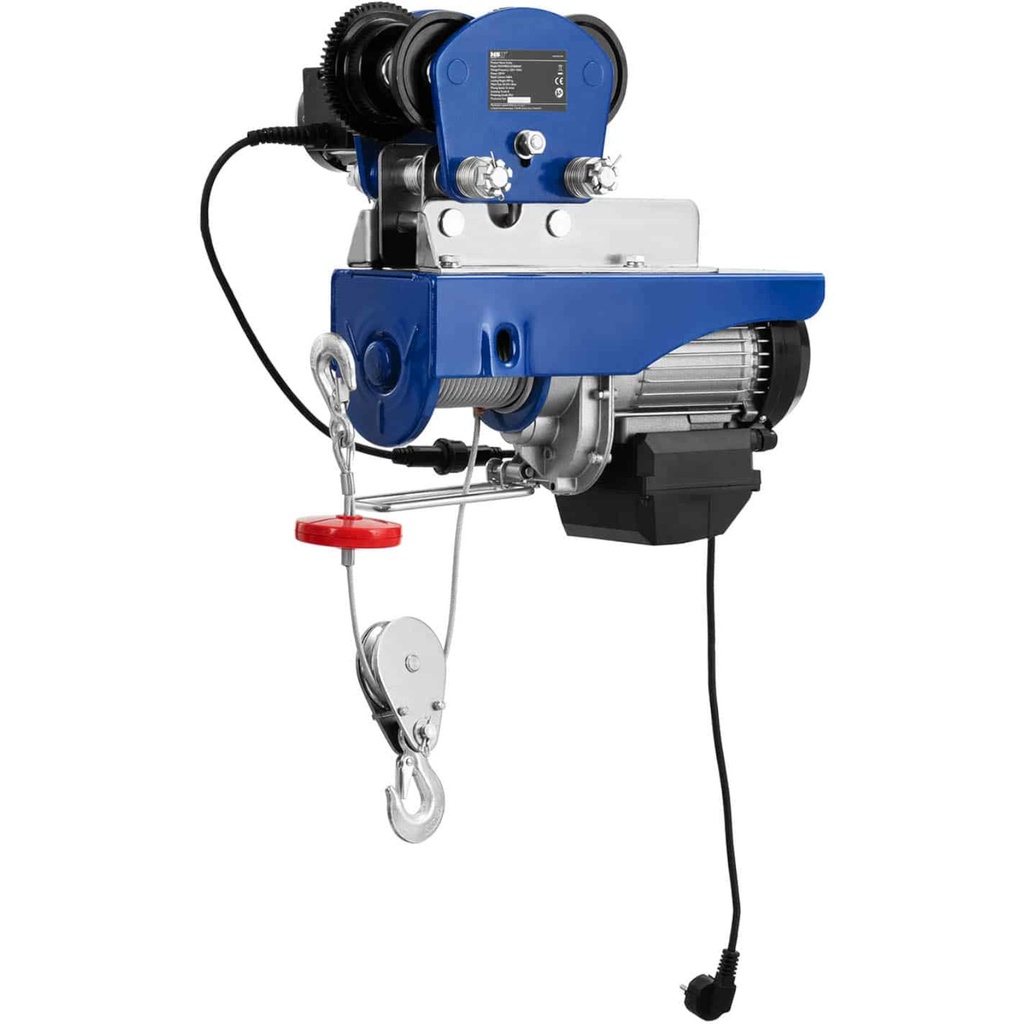

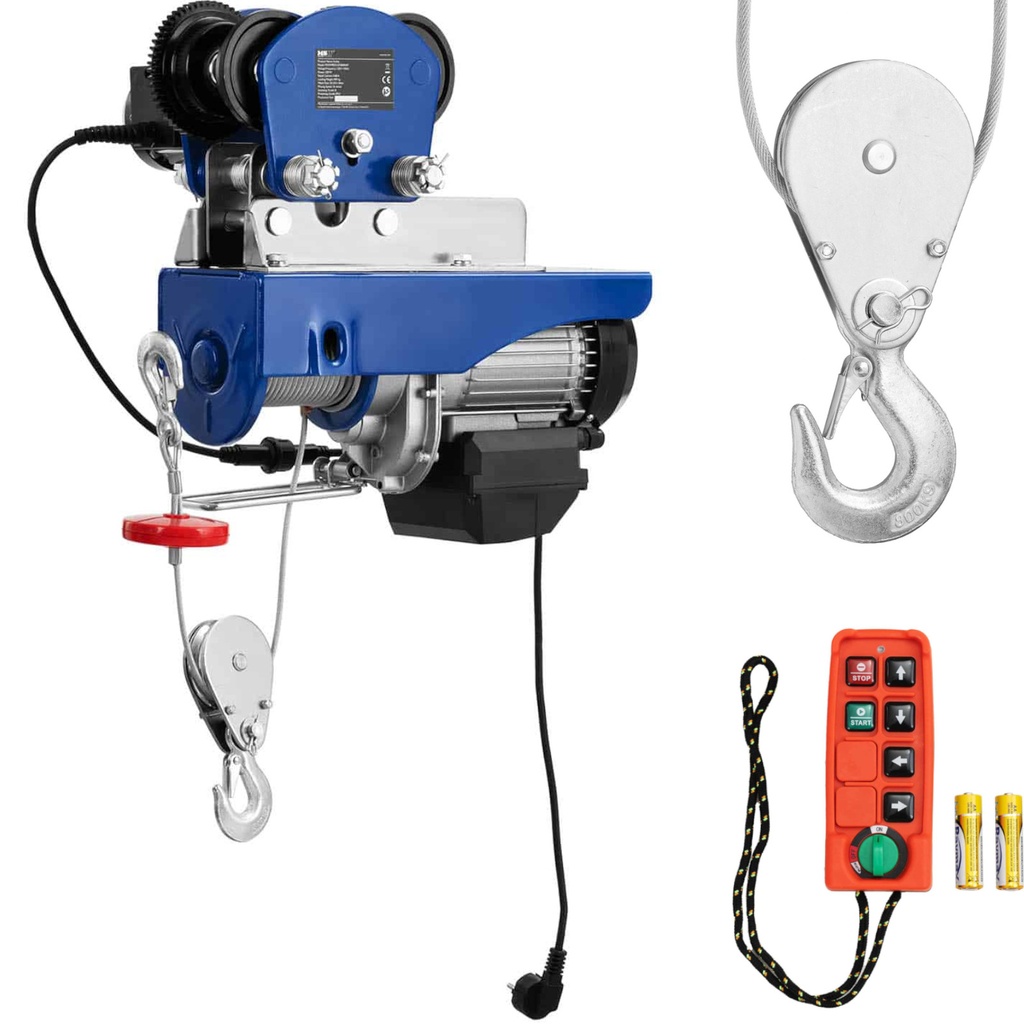

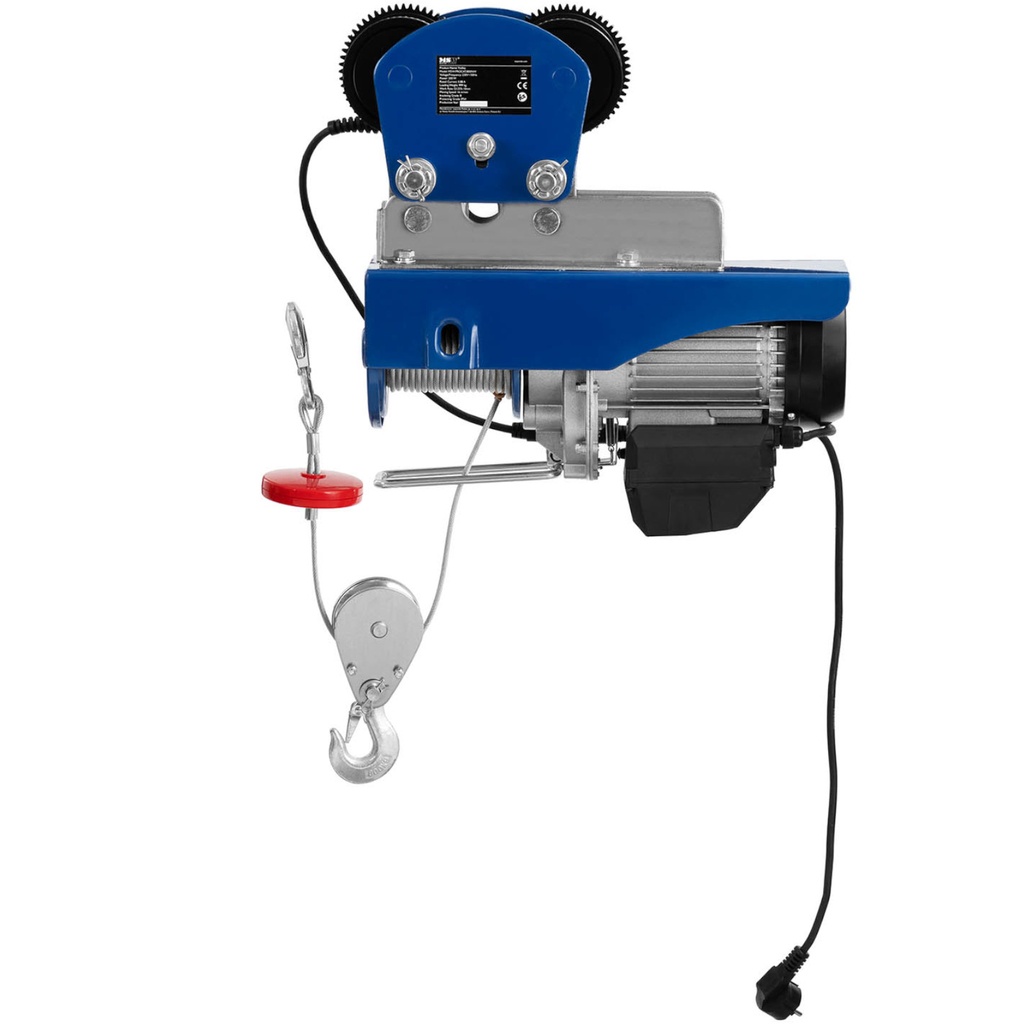

• - Electric winch with crane

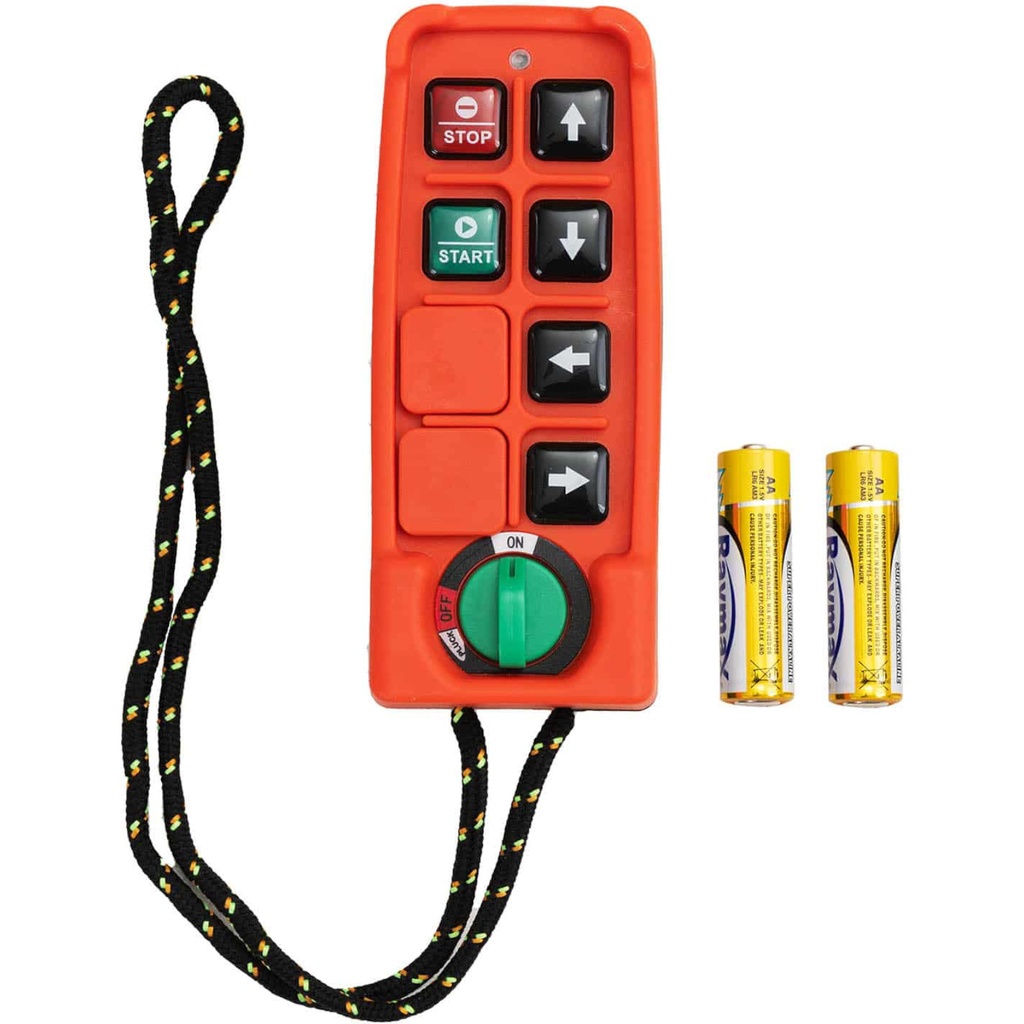

• - Remote control
