Manufacturer code: 10061531

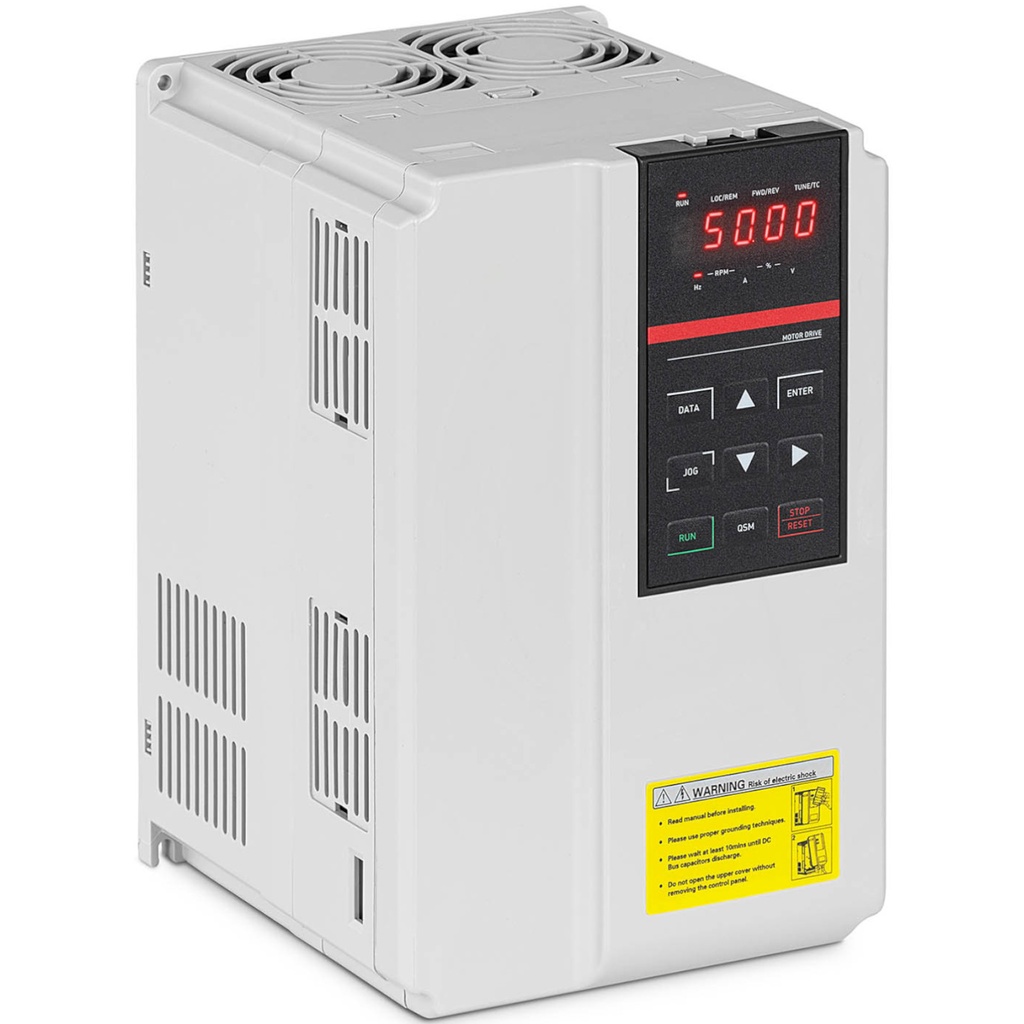

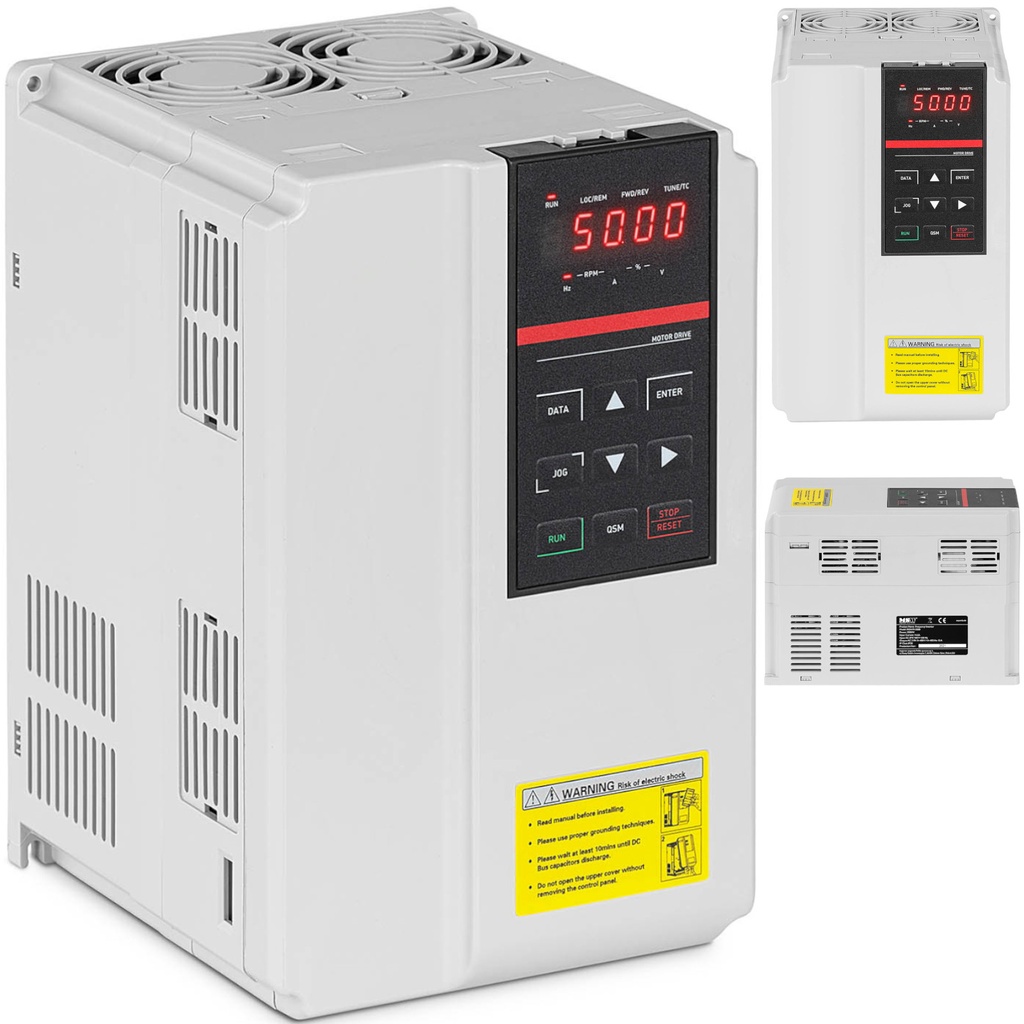

MSW brand inverter with power range up to 5.5 kW, 7.5 hp and 400 V three-phase voltage support is a precise, easy-to-use and versatile device. It is a high-performance general-purpose vector inverter with low speed and high torque. Use the device indoors and protect it from direct sunlight, dust, corrosive and flammable gases, oil mist, steam, water, salt, etc. The 400V three-phase inverter has speed sensor vector control, sensorless vector control and V/F control. It also supports V/F separation control. Easy control of settings is provided by an LED display. The equipment is equipped with a brake. The 5.5 kW motor has a number of protections, including overheating protection, an optional multifunction card and analog input A l 3. Motor temperature sensor input is allowed. The carrier frequency can be adjusted automatically according to the load characteristics. The frequency converter has linear or S-curve acceleration and deceleration and four types of acceleration and deceleration time (0.0-6500.0 s). It can achieve an operating speed of up to 16 segments with its built-in PLC or control terminal. Automatic voltage regulation means that when the line voltage changes, the output voltage can still be kept constant (13 A). Automatic current and voltage limitation during operation prevents shutdown due to overcurrent or overvoltage. Automatic torque limitation avoids overcurrent shutdowns; torque control can be done in closed-loop vector mode.

Product features:

• - 5.5 kW, 7.5 hp motor with 400 V three-phase voltage support,
• - Precision vector control (with and without sensor) and V/F control for optimum torque curve,

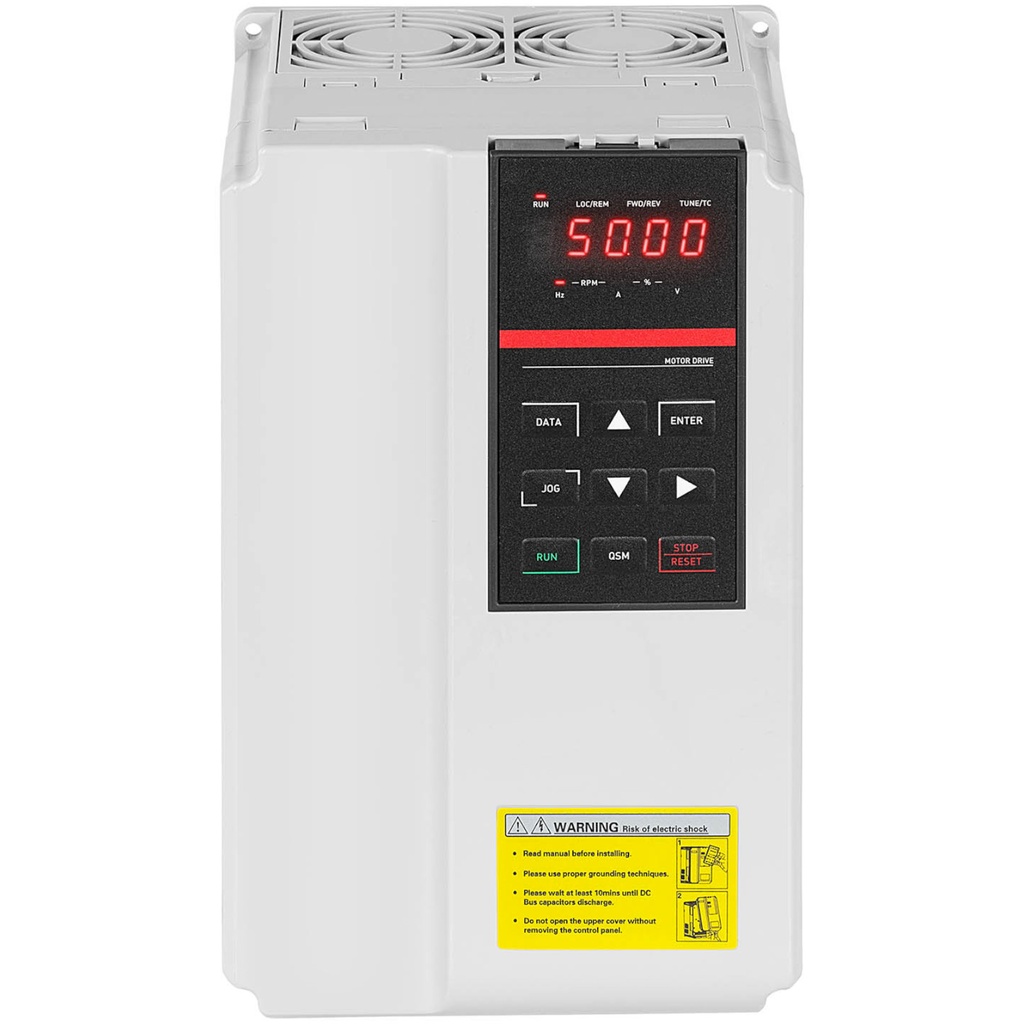

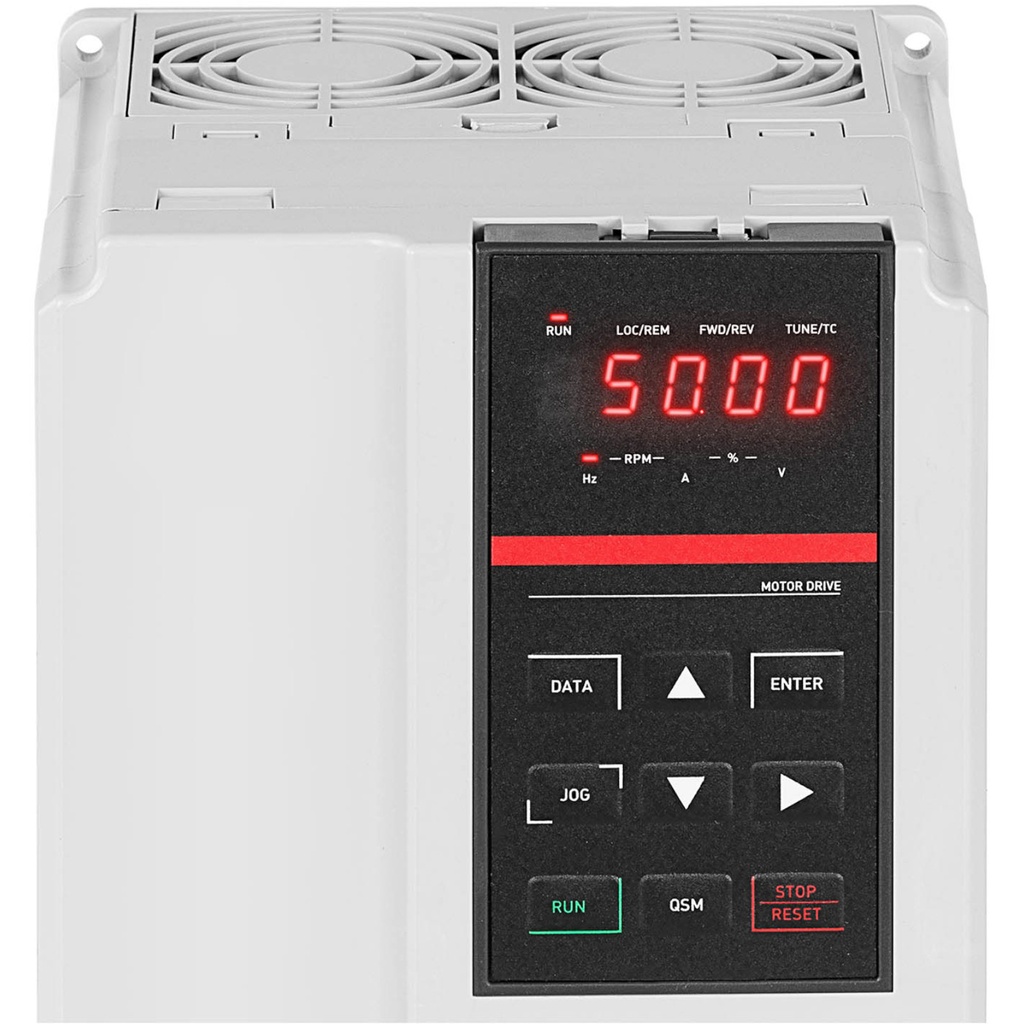

• - LED display for uncomplicated setup and control,
• - Various interfaces and extensive configuration parameters for a wide range of applications,
• - Safe thanks to protection against overheating, overvoltage, under-voltage, overcurrent, overload and short-circuit protects motors.

• - Part number - 10061531
• - Article condition - New

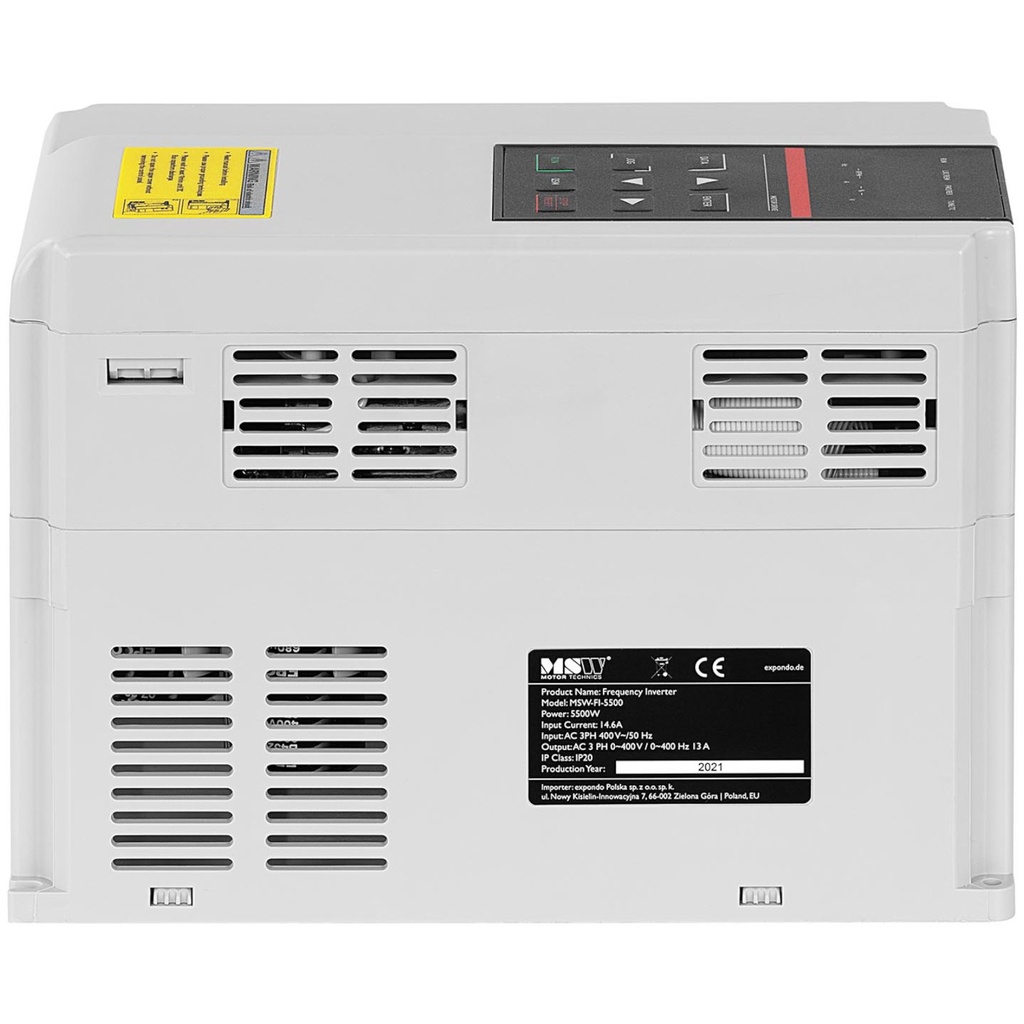

• - Model - MSW-FI-5500
• - Acceleration and deceleration curve - Linear acceleration and deceleration or according to S-curve, four types of acceleration and deceleration time 0.0 ~ 6500.0 s, acceleration and deceleration time range 0.0 ~ 6500.0 s
• - Accuracy of digital adjustment [Hz] - 0.01
• - Current value [%] - 0.0-100
• - Braking time - Braking time 0.0 s ~ 36.0 s
• - Carrier frequency - 0.5 kHz ~ 16 kHz
• - Control mode - Open loop vector control (SVC) V/F, closed loop vector control (FVC) V/F control.
• - Ambient temperature [°C] - 10 - 40
• - DC braking frequency - 0.00 Hz ~ maximum frequency
• - Key lock - Yes
• - IP degree of protection - 20
• - Input current [A] - 14.6
• - Frequency [Hz] - 50-60
• - Operating humidity [%] - Less than 95%.
• - Output current [A] - 13
• - Overload protection - Yes
• - Motor - 5.5 kW, 7.5 hp
• - Motor overheating protection - Optional multifunction card, analog input A l 3, motor temperature sensor input is acceptable
• - Short circuit protection - Yes
• - Protection against exceeding the maximum current - Yes
• - Protection against overheating - Yes
• - Overload capability - Type G machine: 150% of rated current 60 s; 180% of rated current 3S machine, P machine: 120% of rated current 60 s; 150% of rated current 3S machine
• - Display - LED
• - Maximum frequency - 0~300 Hz vector control, 0~3200 Hz V/F control
• - Spot frequency range [Hz] - 0.00-50.00
• - Voltage [V] - 400
• - Spot acceleration and deceleration time [s] - 0.0-6500.0
• - Power [W] - 5500
• - Power [W] - 7.5
• - Over-voltage protection - Yes
• - PLC for multi-speed operation - Operating speed up to 16 segments with built-in PLC or control terminal.
• - Simulation control - Maximum frequency x 0.025%
• - Torque control precision - + 0.5% (FVC)
• - Storage temperature [°C] - 20-60
• - Torque lift - Automatic torque lift; manual torque lift 0.1% ~ 30.0%
• - Speed range - 1:100 (SVC) 1:1000 (FVC)
• - V/F separation - Full separation, half-separation
• - V/F curve - V/F three ways: linear type; multipoint type; N power V/F curve.
• - Time control function [min] - 0.0-6500.0
• - Starting torque - Machine G: 0.5 Hz / 150% (SVC); 0 Hz / 180% (FVC), Machine P: 0.5 Hz / 100%
• - Constant speed accuracy - +0.5% (SVC) ± 0.02% (FVC)
• - Undervoltage protection - Yes
• - Dimensions (DxSxW) - 25 x 16 x 17 cm
• - Weight - 3.3 kg
• - Shipping dimensions (DxSxW) - 29 x 24 x 25 cm
• - Shipping weight - 3.8 kg

• - Frequency converter
• - No plug included
