Manufacturer name: S-LS-23
Manufacturer number: 10020145

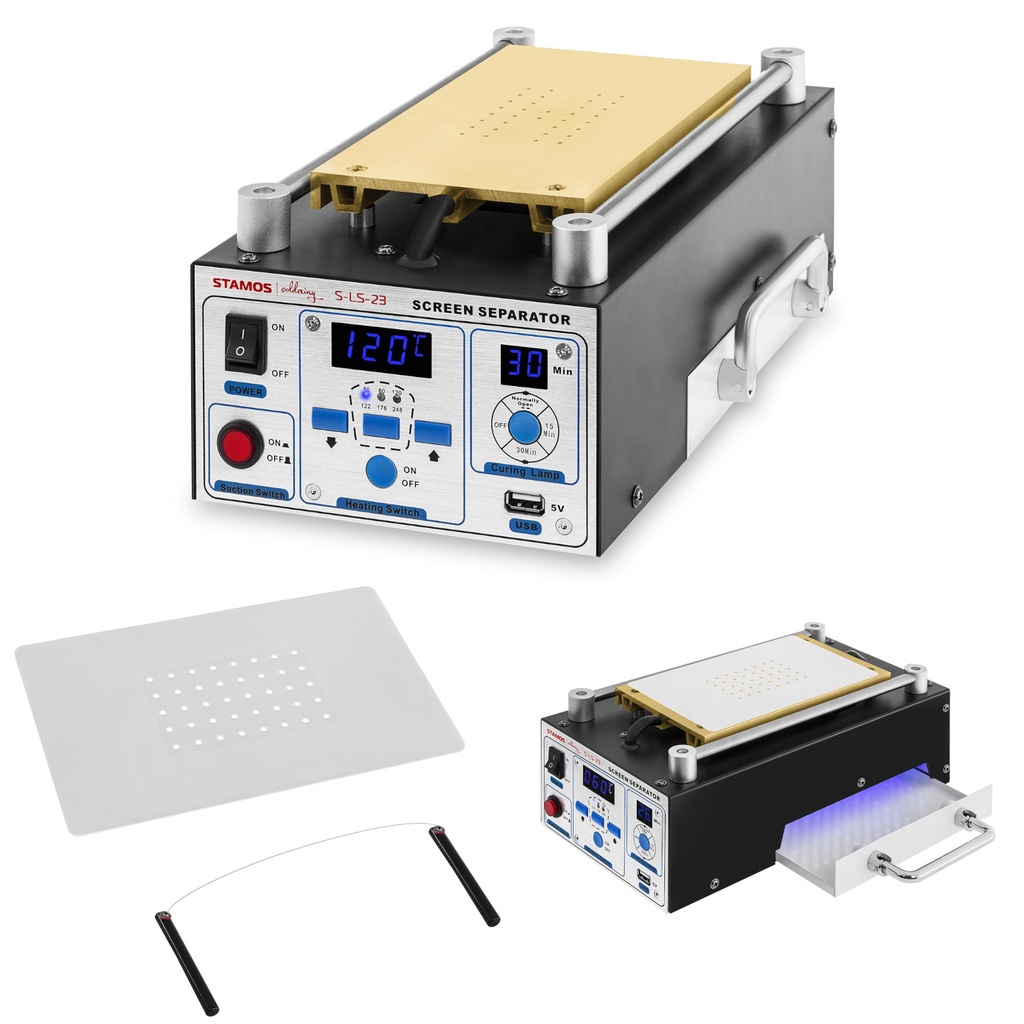

The LCD separator from Stamos Soldering will prove useful in repairing touch screens of equipment up to 8 inches in size, such as tablets and smartphones. The S-LS-23 model features a vacuum suction plate (14 W, 0.05 Mpa) for stability during operation. The temperature is adjustable in 3 selectable modes: 50, 80 or 120°C. The device has a 5V USB port and a UV lamp drawer for curing screens. The easy-to-read control panel is equipped with LED displays.

Features and functions:
- For devices up to 8 inches
- Drawer with UV lamp
- Vacuum gripper
- Temperature 50, 80 and 120°C
- 5V USB port
- LED displays

Technical specifications:

• - Model - S-LS-23
• - Part No. - 10020145
• - Article condition - New
• - Voltage - 230 V / 50 Hz
• - Power - 370 W
• - Temperature range - 50 - 120°C
• - Temperature stability - ±2°C
• - UV lamp power - 16 W
• - Intake pressure - 0.05 Mpa
• - Dimensions of the aluminum plate - 20 x 11 cm
• - USB output power - 5 V, 1 A
• - Aluminum grounding - < 2Ω
• - Display - LED
• - Dimensions (DxSxW) - 31 x 17 x 12.5 cm
• - Weight - 3.25 kg
• - Shipping dimensions (DxSxW) - 38 x 21 x 18 cm
• - Shipping weight - 3.7 kg
