Manufacturer code: 10030665

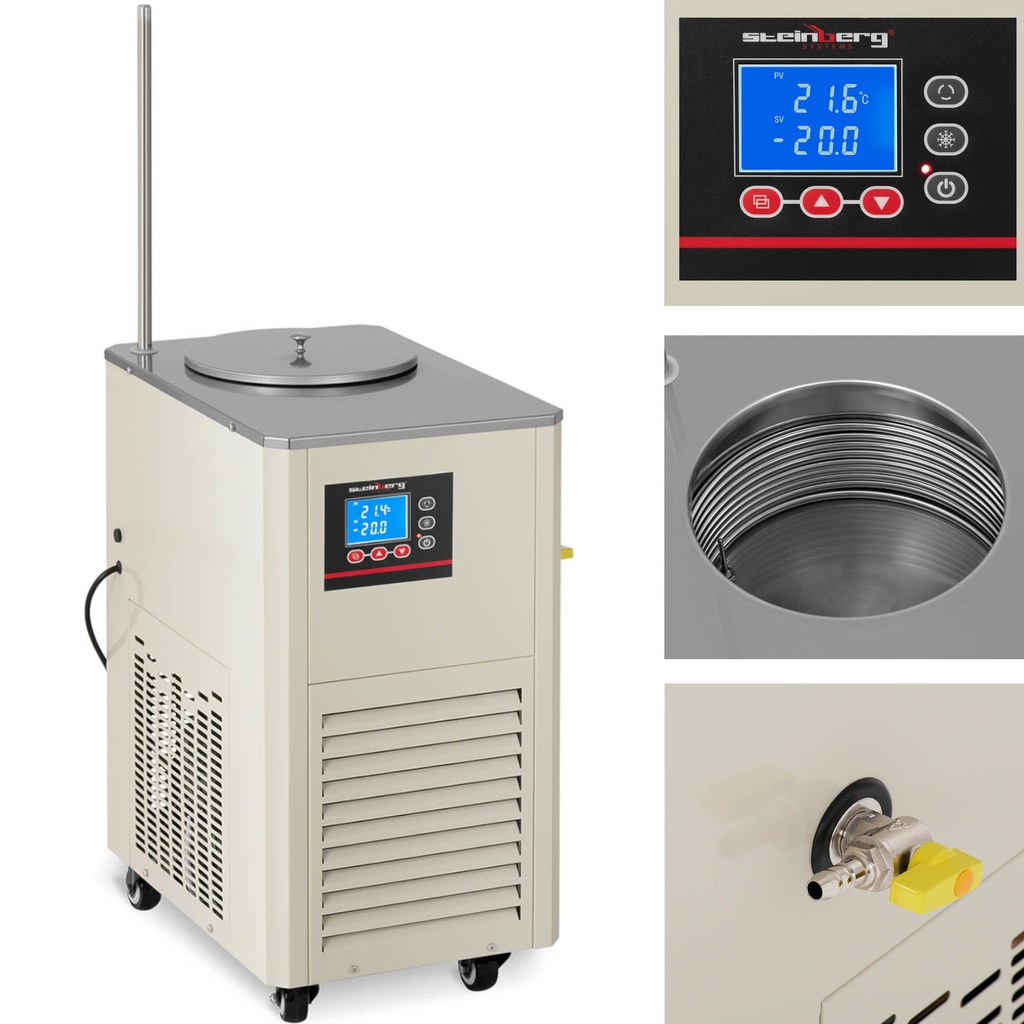

The cooling circulator by Steinberg Systems is a high-quality laboratory device for internal and external temperature control. The equipment can be connected to electron microscope, rotary vacuum distiller or glass reactor, among others. It is also suitable for cooling lasers and water-jacketed incubators. The high accuracy of the control is due to the digital PID microprocessor control, which increases the heating/cooling level depending on the temperature. A PT100-type thermocouple was also used. As a result, a precision of +/-2°C was achieved. Convenient adjustment in the range of -20 til 20°C is possible with the LCD display. The stainless steel tank is easy to keep clean. In addition, protection functions against rust and coolant contamination have been applied.

Product features:

• - Microprocessor-controlled PID controller,
• - Constant temperature with +/-2°C accuracy,
• - LCD display,
• - Stainless steel tank,
• - Lowest temperature down to -20°C,
• - Compact design,
• - Protection against overheating.

• - Part number - 10030665
• - Item condition - New
• - Manufacturer - Steinberg Systems
• - Model - SBS-LCC-5000
• - Voltage [V] - 230
• - Display - LCD
• - Operating instructions - Yes
• - Protection against overheating - Yes
• - Tank dimensions [cm] - ⌀250x130
• - Temperature accuracy [°C] - +/-2
• - Protection against exceeding the maximum current - Yes
• - Temperature range [°C] - -20 til 20
• - Current [A] - 4.2
• - Material - 304 stainless steel / Q235
• - Operating temperature range [°C] - ≤25
• - Capacity [l] - 5
• - Frequency [Hz] - 50/60
• - Relative humidity [%] - ≤60
• - Power compressor [W] - 726
• - Circulation pump power [W] - 100
• - Circulation pump flow rate [l/min] - 20
• - Cooling capacity [W] - 10°C-1230 W, 0°C-1150 W, -10°C-1009 W, -20°C-580 W
• - Circulation pump lift [m] - 5-7
• - Lowest temperature [°C] - -20
• - Delayed start - Yes
• - Dimensions (DxSxW) [cm] - 48 x 41 x 100
• - Weight [kg] - 40
• - Shipping dimensions (DxSxW) [cm] - 57 x 42 x 80
• - Shipping weight [kg] - 47

• - Cooling circulator,
• - Tubes (1.87 + 1.83 m) - 2 pcs,
• - Valve,
• - Operating instructions.
