Manufacturer code: 10030661

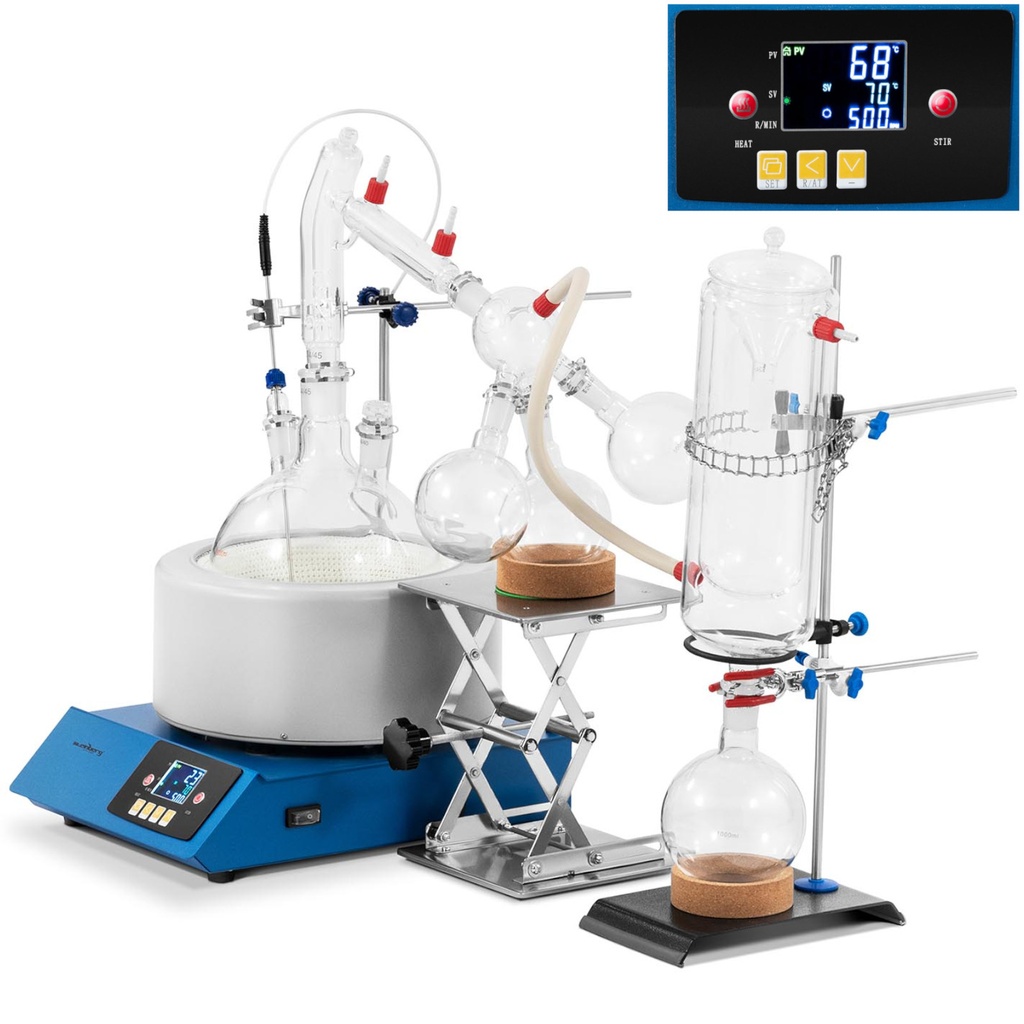

The distiller by Steinberg Systems will be ideal in laboratories for biochemical experiments, educational experiments, or research in the petroleum, metallurgy, food industry, etc. The most important components are made of transparent material which makes it possible to observe the process. The device has a power of 1100 watts, a capacity of 5 liters, it also uses a magnetic stirrer. It comes with a set of accessories: cold trap, flasks, rings, stands, etc. The easy-to-read panel with LED display allows you to easily adjust the stirring speed (up to 1800 rpm) and temperature (max. 380C). The housing is made of aluminum alloy, is resistant to high temperature and corrosion. An additional thermal insulation plate prevents heat loss and eliminates the risk of damage to electronic components.

Product features:

• - Completeness - a full set with extensive equipment,
• - Capacity - the tank will hold 5 l,
• - Efficiency - thanks to the speed up to 1800 rpm,
• - Power - suitable for temperatures up to 380C,
• - Intuitiveness - easy and precise operation thanks to the LED display.

• - Model - SBS-DK-1000
• - Voltage [V] - 230
• - Display - 230
• - Operating instructions - Yes
• - Volume of mixed substance [cm³] - N/A
• - Power [W] - 1100
• - Temperature range [°C] - 380
• - Housing material - Cast aluminum
• - Power [W] - 1100
• - Power cord [m] - 1.47
• - Capacity [l] - 5
• - Basket material - Alkali-free fiberglass, aluminum alloy, handmade
• - Maximum speed [rpm] - 1800
• - Dimensions (DxSxW) [cm] - 100 x 55 x 50
• - Weight [kg] - 32
• - Shipping dimensions (DxSxW) [cm] - 77 x 68 x 65
• - Shipping weight [kg] - 38.65

• - Distiller
• - Handle
• - Screw clamp
• - K-type connector
• - Internal thermo evaporator
• - Agitator
• - Clip
• - Round flask (3 neck), 34/45 5000ml
• - Fractional distillation head with vacuum port
• - Thermometer adapter, 2 x 14/20
• - Receiving flask, 34/451000 ml
• - Receiver, 24/40 250 ml
• - Round flask, 3 x 24/40 500ml
• - Cast iron stand, 250x160mm
• - Chain clamp, 40-145mm
• - Stand with stainless steel platform, 200x200mm
• - Connectors, 5 x GL-14
• - Plastic clips, 6x24
• - Heating jacket with mixing function,5000ml
• - Cold trap, 24/40
• - Bosshead connector, 16mm
• - Iron ring, 100 mm
• - Cork ring, 1000-3000 ml
• - Cork ring, 500 ml
• - Operating instructions
