Manufacturer code: 10280397

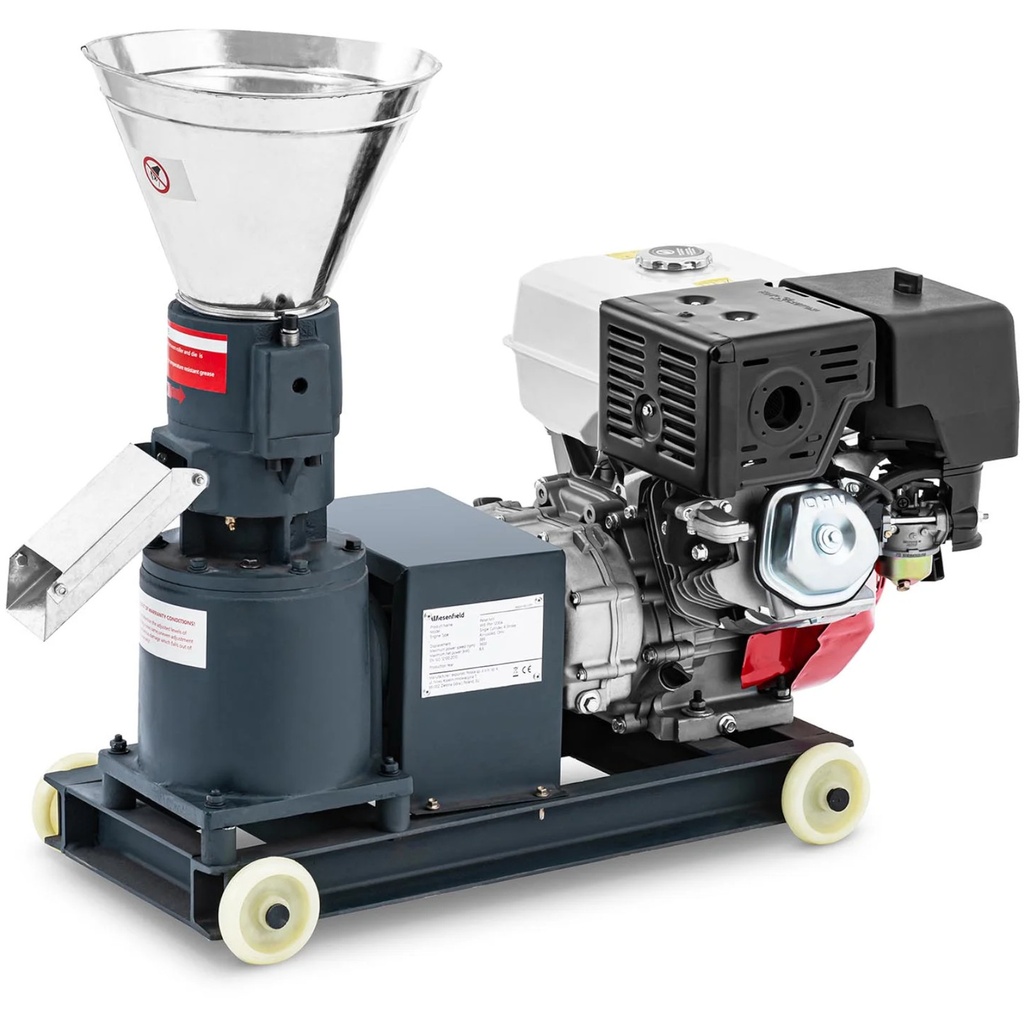

Wiesenfield pelletizer produces pellets for animal feed and fertilizer. The capacity when producing feed is up to 100 kg/h. The device allows you to compose animal feed yourself and dispense appropriate vitamins and minerals into fertilizer sticks or feed pellets produced from corn, oats or hay. The pelletizer should be heated to 60 to 80°C using a vacuum heat treatment. This will prevent the surfaces from being damaged and deformed during heating. The mass is extruded through the use of a massive roller that pushes the contents through a 120 mm diameter die. The result is a highly compressed, durable pellet with a diameter of 6 mm. An ejection trough facilitates direct bag filling. The control element on the machine is clear and intuitive. The pelletizer has an emergency stop switch to guarantee safety during use. The mobility of the device is ensured by solid wheels. The pelletizer has a gasoline engine with a power of 7.5 HP. NOTE!!! When purchasing the pelletizer, you should also order a pellet binder (No. 10530000). The built-in dies and rollers can be used up to 300 hours. After the recommended service time, the parts should be replaced immediately.

Product Features:

• - Produces pellets for animal feed or fertilizer,
• - Processes 60 - 100 kg/h of feed for 8 - 10 h,
• - 7.5 hp gasoline engine provides 1800 rpm,
• - Pellets retain a longer life by being heated to 60 - 80°C,
• - Intuitive, compact, mobile and easy to operate.

• - Part number - 10280397
• - Article condition - New
• - Model - WIE-PM-1200A
• - Material - Steel
• - Continuous working time [h] - 8 - 10
• - Size of die holes [mm] - Ø 6
• - Die diameter [mm] - 120
• - Emergency stop - Yes
• - Engine type - BS188F
• - Fuel type - Petrol E10
• - Feed production capacity [kg/h] - 60 - 100
• - Operating temperature range [°C] - 60-80
• - Speed [rpm] - 1800
• - Power take-off supply - 7.5
• - Wheel size [mm] - Ø 100 x 25
• - Dimensions (DxSxW) - 97 x 47.5 x 75 cm
• - Weight - 91.2 kg

• - WIE-PM-1200A pelletizer
• - Tank
• - Filling funnel
• - Control unit
• - Oil syringe
• - Installation tools (wrench, screwdriver, dowel)
• - Coverage
