Manufacturer code: 10280402

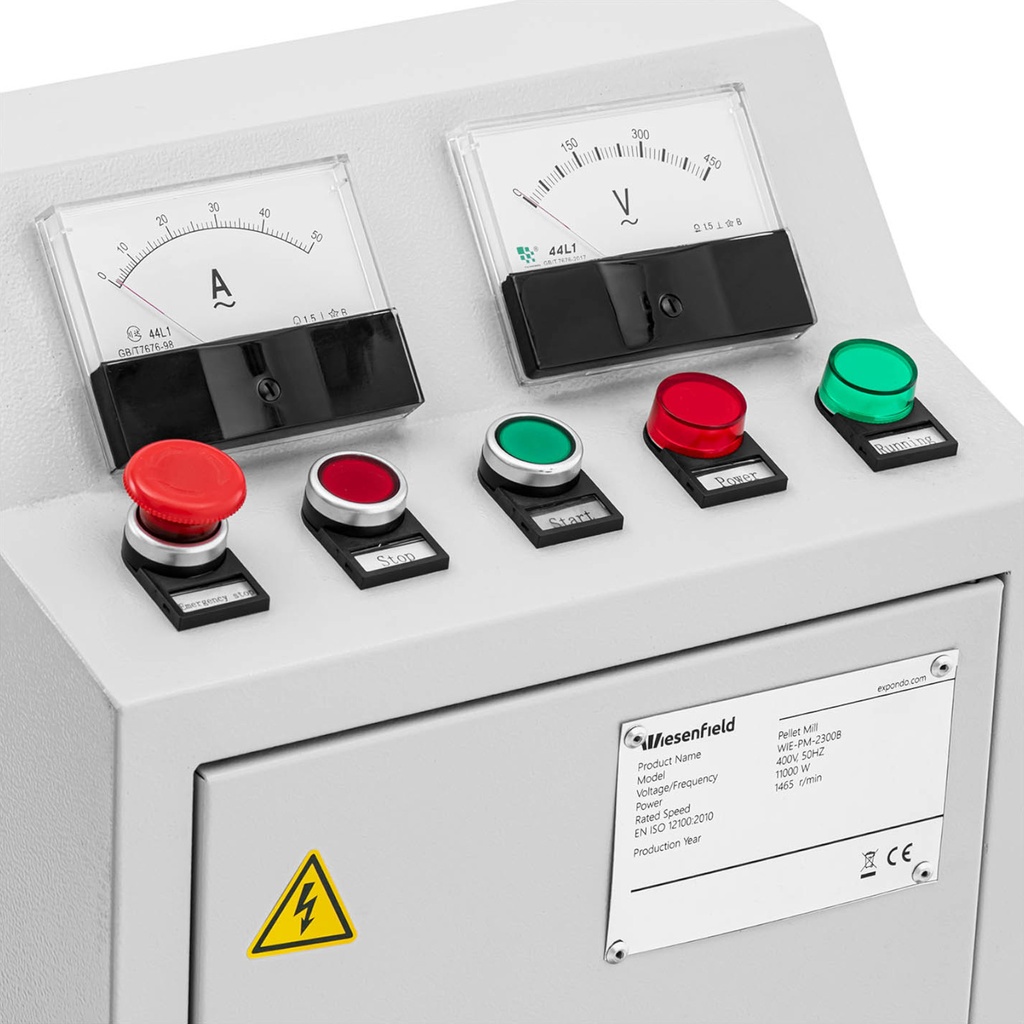

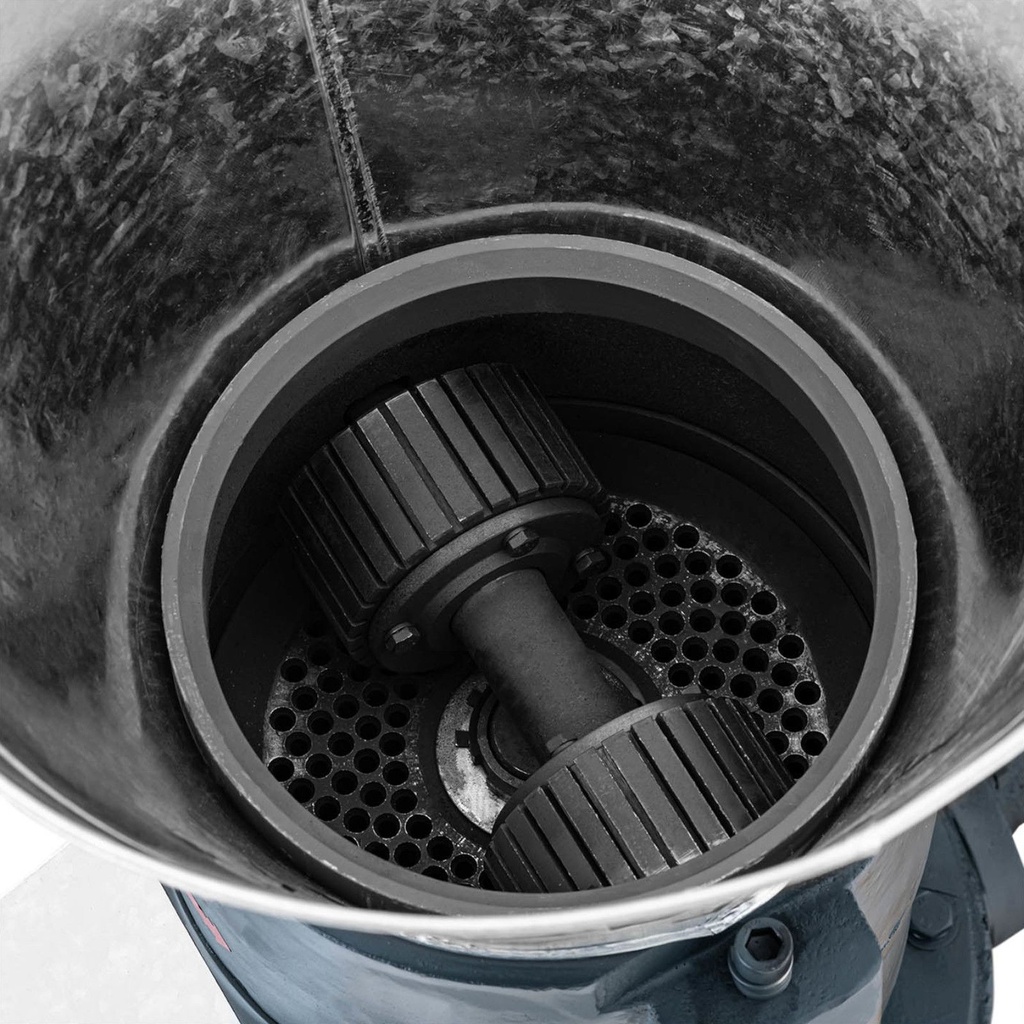

Wiesenfield pelletizer is designed to produce pellets for animal feed, fertilization and heating. The capacity for feed production is up to 400 kg/h in the case of woodchip processing - up to 200kg/h. The device allows you to compose animal feed yourself and dose appropriate vitamins and minerals to fertilizer sticks or feed pellets produced from corn, oats or hay. By processing wood chips into sawdust, environmentally friendly pellets can be produced. The pelletizer should be heated to 60 to 80°C using a vacuum heat treatment. This will prevent the surfaces from being damaged and deformed during heating. The mass is extruded through the use of a massive roller that pushes the contents through a 230 mm diameter die. The result is a pellet with a diameter of 6 mm. An ejection trough facilitates direct filling of the bags. The unit's control cabinet is clear and intuitive. The pelletizer has an emergency stop switch to guarantee safety during use. The unit is powered by 3-phase 400 V, and is supplied without a connection plug. Mobility of the device is provided by solid wheels. ATTENTION !!! When purchasing a pellet machine, you must also order a pellet binder(No. 10530000). The built-in dies and rollers can be used for up to 300 hours. After the recommended service time, the parts must be replaced immediately.

Product Features:

• - Produces pellets for animal feed, fertilizer and heating,
• - Processes 300 - 400 kg/h of feed or 120 - 200 kg/h of wood chips,
• - The 11,000-watt motor provides a speed of 1465 rpm,
• - Pellets retain a longer life by being heated to 60 to 80°C,
• - Intuitive, compact, mobile and easy to operate.

• - Part number - 10280402
• - Article condition - New
• - Model - WIE-PM-2300B
• - Material - Steel
• - Continuous working time [h] - 8 - 10
• - Size of die holes [mm] - Ø 6
• - Die diameter [mm] - 230
• - Emergency stop - Yes
• - IP degree of protection - IP55 (motor), IP40 (control cabinet)
• - Feed production capacity [kg/h] - 300 - 400
• - Frequency [Hz] - 50/60
• - Operating temperature range [°C] - 60 - 80
• - Production capacity from sawdust [kg/h] - 120 - 200
• - Rotational speed [rpm] - 1465
• - Voltage [V] - 400
• - Power [W] - 11000
• - Size of wheels [mm] - Ø 180 x 32

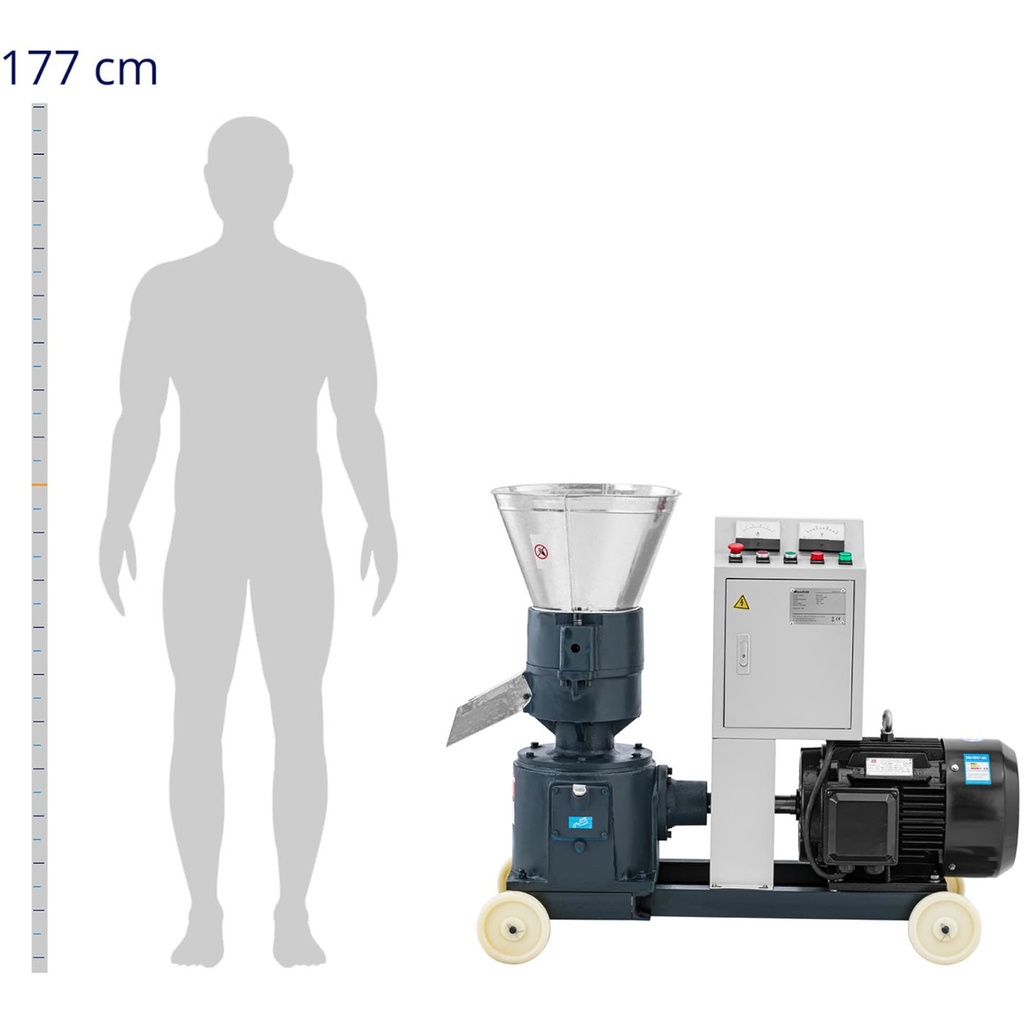

• - Dimensions (DxSxW) - 127 x 43 x 101 cm
• - Weight - 218 kg
• - Shipping dimensions (DxSxW) - 52 x 120 x 105 cm
• - Shipping weight - 238 kg

• - Pelletizer
• - Tank
• - Filling funnel
• - Control unit
• - Oil syringe
• - Installation tools (wrench, screwdriver, dowel)
• - Cover
• - Delivery WITHOUT power plug
