Manufacturer code: 10021418

The S-PLASMA 60U plasma cutter has a clear control panel with LED screen and pressure gauge instantly informs you about the parameters. With the right pressure and cutting current set according to your needs, you can quickly and precisely cut various metals such as steel, stainless steel, copper or aluminum. The device's current is set with a dial from 20 to 65 A. All values are shown on an easy-to-read LED display. At maximum power values, the plasma cutter cuts parts up to 22 mm thick. The air pressure is controlled by a regulator equipped with a locking mechanism. This prevents accidental changes in compressed air pressure. The current value is read out on an integrated pressure gauge. Thanks to the optimally selected combination of air pressure and current, clean cuts with high precision are achieved. The IGBT inverter not only provides a high-power voltage output via PWM technology, but also reduces weight and dimensions to a minimum. In this way, you can make even more efficient use of the handy cutter with a carrying handle. The device is useful for construction site work, workshop repairs or maintenance work. The burner is ignited with a high frequency, so you can cut grates and gratings with a pilot arc. To avoid oxidation or deformation of the workpiece after cutting, choose a gas discharge time of 5 or 10 seconds. The air discharge further cools the torch and prevents damage. The basic unit is equipped with a powerful fan to prevent overheating. It is recommended to connect the Stamos Germany plasma cutter to a 400 V power source with a 2 m cable. This allows it to be used as an efficient plasma cutting machine in automotive workshops, commercial metalworking companies and industrial production. In addition, the plasma cutter also supports do-it-yourselfers in demanding renovation and repair projects.

Note: the device is supplied without a plug. To install it, contact a qualified electrician.

Product features:

• - Maximum cutting current of 65 A and 100% duty cycle,
• - Clear control panel with LED display, pressure gauge and dial,
• - Efficient and modern IGBT inverter and HF ignition,
• - Precise, fast and non-deforming cutting for materials up to 22 mm thick,
• - Compact size and carrying handle.

• - Part number - 10021418
• - Article condition - New
• - Model - S-PLASMA 60U
• - ABS material - Steel
• - Operating air pressure [bar] - 4-6
• - Cooling - Fan
• - Compressor parameters - >0.25 m³
• - Cutting width [mm] - ≤22
• - Efficiency [%] - 90
• - Grounding wire [m] - 2
• - Insulation class - F
• - IP degree of protection - IP21S
• - Maximum cutting current [A] - 65
• - Gas discharge time [s] - 5/10
• - Maximum thickness of cut [mm] - 22
• - Maximum input current [A] - 15
• - Maximum input current [A] - 8.6
• - Power cord [m] - 2
• - Power factor - 0.9
• - Voltage [V] - 400
• - Minimum cutting current [A] - 20
• - Plasma ignition - HF
• - Open circuit voltage [V] - 310
• - Duty cycle [%] - 100
• - Real input voltage [A] - 8.7
• - Dimensions (DxSxW) - 49 x 16 x 30 cm
• - Weight - 9.6 kg
• - Shipping dimensions (DxSxW) - 51.5 x 42 x 31 cm
• - Shipping weight - 13.5 kg

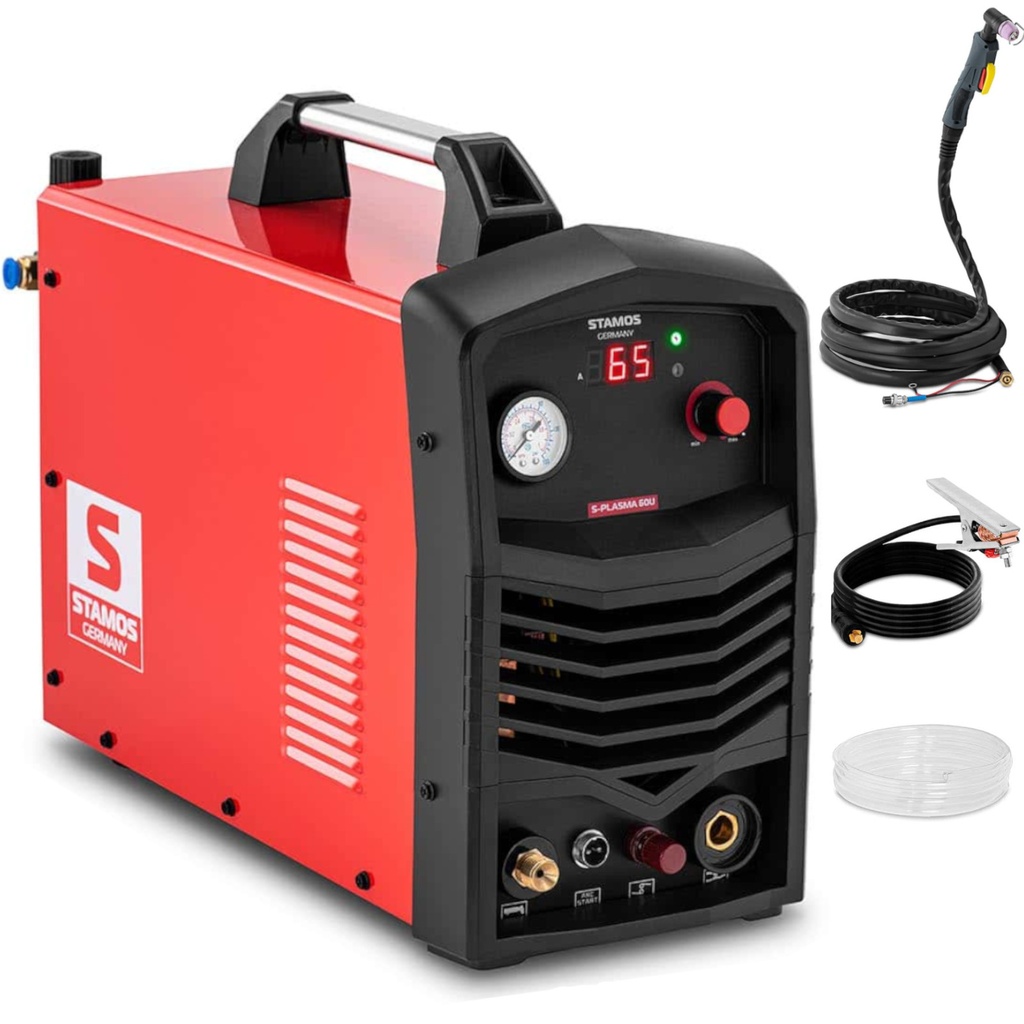

• - S-PLASMA 60U plasma cutter:
• - AG60 torch with wire harness (4 m)
• - Grounding clamp (2 m)
• - Pressure reducer
• - No plug included
