Manufacturer code: 10030663

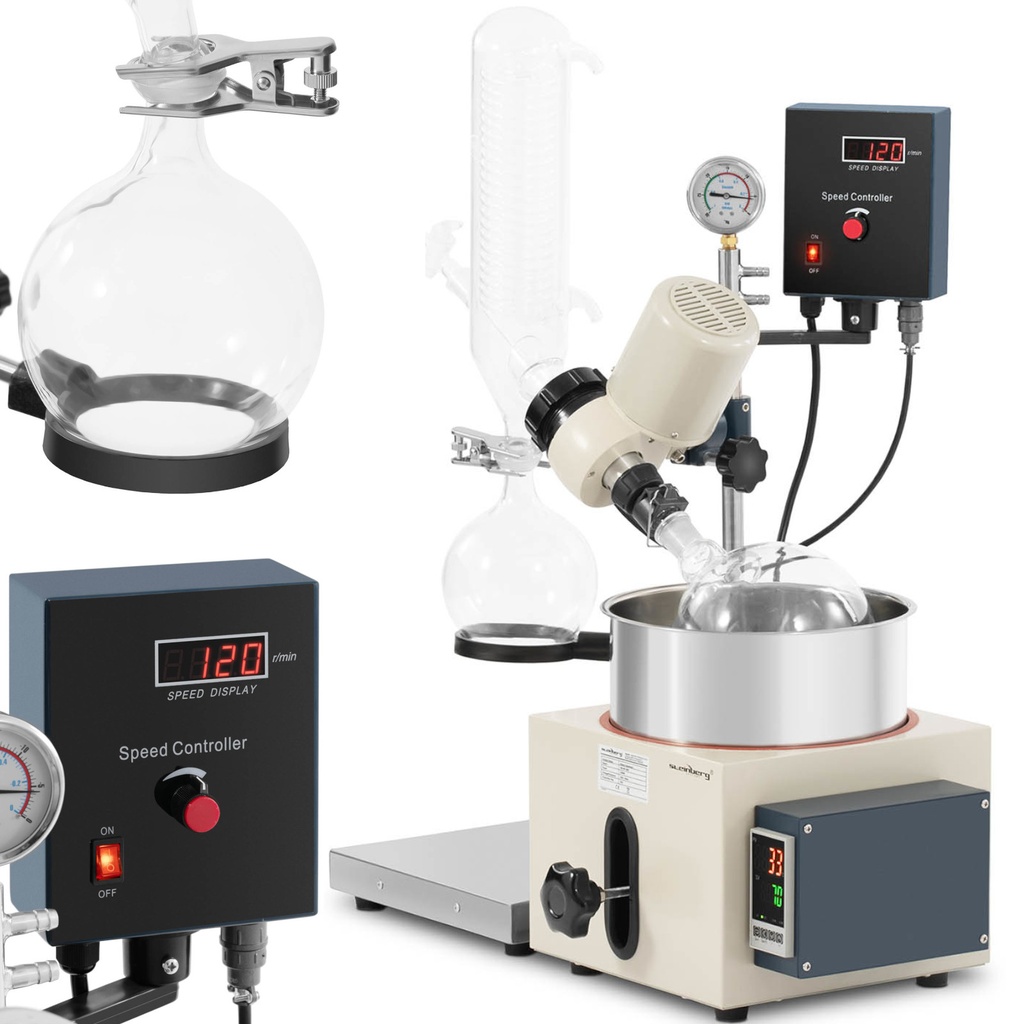

Steinberg Systems' vacuum evaporator is ideal for the laboratory, chemical, pharmaceutical or scientific research industries for evaporating solvent by heating under reduced pressure. It is particularly suitable for concentrating and purifying easily decomposed denatured biological products that do not easily react with various substances. The high vacuum level of 0.098 MPa ensures high efficiency of the equipment. The equipment is equipped with a vacuum controller. The temperature range is 0-99°C with an accuracy of +/-1°C. The operation of an efficient condenser translates into a high recovery rate. Digital displays work with the speed (0-120 rpm) and temperature of the heating bath, which facilitates control of the distillation process. The evaporator has a temperature limiter. The supply valve can use a continuous supply which provides a large condensing area. The bath is equipped with ergonomic carrying handles, as well as a manual jack for accurate flask positioning. The 40-watt motor is compact in size. It has an overload protection function. The stainless steel bath tank makes it easy to operate and maintain the vacuum evaporator.

Product features:

• - Efficiency - a large amount of distillate thanks to the 1L collection flask,
• - Accuracy - precise temperature setting,
• - Power - powerful motor ensures smooth operation,
• - Precision - constant speed for optimal results.

• - Model - SBS-RV-2000
• - Voltage [V] - 230
• - Temperature accuracy [°C] - +/-1
• - Temperature range [°C] - 0-99
• - Rotational speed [rpm] - 120
• - Material - SS304 bath material, combined bath material and Teflon + glass GG-17
• - Frequency [Hz] - 50
• - Motor power [W] - 40
• - Receiving flask [l] - 1
• - Rotating flask [l] - 5
• - Power of tub [W] - 1500
• - Capacity of the tub [l] - 5
• - Evaporation rate [l/h] - N/A
• - Lift [mm] - 120
• - Vacuum level [MPa] - 0.098
• - Air pipe - Length 678 mm, OD = 14.5 mm, ID = 8.5 mm
• - Dimensions (DxSxW) [cm] - 73 x 33 x 100
• - Weight [kg] - 25
• - Shipping dimensions (DxSxW) [cm] - 63 x 49 x 55
• - Shipping weight [kg] - 32

• - Vacuum evaporator
• - Main bracket - set
• - Motor - set
• - Water bath - set
• - Rotary flask 5 l
• - Reflecting flask 1 l
• - Glass tube
• - Supply valve 19#
• - Ø85 x 460 mm main condenser / ball mill clip
• - Oil seal Ø25 mm - set
• - Small PTFE washer Ø50 mm
• - Vacuum gauge
• - Vacuum lamp
• - Rotary washer - set
• - Receiving flask holder
• - PTFE cable - set
• - Condenser clip - set
• - Regulator
• - O-ring 43 mm
• - Hex key
• - Fuses - 2 pcs. (16 A and 3 A)
• - Screws - 5 pcs.
• - Operating instructions
