Manufacturer code: 10060950

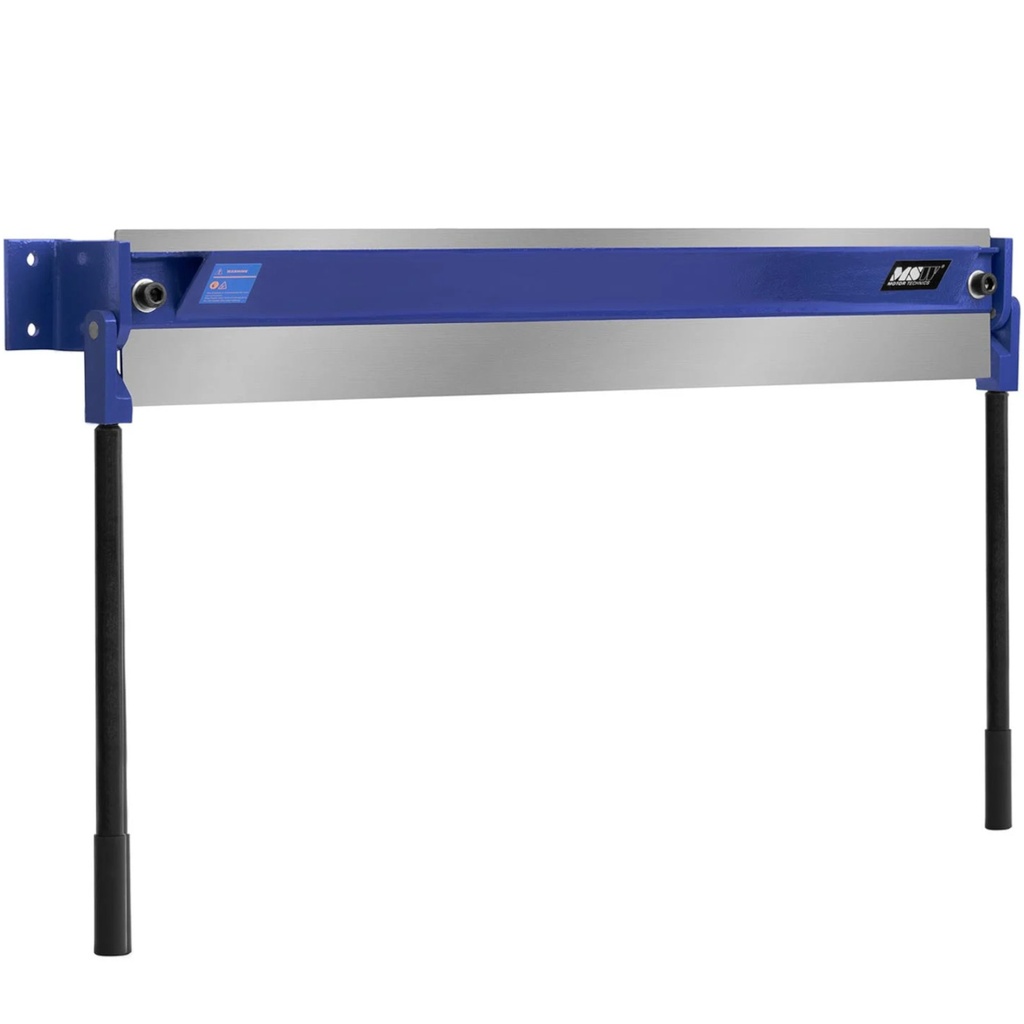

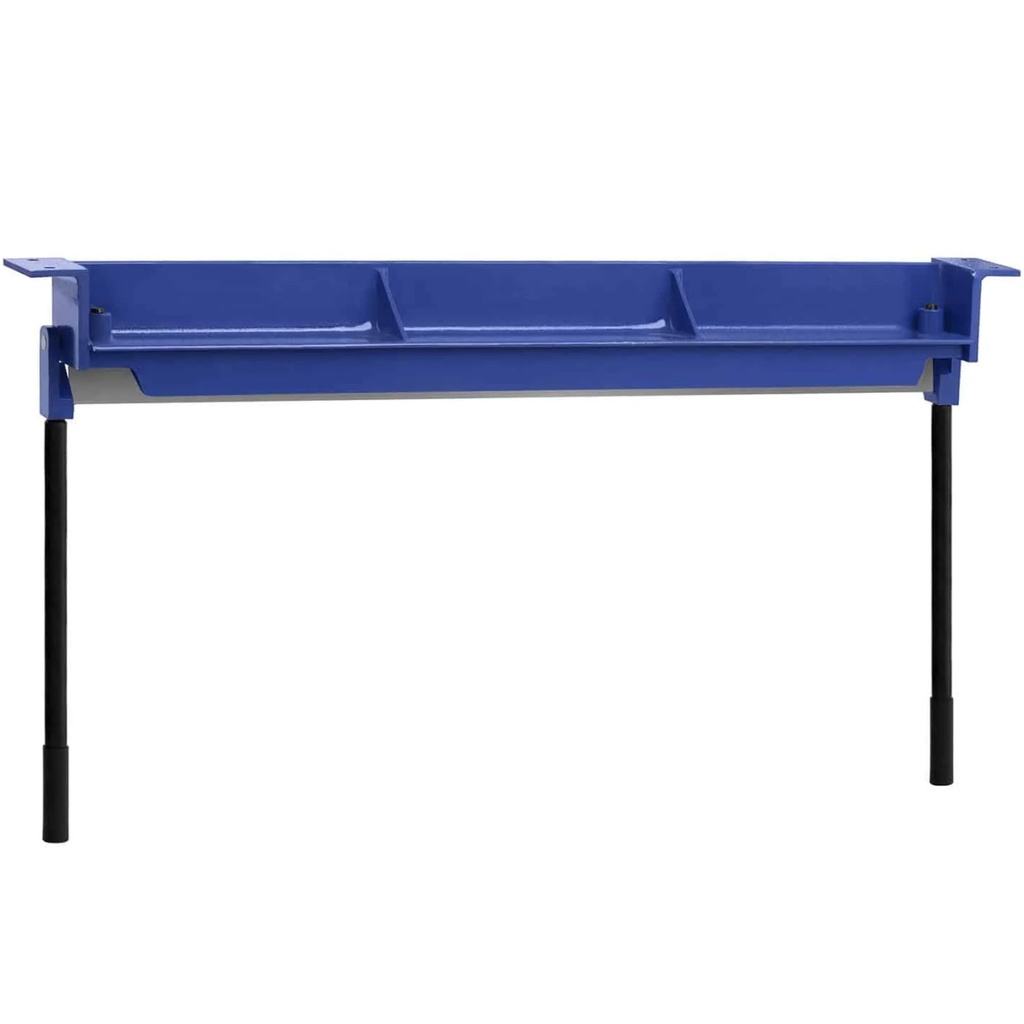

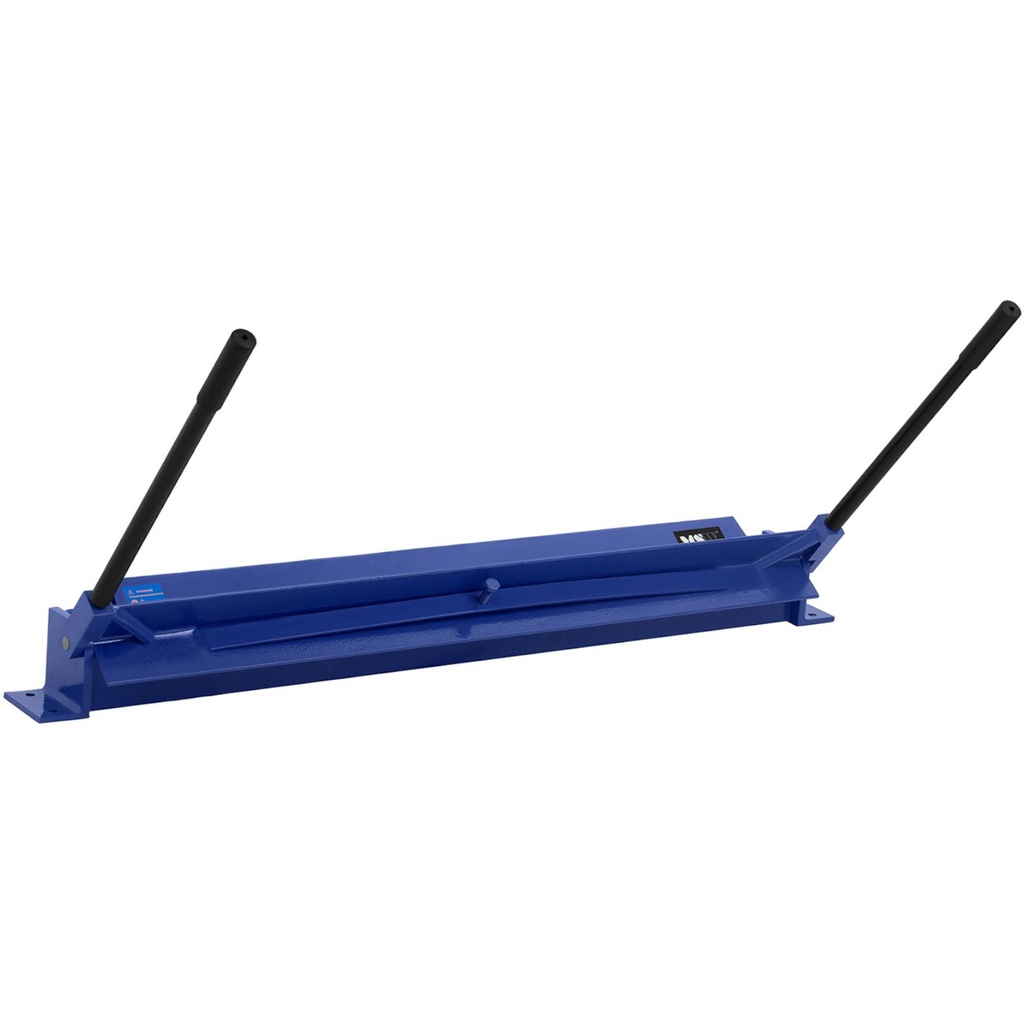

The sheet metal bending machine from MSW will prove useful in private and professional workshops, locksmiths, construction companies or factories. It allows you to bend parts with a thickness of 1.2 mm and a width of up to 1000 mm. The device uses ergonomic levers located on both sides of the machine. Rubber handles prevent slipping. The dials allow you to specify processing parameters including the bending angle up to 135°. The device has a stable steel structure, holes allow it to be bolted to the ground. You can also mount the equipment in a vise.

Product features:

• - The bending machine allows you to process material up to 1000 mm wide and 1.2 mm thick,
• - The maximum bending angle is 135 degrees,
• - Adjustment knobs allow you to adjust the device to different material thicknesses,
• - Mounting on the ground or in a vise ensures stability,
• - Hand levers at two ends.

• - Part number - 10060950
• - Article condition - New
• - Model - MSW-MSB1000
• - Material - Steel
• - Bending angle [°] - 0-135
• - Maximum thickness of the material to be bent [mm] - 1.2
• - Maximum thickness of sheet to be processed [mm] - 1.2
• - Maximum width of the sheet to be processed [mm] - 1000
• - Dimensions (DxSxW) [cm] - 122 x 64.5 x 66
• - Weight [kg] - 30.2
• - Shipping dimensions (DxSxW) [cm] - 128 x 22 x 21
• - Shipping weight [kg] - 38.2

• - Sheet metal bending machine
• - Levers - 2 pcs.
• - Operating instructions
