Manufacturer code: 10062054

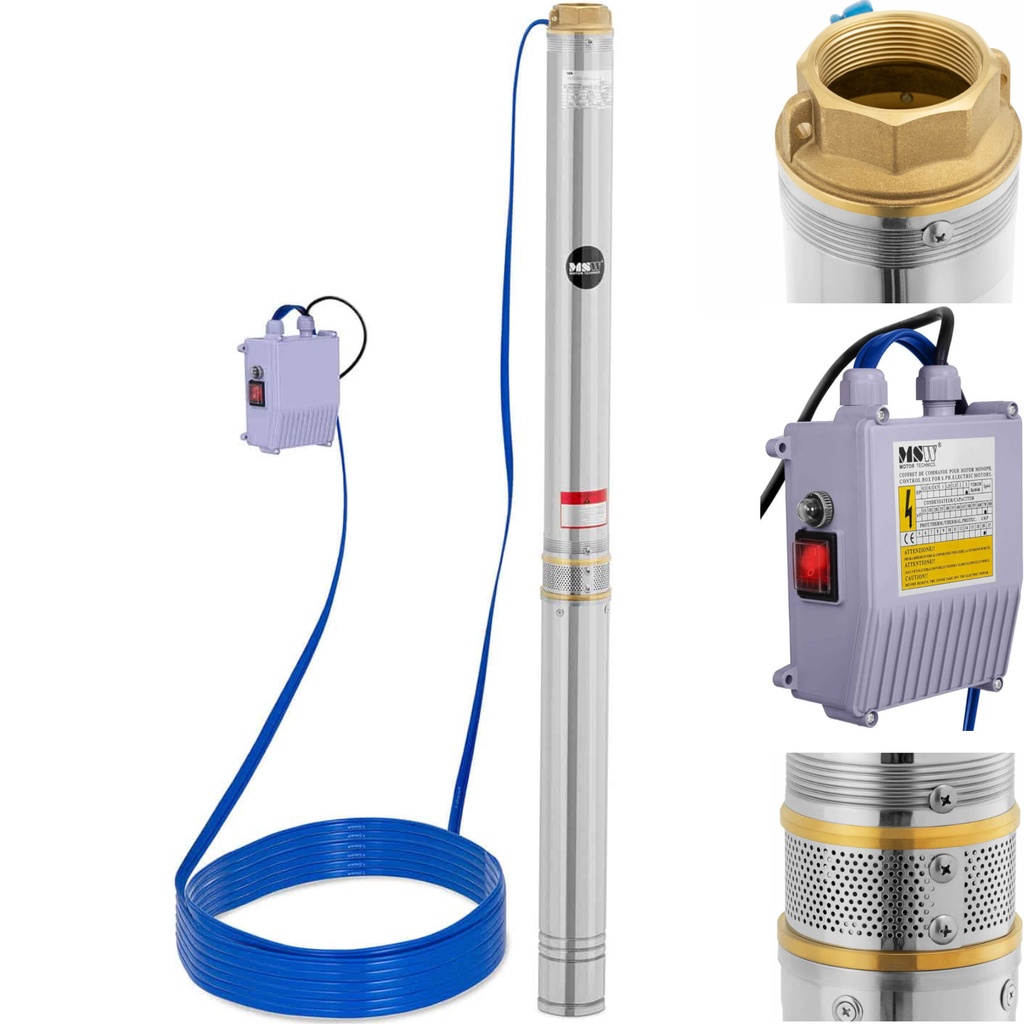

MSW brand submersible pump allows you to pump water from narrow and deep wells, shafts, tanks or cisterns. The device works at a depth of up to 96 m. The powerful 3000W motor allows the pump to operate at a speed of 0-2850 rpm and a maximum flow rate of 10800 l/h. The motor is hermetically sealed and protected against pressure and water. The submersible pump is suitable for clean water up to 35°C. The stainless steel housing is resistant to corrosion and dirt. The 50-meter-long cable allows the device to work even at a greater distance. The control box allows easy operation of the pump. An overcurrent circuit breaker protects it from damage.

Product features:

• - Reliable operation thanks to the distribution box,
• - Powerful 3000 W motor,
• - Fast pumping with10800 l/h,
• - Maximum pumping depth of 96 m,
• - Stainless steel housing resistant to corrosion and dirt.

• - Part number - 10062054
• - Article condition - New
• - Model - MSW-SPP48-220-50
• - Voltage [V] - 230
• - Material - Stainless steel
• - Maximum lifting height [m] - 96
• - Power [W] - 3000
• - Maximum water flow [m³/h] - 10.8
• - Water flow [l/h] - 10800
• - Supply line [m] - 50
• - Mounting hole diameter [mm] - 95
• - Operating mode - S1
• - Rated current [A] - 14
• - Rated power [W] - 2200
• - Insulation class - B
• - Maximum water temperature [°C] - 35
• - Rotational speed [rpm] - 0-2850
• - IP degree of protection - IP68
• - IEC protection class - I
• - Maximum sand content in water [%] - 0.25
• - Maximum number of starts per hour [h] - 50
• - Water connection diameter - 2"
• - Number of stages (pump impellers) - 14
• - Dimensions (DxSxW) [cm] - 136 x 9.5 x 9.5
• - Weight [kg] - 30.8
• - Shipping dimensions (DxSxW) [cm] - 174.5 x 27.5 x 12
• - Shipping weight [kg] - 35

• - Submersible pump
• - Operating instructions
