Manufacturer code: 10090336

The Hilvert brand ventilation kit consists of products numbered: 10090335, 10090329 and 10090327. The duct fan is quiet, very efficient and reliably extracts up to 249.6 m3 of air per hour. The device operates at a constant pressure and with 60 W of power. It has an outlet with a diameter of 98.5 mm. The ventilation pipe is easily extendable up to 1000 cm, The spiral is coated with aluminum on both sides, which makes the pipe resistant to corrosion, reliably extracting steam and stale air. The tube is very flexible, its diameter is 100 mm. The activated carbon filter binds all kinds of unwanted particles, whether smoke, fumes, gasoline, chemicals, pesticides or animal odors. The porous surface acts like a sponge, binding every form of particles.

Product features:

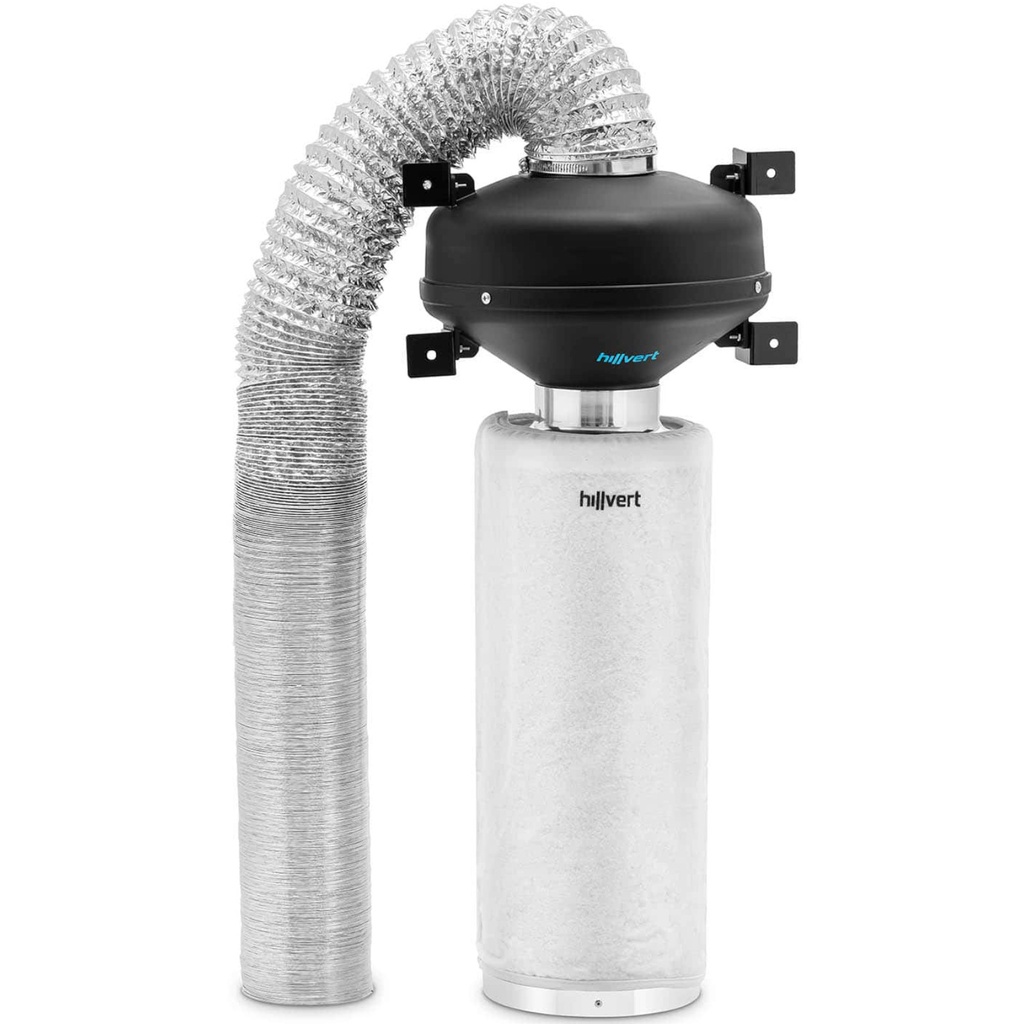

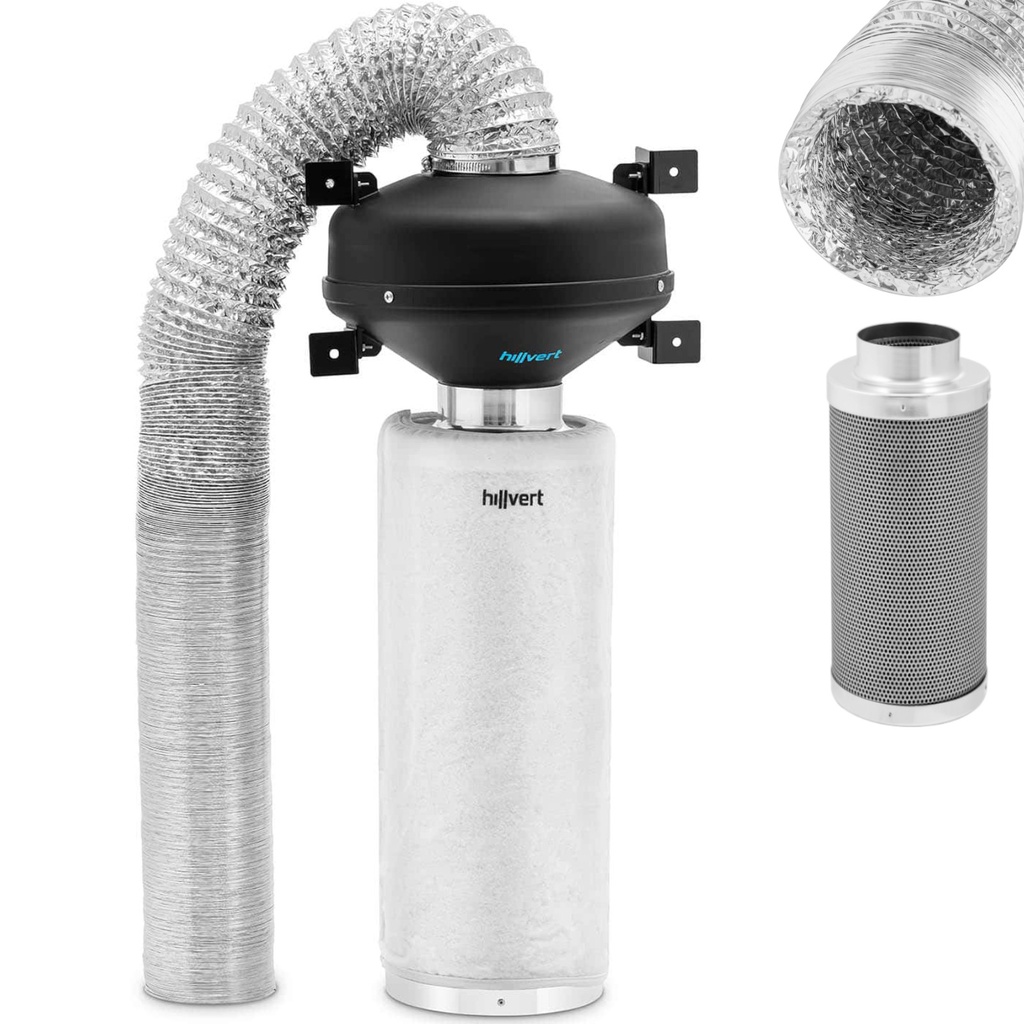

• - The kit consists of a duct fan, ventilation pipe and carbon filter,
• - Suitable for air conditioning, ventilation systems, growboxes and more,
• - High airflow fan and carbon filter,
• - Made of durable materials,
• - Complete set for easy assembly and installation.

• - Part number - 10090336
• - Article condition - New
• - Model - HT-AF-50
• - Voltage [V] - 230
• - Material - ABS, PA
• - Current [A] - 0.23
• - Air flow [m³/h] - 249.6
• - Hose length [cm] - 1000
• - Hole diameter [mm] - 102
• - Power [W] - 60
• - Outlet diameter [mm] - 98,5
• - Filter type - Active carbon filter
• - Operating temperature range [°C] - 85
• - Dimensions (DxSxW) [cm] - 32 x 32 x 70
• - Weight [kg] - 6.9
• - Shipping dimensions (DxSxW) [cm] - 84 x 35 x 35
• - Shipping weight [kg] - 9.8

• - Activated carbon filter

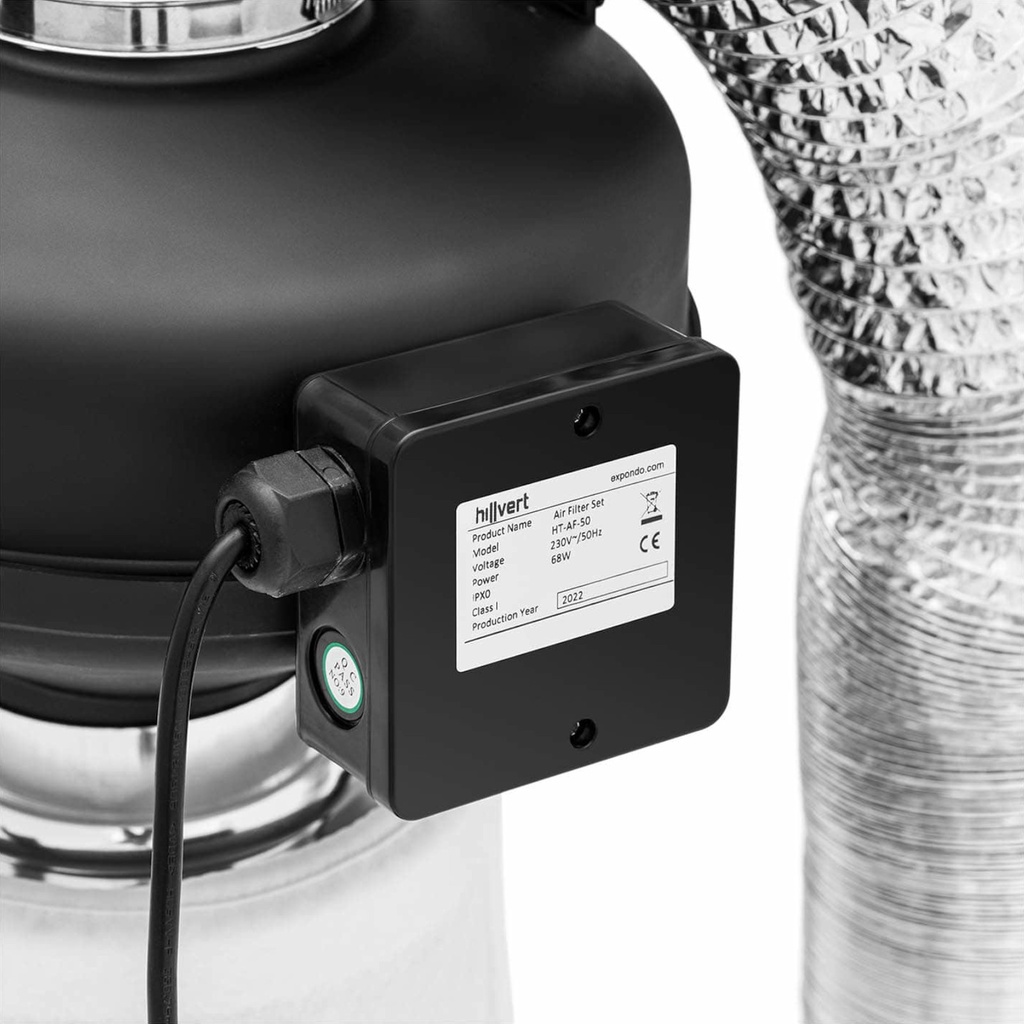

• - Duct fan

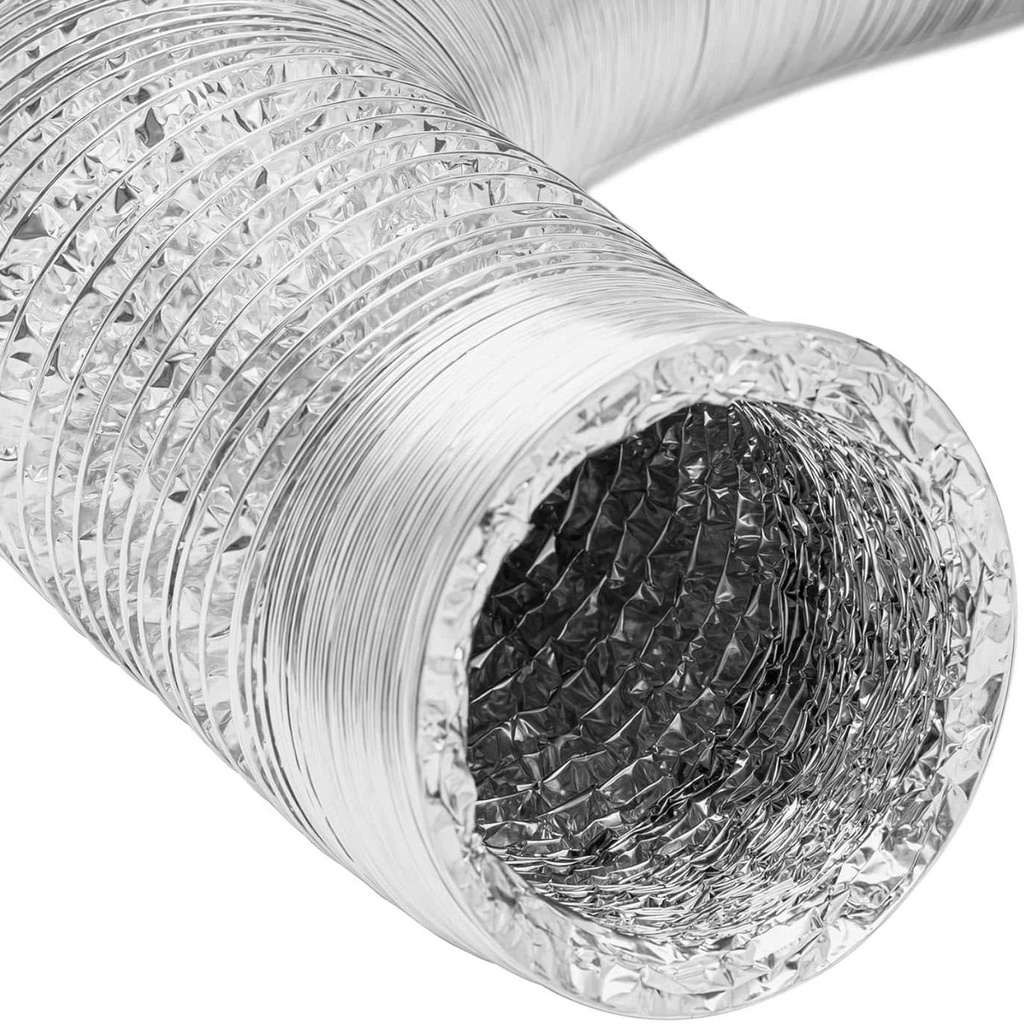

• - Ventilation tube
