Manufacturer code: 10090356

Hillvert brand splitter allows you to split logs of wood quickly and efficiently. The thrust force is 7 tons and allows you to split soft and hard wood effortlessly. The work table with a protective basket provides adequate protection. The Start-Stop function provides additional safety and control over the operation of the machine. The splitting wedge passes through the stumps at 11 cm/s and automatically returns at 7 cm/s. This splits up to 200 logs per hour without much effort. The chipper's motor is rated at 2,300 watts. The device is designed for logs up to 520 mm in length and 250 mm in diameter. The work table is adjustable from 70-100 cm. The robust construction is made of steel and aluminum. Two large wheels with a diameter of 140 mm allow easy and safe transportation.

Product features:

• - The pressure force of 7 t allows you to saw through hard and soft logs,
• - 2300 W motor ensures smooth operation,
• - High splitting wedge speed of 11 cm/s and automatic return at 7 cm/s,
• - Splits up to 200 logs in an hour with a maximum length of 520 mm and a diameter of 250 mm,
• - Stable steel, aluminum construction on casters.

• - Part number - 10090355
• - Article condition - New
• - Model - HT-LS-5000
• - Voltage [V] - 230
• - Material - Aluminum, Steel

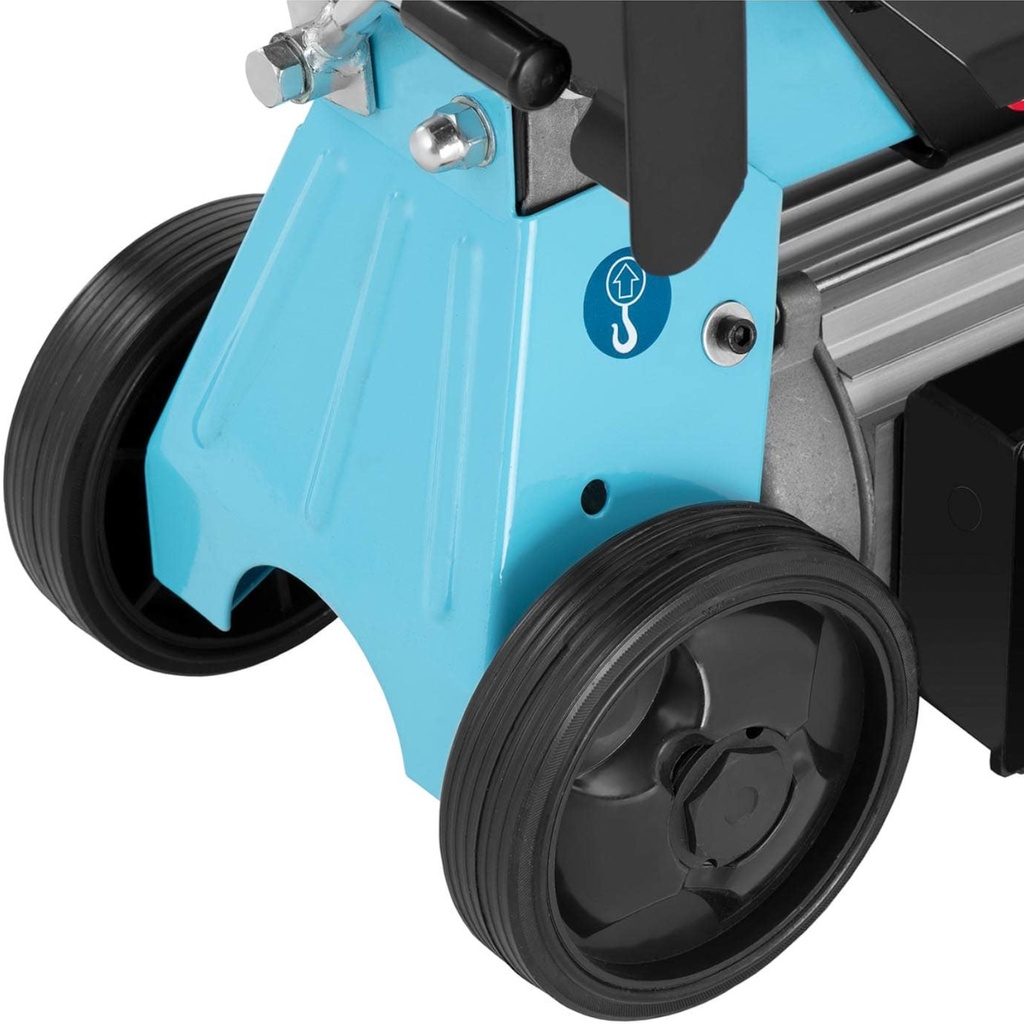

• - Wheel size [mm] - 140
• - Guiding speed [cm/s] - 11
• - Power cord [m] - 1.54
• - Log length [mm] - 520
• - Return speed [cm/s] - 7
• - Table height [cm] - 70-100
• - Logs per hour - 200
• - Power [W] - 2300
• - Press force [kg] - 7000
• - Fuel type - Oil / SHELL Tellus 22, MOBIL DTE 11, ARAL Vitam GF 22, BP Energol HLP-HM 22
• - Supply line [m] - 1.5
• - Rated speed [rpm] - 2981
• - Sound pressure level [dB] - 78.8 without load; 89.8 under full load
• - Table dimensions [mm] - 400 x 400
• - Oil tank capacity [l] - 3.5
• - Degree of protection IP - 54
• - Maximum cutting diameter [mm] - 250
• - Distance of the control device from the ground [cm] - 34
• - Start/stop function - Yes

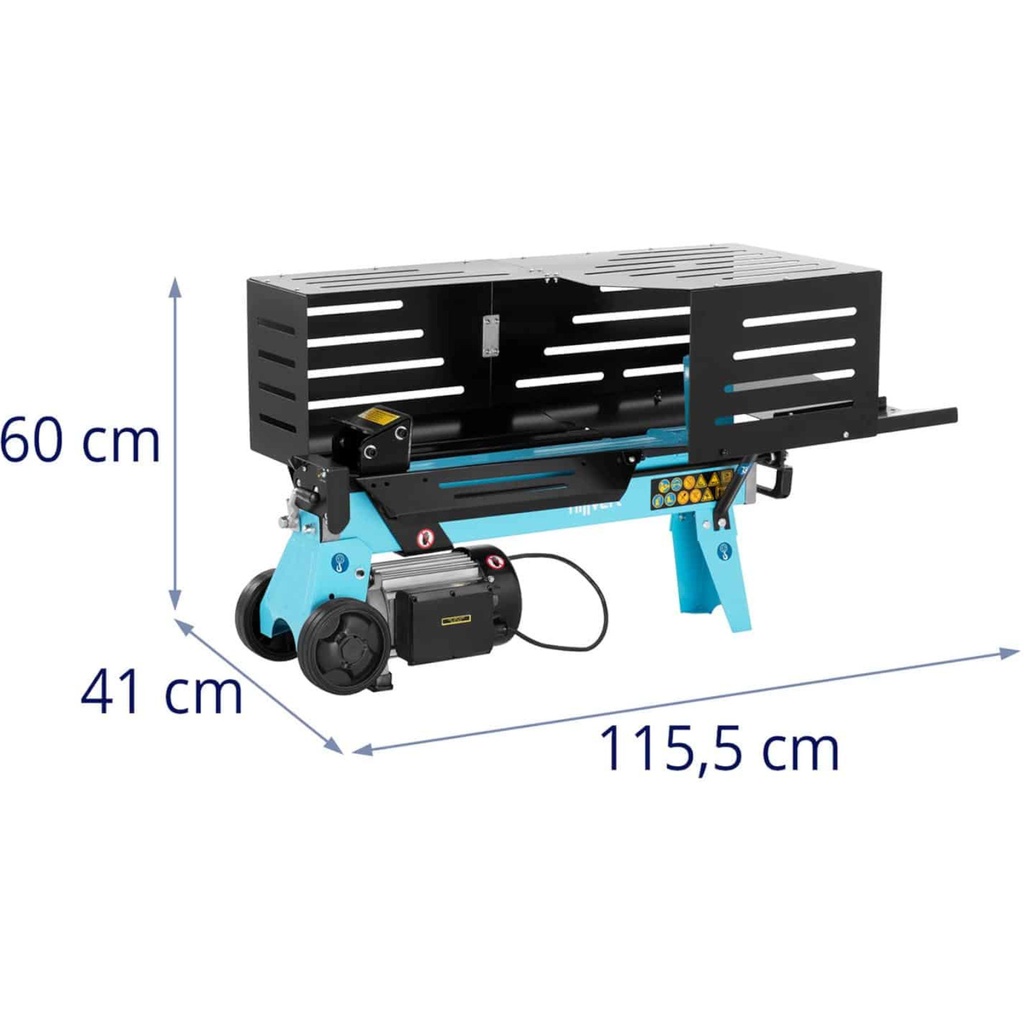

• - Dimensions (DxSxW) [cm] - 115.5 x 41 x 60
• - Weight [kg] - 59
• - Shipping dimensions (DxSxW) [cm] - 95 x 49 x 32
• - Shipping weight [kg] - 61.2

• - Wood splitter
• - Steel frame
• - Transport handle
• - 3 supports
• - Protective plate for the floor
• - 2 wooden shelves
• - Panel connector
• - 2 protective plates
• - 4 fenders
