Manufacturer code: 10030799

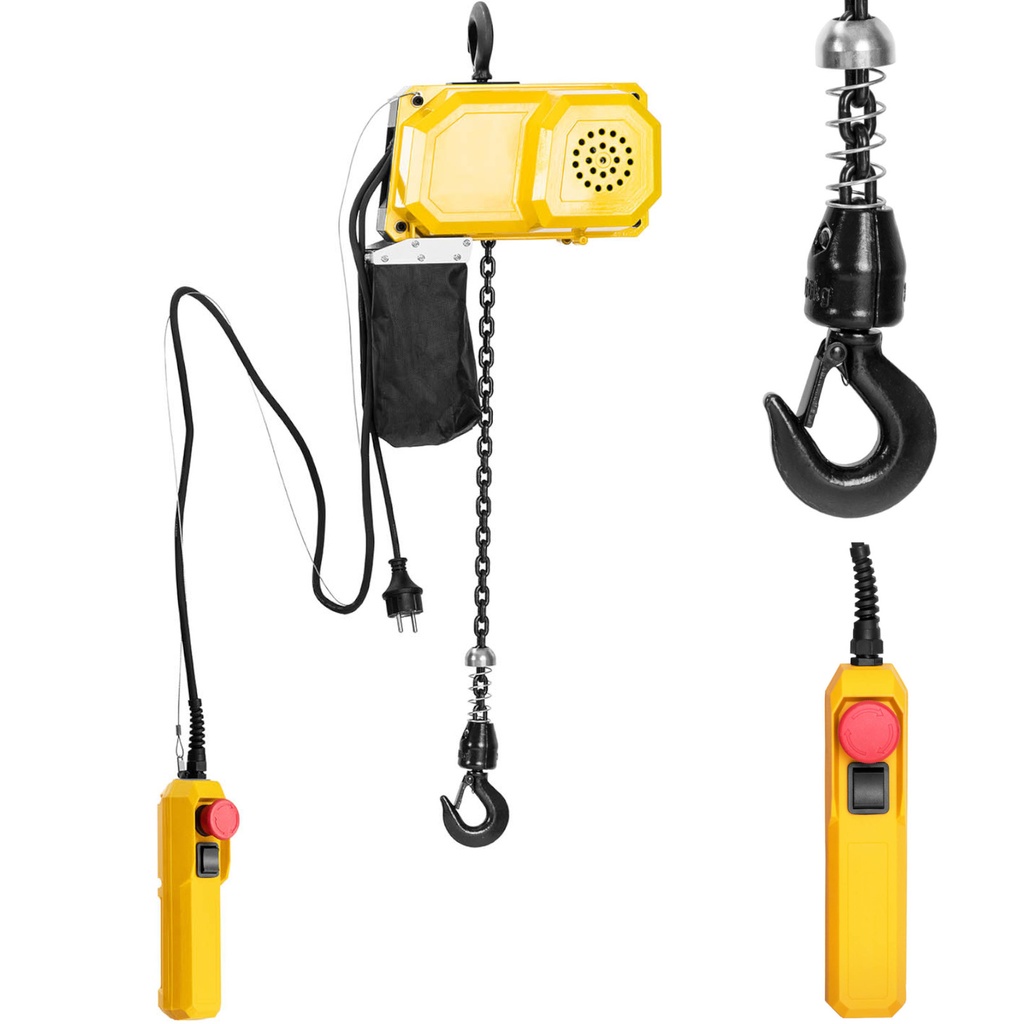

Chain winch by Steinberg Systems allows you to lift and lower loads weighing up to 300 kg. The lifting height of 3 m will prove useful in warehouses, garages, workshops, for work at heights, etc. A sturdy hook allows you to easily attach the device. The 430-watt motor allows fast and effortless operation. The lifting speed is up to 3m/min. The remote control is connected to the device with a long cable, which allows you to control the equipment from a safe distance. An emergency switch on the remote control stops the device in case of an emergency. The load hook is equipped with a safety lock, which ensures safe transportation of the attached goods. The 5mm stainless steel chain is sturdy and resistant to wear. The steel housing is resistant to scratches, chipping or corrosion. The winch is IP54-rated, protected against the ingress of dirt or water. It also has overload protection.

Product features:

• - Lifting capacity 300 kg,
• - Lifting height of 3 m,
• - Lifts loads at a speed of 3 m/min,
• - 5 mm diameter steel chain,
• - IP54 protection class and emergency stop switch.

• - Part number - 10030799
• - Article condition - New
• - Model - SBS-ECH-500/3
• - Voltage [V] - 230
• - Load [kg] - 300
• - Chain diameter [mm] - 5
• - Power [W] - 430
• - Material - Steel, copper
• - Permissible load [kg] - 300
• - Maximum load [kg] - 300
• - Motor power [W] - 430
• - Max. lifting height [m] - 3
• - Max. lifting speed - 3
• - IP degree of protection - IP54
• - Load hook - Yes
• - Emergency stop switch - Yes
• - Dimensions (DxSxW) [cm] - 28.5 x 22 x 26
• - Weight [kg] - 14
• - Shipping dimensions (DxSxW) [cm] - 36.5 x 37.5 x 28.5
• - Shipping weight [kg] - 15.1

• - Chain winch
• - Operating instructions
