Manufacturer code: 10062132

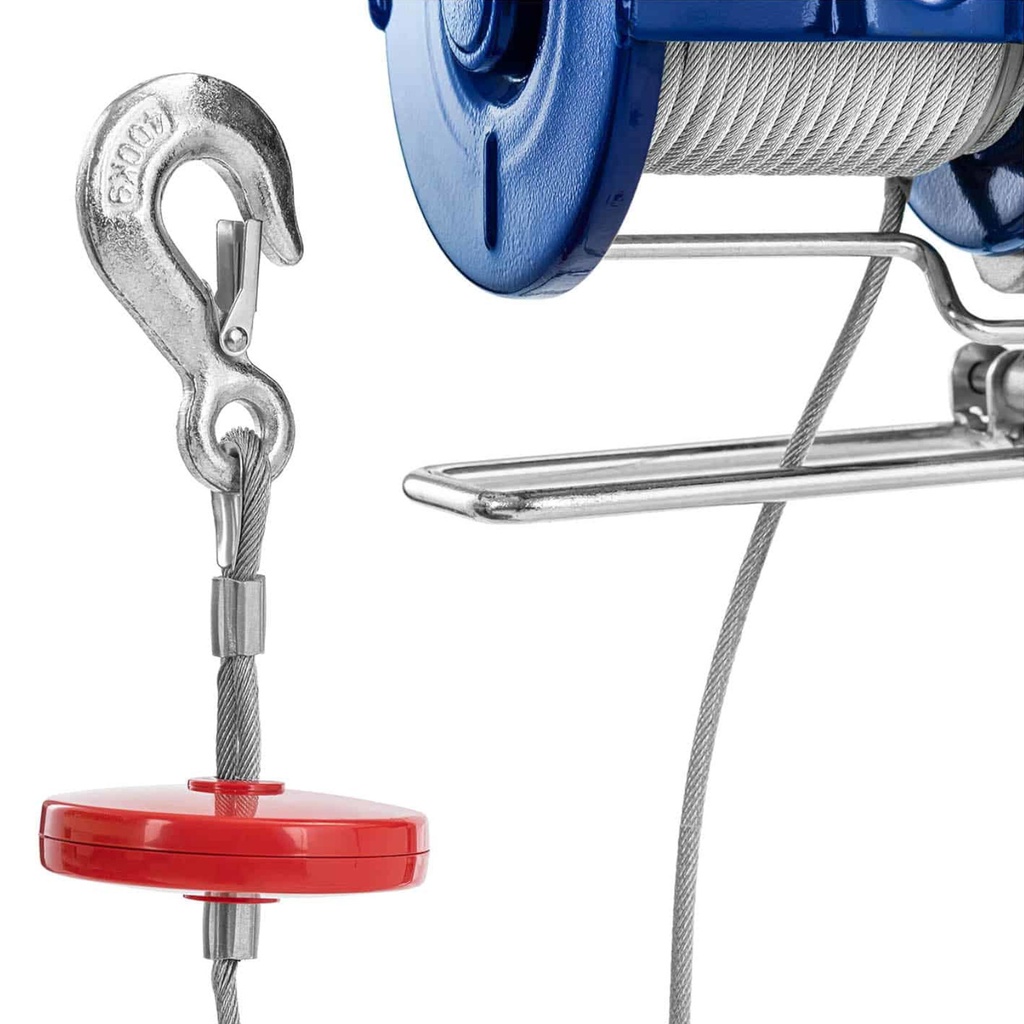

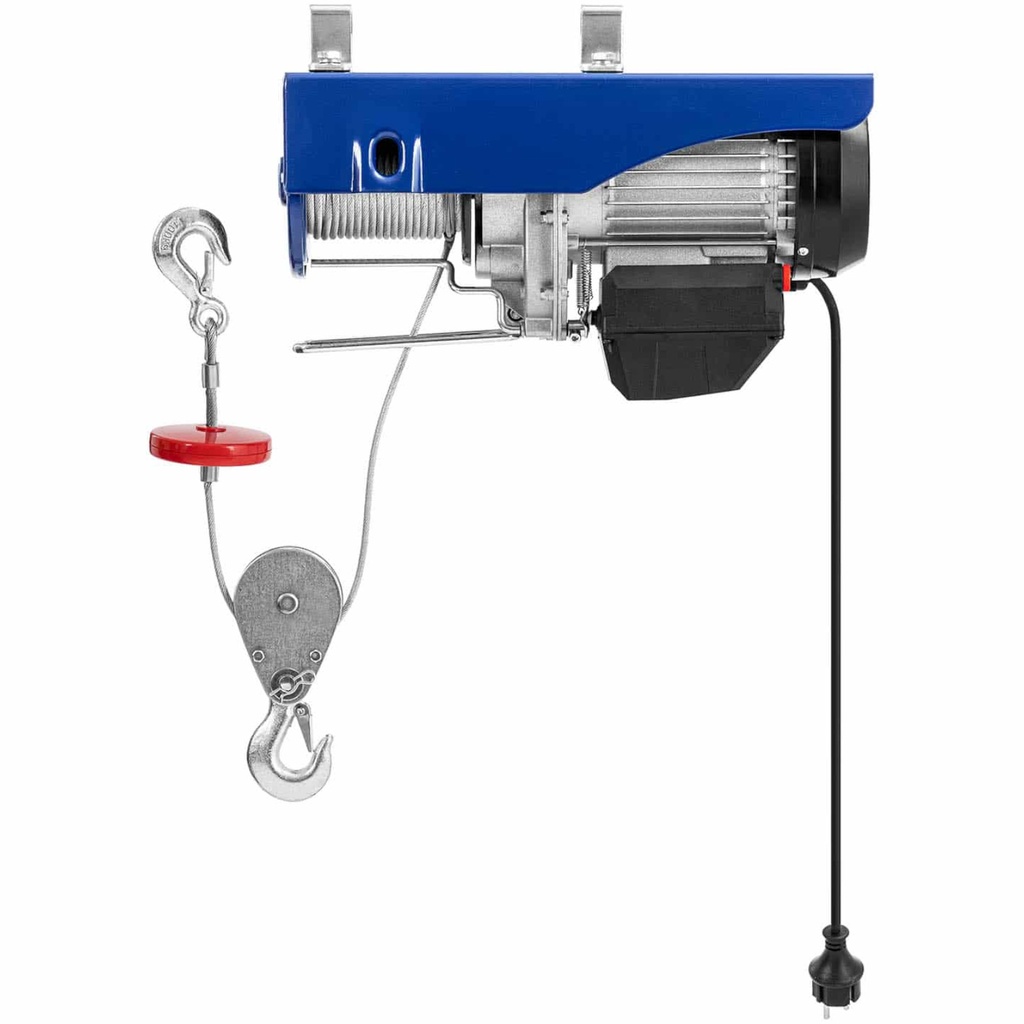

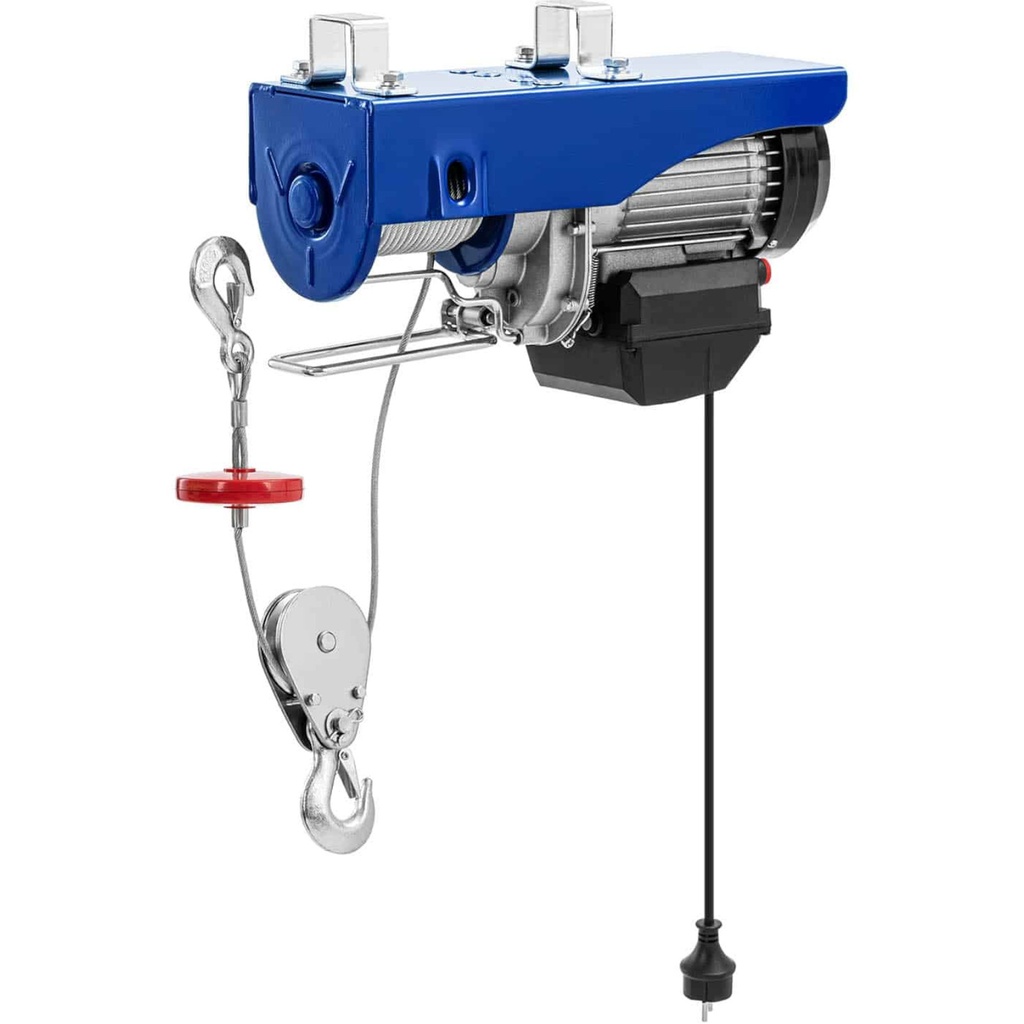

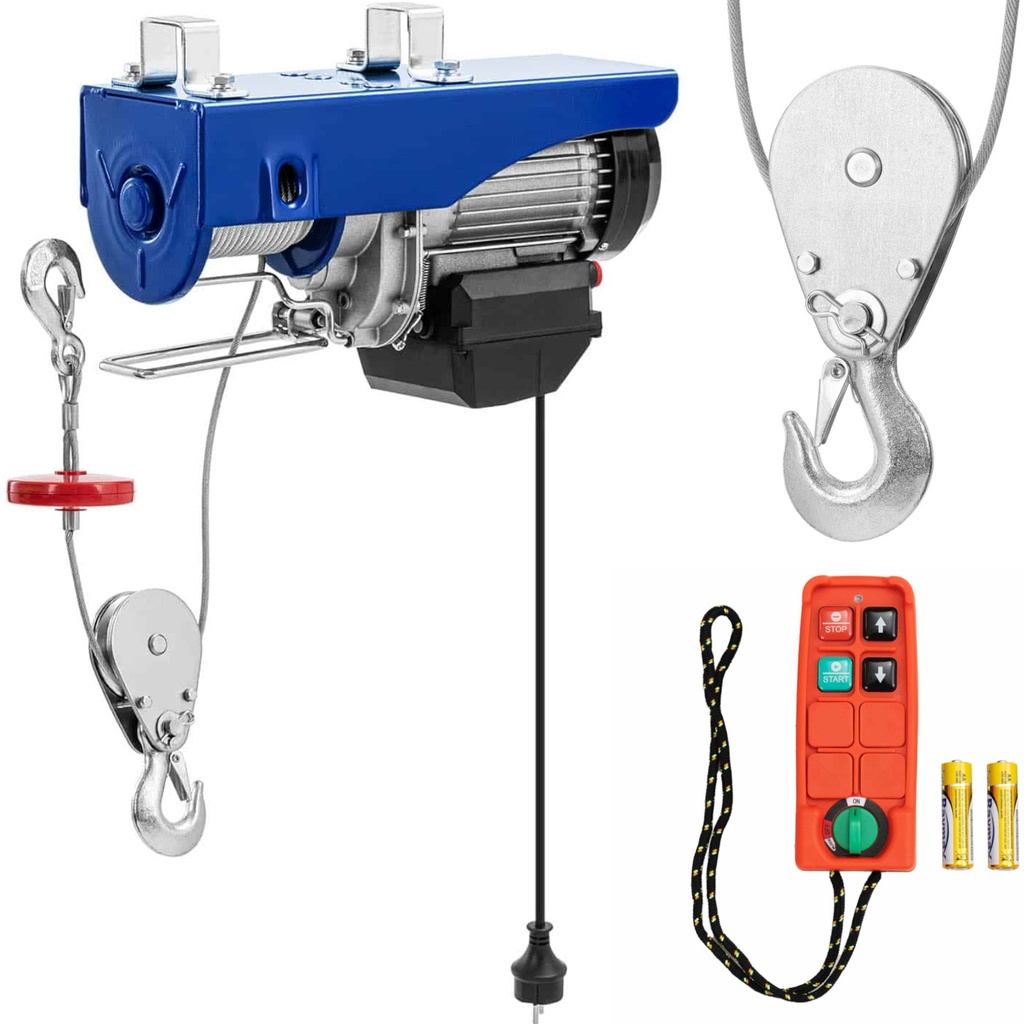

The rope winch by MSW allows you to effortlessly lift heavy loads in the warehouse or workshop. The 1350 W motor lifts loads weighing up to 400 kg to a height of 12 m. The lifting speed is 8 m/min. The steel rope is twist-proof, strong and durable. After attaching the pulley, the lifting height is halved to 6 m and the lifting speed is reduced to 4 m/min. At the same time, the load of the winch increases to 800 kg. The wireless remote control allows you to control the device from a distance. The device stops automatically in case of a power outage. The winch is marked with IP54 protection class, it is protected against the ingress of dirt and water.

Product features:

• - Pulling force up to 800 kg lifting speed up to 8 m/min,
• - Lifting height up to 12 m, with a 6 m pulley,
• - Steel cable with a diameter of 5.1 mm,

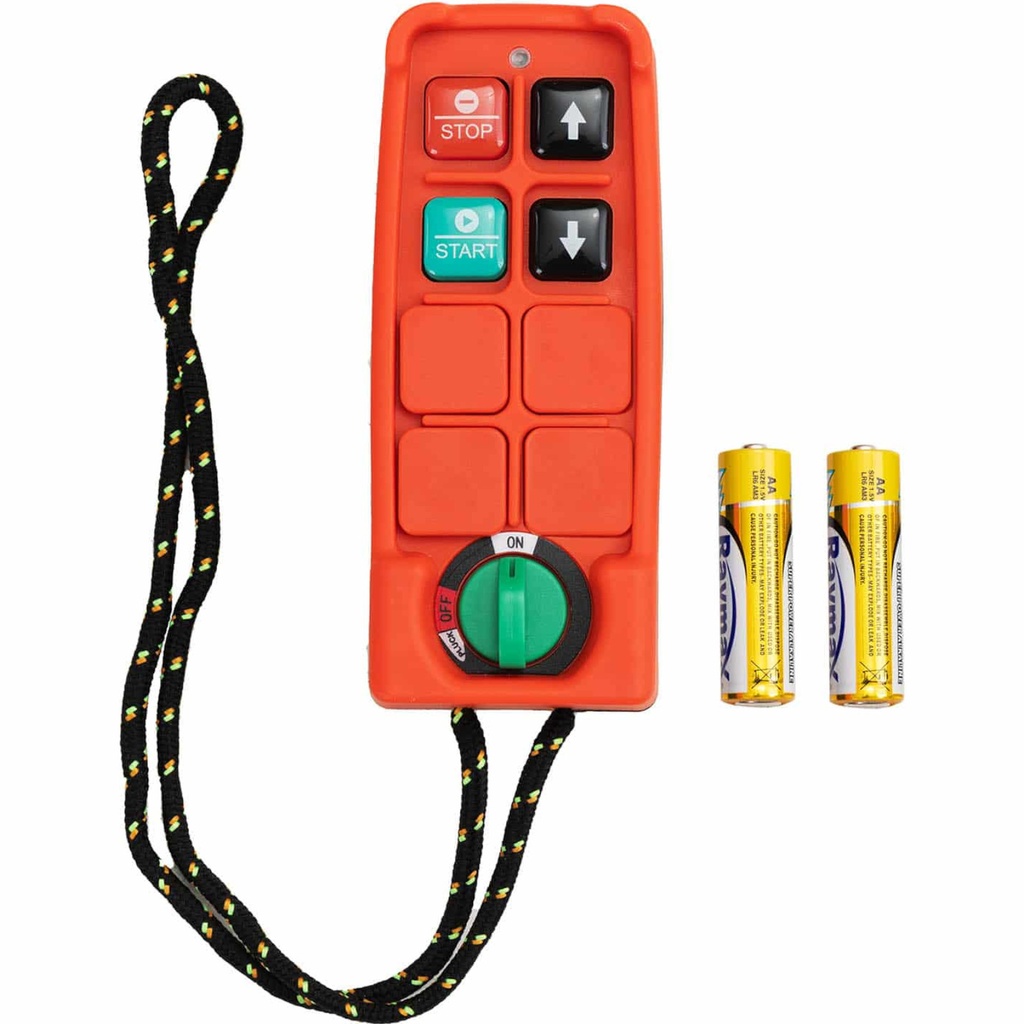

• - Automatic stop in case of power failure and remote control for remote control,
• - Durable steel, copper and aluminum construction.

• - Part number - 10062132
• - Article condition - New
• - Model - MSW-PROLIFTOR-800NW
• - Voltage [V] - 230
• - Material - Aluminum, Steel, Copper
• - Color - Blue
• - Load [kg] - 400
• - Power [W] - 1350
• - Rope length [m] - 12
• - Maximum load [kg] - 800
• - Motor power [W] - 1350
• - Power cable [m] - 0,55
• - Max. lifting height [m] - 12
• - Wire diameter [mm] - 5.1
• - Break time - S3 / 20% / 10 min
• - Max. lifting speed - 8 m/min
• - IP degree of protection - IP54
• - Lifting speed - without pulley [m/min] - 8
• - Load capacity without pulley [kg] - 400
• - Lifting speed with the block [m/min] - 4
• - Load capacity with the block [kg] - 800
• - Max. lifting capacity without the block [m] - 12
• - Max. lifting capacity - with block [m] - 6
• - Load hook - Yes
• - Remote control - Yes
• - Emergency stop - Yes

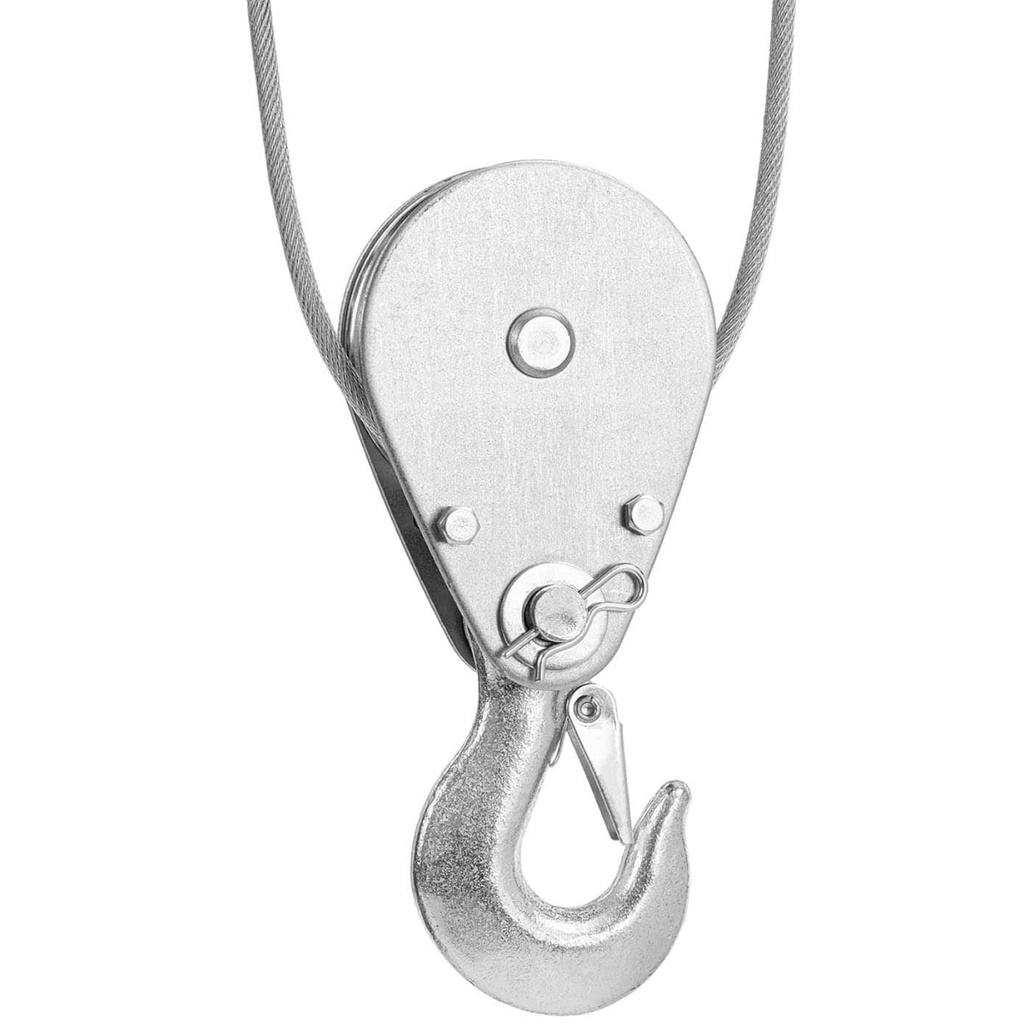

• - Pulley with hook - Yes

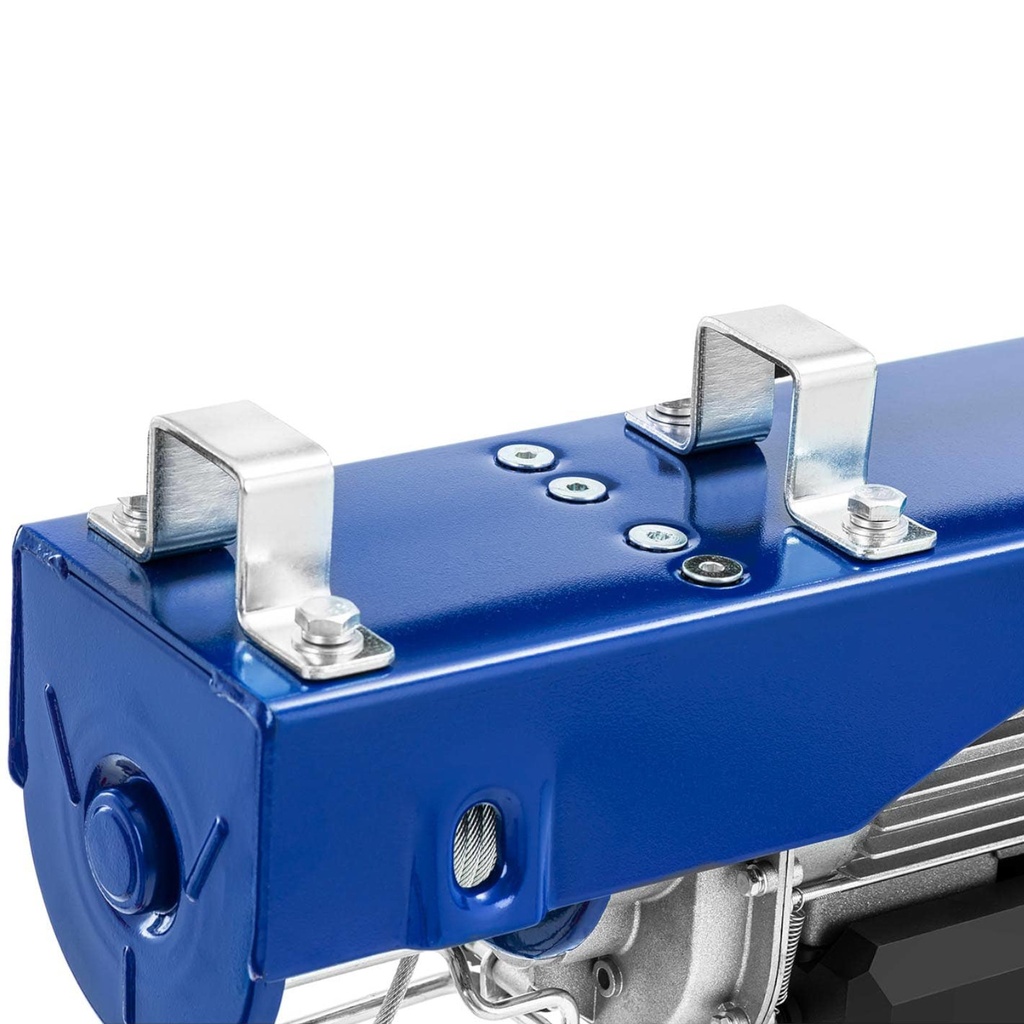

• - Clamp - attachment to profile or swing arm - Yes
• - Dimensions (DxSxW) [cm] - 41 x 15 x 22
• - Weight [kg] - 19.5
• - Shipping dimensions (DxSxW) [cm] - 50 x 30 x 21
• - Shipping weight [kg] - 20.6

• - Rope winch
• - Pilot
