Manufacturer code: 10062122

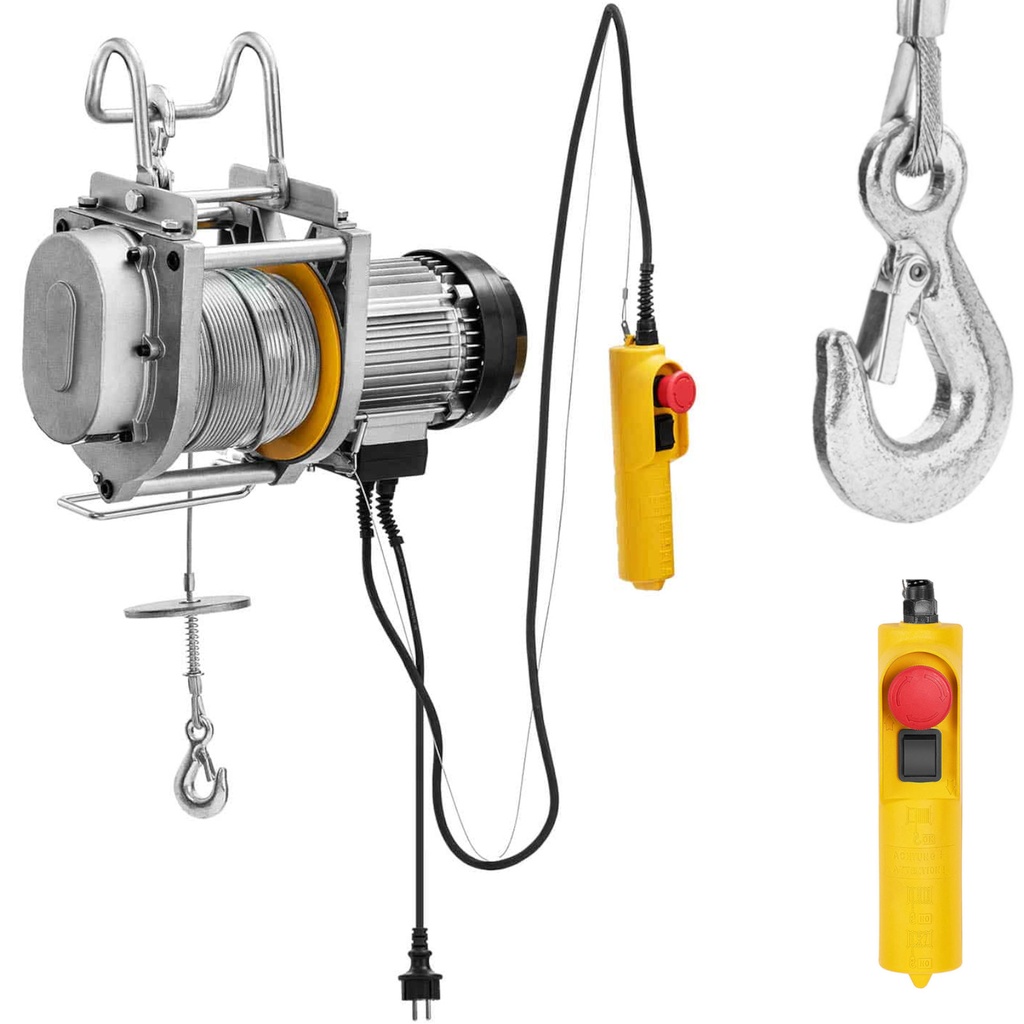

MSW brand rope winch allows you to effortlessly lift heavy loads in the warehouse or workshop. The 1300 W motor lifts loads to a height of 60 m. The rope with a diameter of 5.1 mm carries loads worth 250 kg. The lifting speed is 15 m/min. A wired remote control allows you to control the device from a distance. An emergency button allows you to stop the winch immediately. The hooks are equipped with a safety lock. The unit automatically shuts off in the highest and lowest positions. The steel housing is extremely durable, resistant to corrosion. The winch is rated IP54, is protected against the ingress of dirt and water, and has thermal overload protection.

Product features:

• - Pulling force up to 250 kg,
• - Lifting height up to 60 m,
• - 5.1 mm diameter steel cable,
• - Emergency switch and hooks with safety catches,
• - Durable steel and copper construction.

• - Part number - 10062122
• - Article condition - New
• - Model - MSW-ET-250
• - Voltage [V] - 230
• - Material - Aluminum, Steel, Copper
• - Color - Gray
• - Load [kg] - 250
• - Power [W] - 1300
• - Rope length [m] - 60
• - Maximum load [kg] - 250
• - Motor power [W] - 1300
• - Power cable [m] - 0.5
• - Max. lifting height [m] - 60
• - Wire diameter [mm] - 5.1
• - Downtime - S3 40% - 10 min
• - Max. lifting speed - 15 m/min
• - IP degree of protection - IP54
• - Lifting speed - without pulley [m/min] - 15
• - Load capacity without pulley [kg] - 250
• - Max. lifting capacity - without block [m] - 60
• - Load hook - Yes
• - Remote control - Yes
• - Emergency stop - Yes
• - Hook and eye block - No
• - Clamp - attachment to profile or swing arm - No
• - Dimensions (DxSxW) [cm] - 46 x 42 x 24
• - Weight [kg] - 30.3
• - Shipping dimensions (DxSxW) [cm] - 54 x 38 x 29
• - Shipping weight [kg] - 31.7

• - Rope winch
