Manufacturer code: 10030676

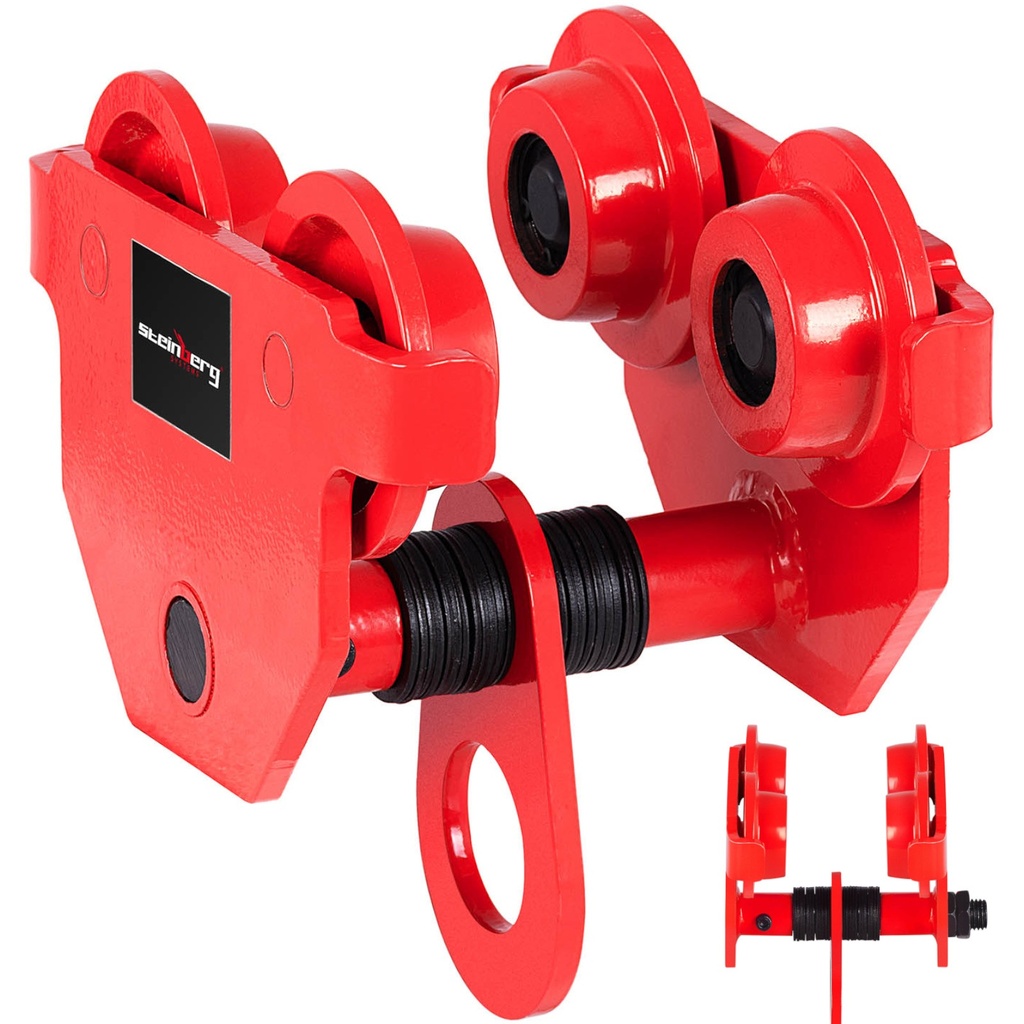

Steinberg Systems brandcrane cart is a device for moving heavy loads in a straight line, such as along an I-beam. The load capacity is 1000 kg max (it must not be exceeded!). The equipment is safe to use and easy to maintain. The adjustment range is 65-110 mm, and thanks to the hoops it is possible to move on curved profiles. Free spacing of tension wheels to the crane is provided by shafts without axles. This eliminates friction, resulting in longer equipment life and lighter operation. The special tread allows for an out-of-plane tilt of more than 1:6 or less than 1:6.

Product features:

• - Equipment with a load capacity of up to 1,000 kg,
• - Safety factor of 1.25,
• - Double roller system,
• - Adjustable in the range of 65-110 mm,
• - Ability to move on curved profiles.

• - Part number - 10030676
• - Item condition - New
• - Manufacturer - Steinberg Systems
• - Model - SBS-RT-1000N2
• - Adjustment range [mm] - 65-110
• - Stem material - Carbon steel Q235
• - Max. lifting capacity [kg] - 1000
• - Safety factor - 1.25
• - Wheels - 4 x cast iron wheel
• - Dimensions (DxSxW) [cm] - 22 x 16 x 16
• - Weight [kg] - 13
• - Shipping dimensions (DxSxW) [cm] - 25 x 22 x 18
• - Shipping weight [kg] - 14.4

• - Crane cart,
• - Instruction manual.
