Manufacturer code: 10030675

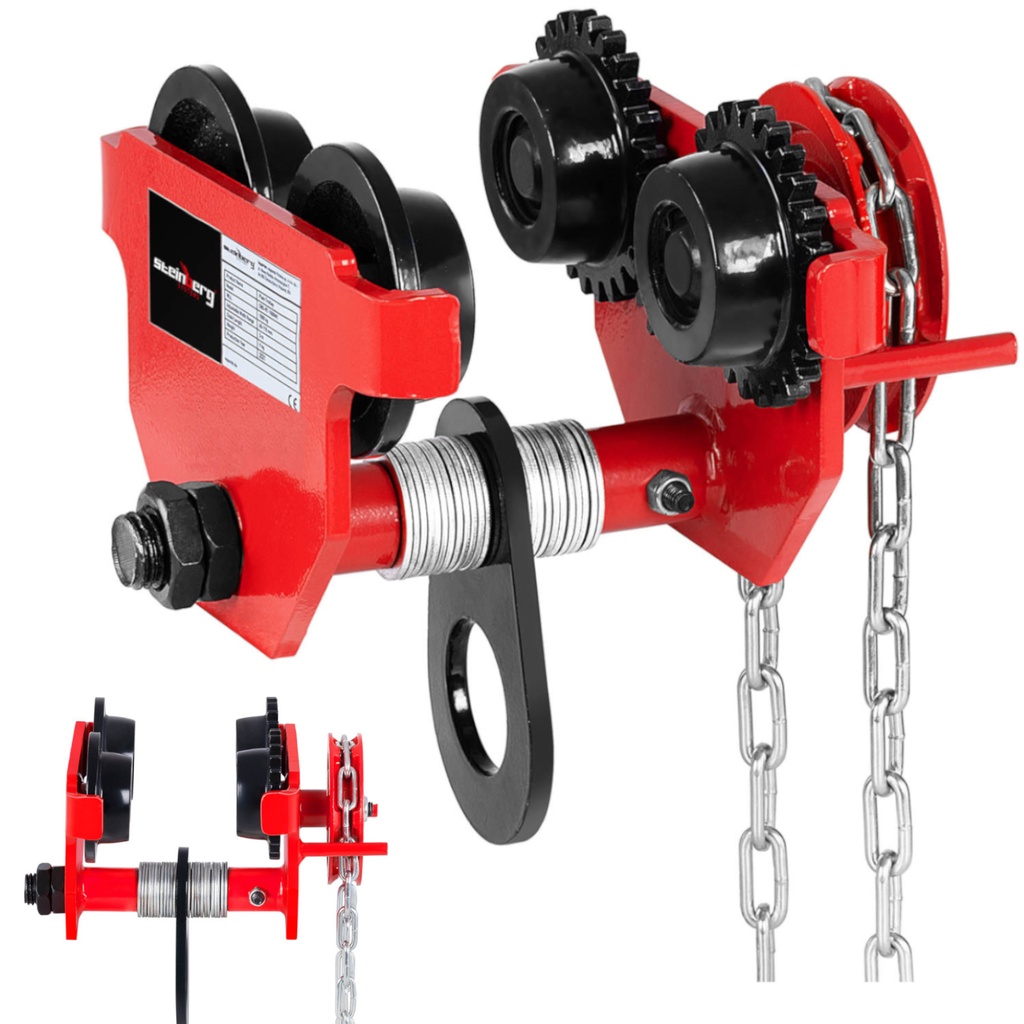

Steinberg Systems brandcrane cart is a device for moving heavy loads in a straight line, such as along an I-beam. The load capacity is up to 1000 kg (not to be exceeded!). The adjustment range is 65-110 mm, and thanks to the hoops it is possible to move on curved profiles. Free spacing of tension wheels to the crane is provided by shafts without axles. This eliminates friction, resulting in longer equipment life and lighter operation. The special tread allows for an inclination to the plane of more than 1:6 or less than 1:6. A 3-meter-long chain is included. The cart is made of carbon steel, additionally coated with a protective coating to prevent corrosion. Four cast iron wheels ensure easy and fast movement.

Product features:

• - Equipment with a load capacity of up to 1000 kg,
• - Chain length of 3 m,
• - Safety factor of 1.25,
• - Adjustable in the range of 65-110 mm,
• - Ability to move on curved profiles.

Technical data:

• - Part number - 10030675
• - Item condition - New
• - Manufacturer - Steinberg Systems
• - Model - SBS-RT-1000N1
• - Adjustment range [mm] - 65-110
• - Chain length [mm] - 3000
• - Shank material - Carbon steel Q235
• - Max. lifting capacity [kg] - 1000
• - Safety factor - 1,25
• - Wheels - 4 x cast iron wheel
• - Dimensions (DxSxW) [cm] - 22 x 24 x 15
• - Weight [kg] - 18.7
• - Shipping dimensions (DxSxW) [cm] - 29 x 25 x 18
• - Shipping weight [kg] - 19.9

Included:

• - Crane cart,
• - Instruction manual.
