Manufacturer code: 10021146

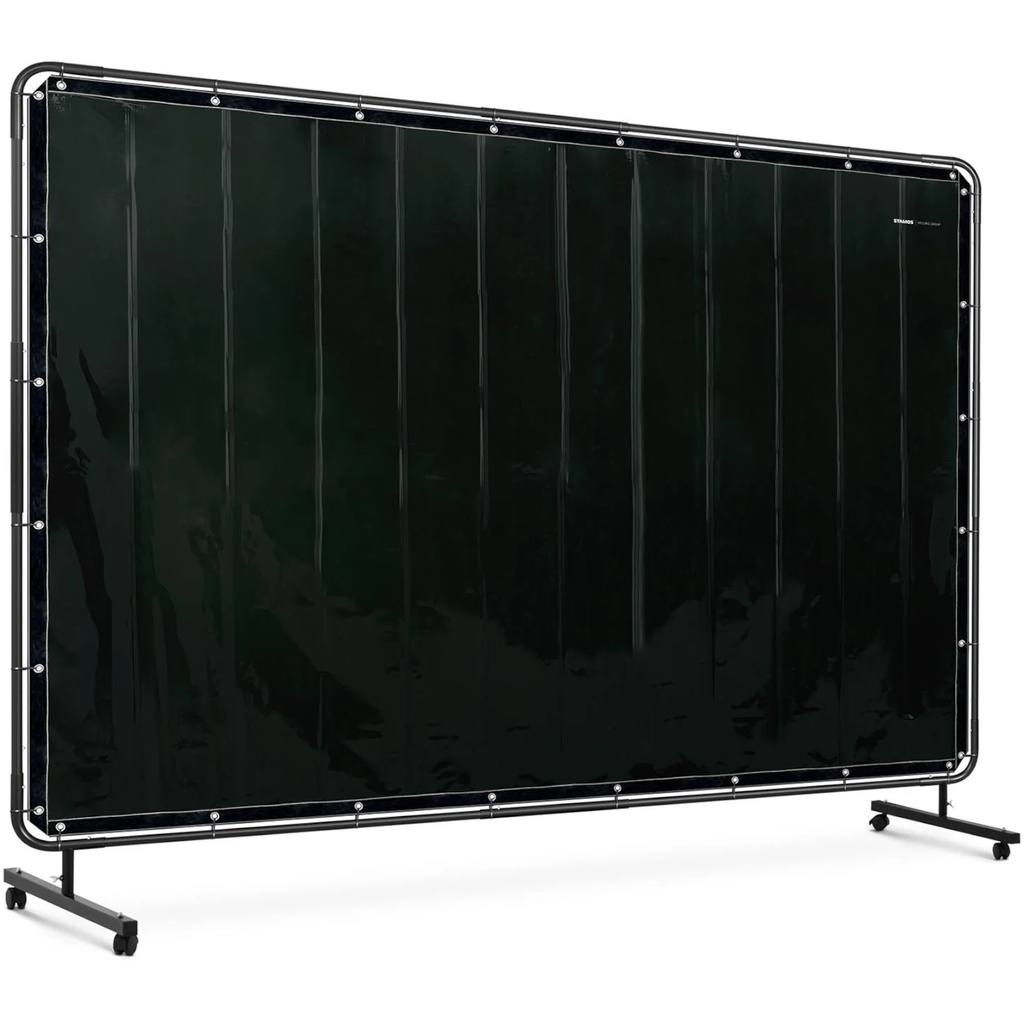

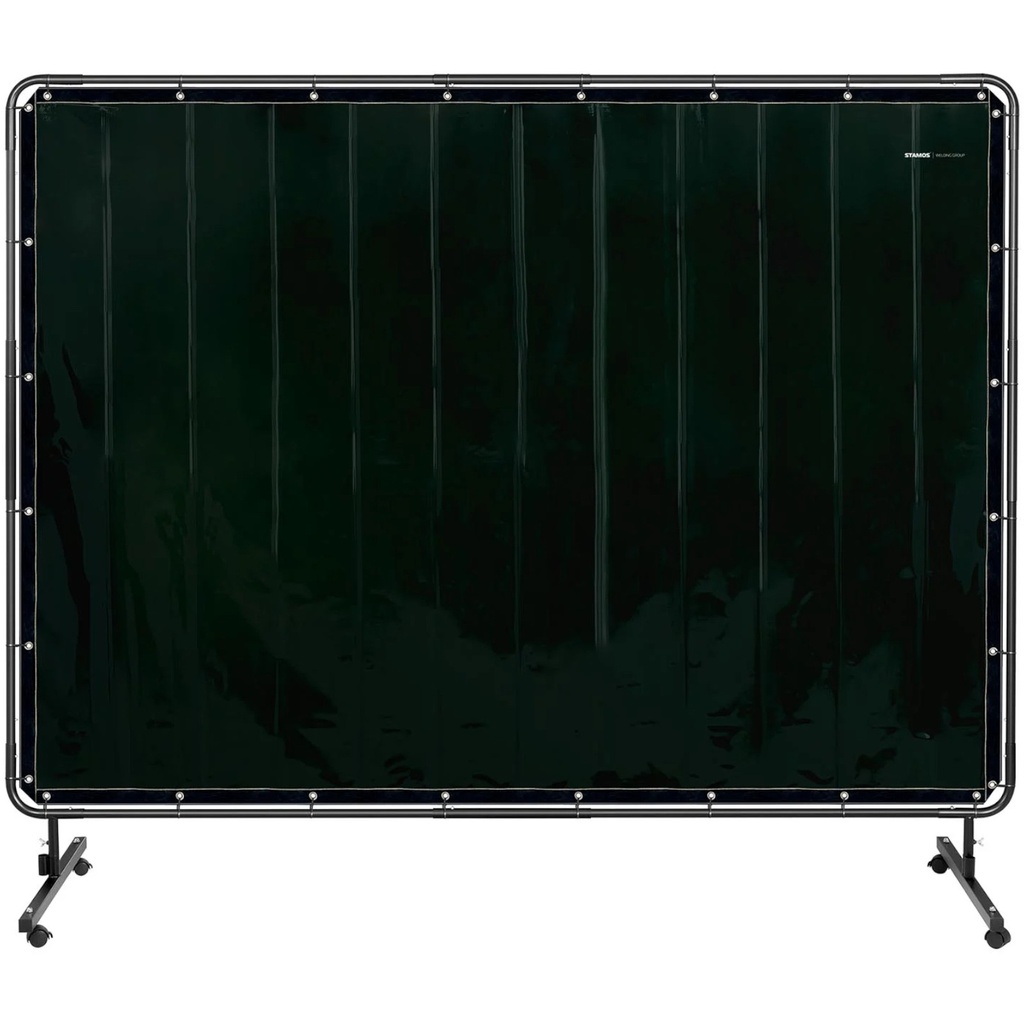

Welding curtain by Stamos Welding Group allows you to protect against UV radiation, sparks, electric arc or metal splatter. It will prove useful in workshops, repair shops or construction sites. The screen is made of 0.4 mm thick vinyl (PVC), which is non-flammable and UV resistant. There are grommets around the perimeter for fastening. The large dimensions of 240 x 180 cm provide effective protection. Mobility of the curtain is provided by 4 swivel wheels (2 with brakes). The design is convenient to disassemble and reassemble.

Product features:

• - 0.4 mm thick UV resistant and flame retardant vinyl,
• - Large 240 x 180 cm area on a strong frame,
• - Frame on casters, 2 brakes,

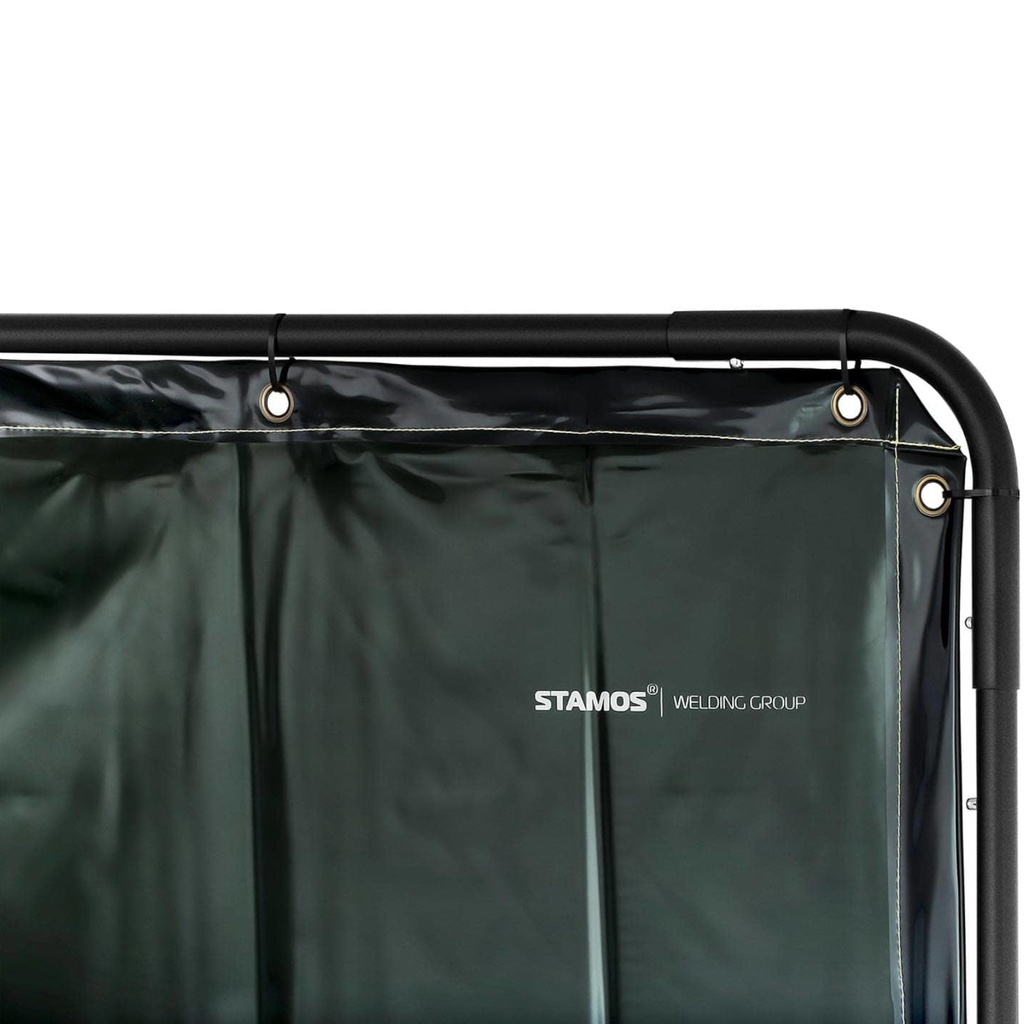

• - Eyelets around the perimeter.

• - Model - SWS02N
• - Part number - 10021146
• - Article condition - New
• - Material - Plastic, Steel
• - Color - Black
• - Screen size [mm] - 2390 x 1750
• - Spectral transfer [%] - < 0.002 / < 3
• - MMA - Yes
• - TIG - Yes
• - MIG/MAG - Yes
• - Hazard level - 0.6
• - Light transmission [%] - 0.93
• - Hazard level after exposure - 0.59
• - Light transmittance after exposure [%] - 0.63
• - Relative change in light transmittance [%] - 29.6
• - Dimensions (DxSxW) [cm] - 66 x 240 x 196
• - Weight [kg] - 7.7
• - Shipping dimensions (DxSxW) [cm] - 24 x 123.5 x 8
• - Shipping weight [kg] - 8.75

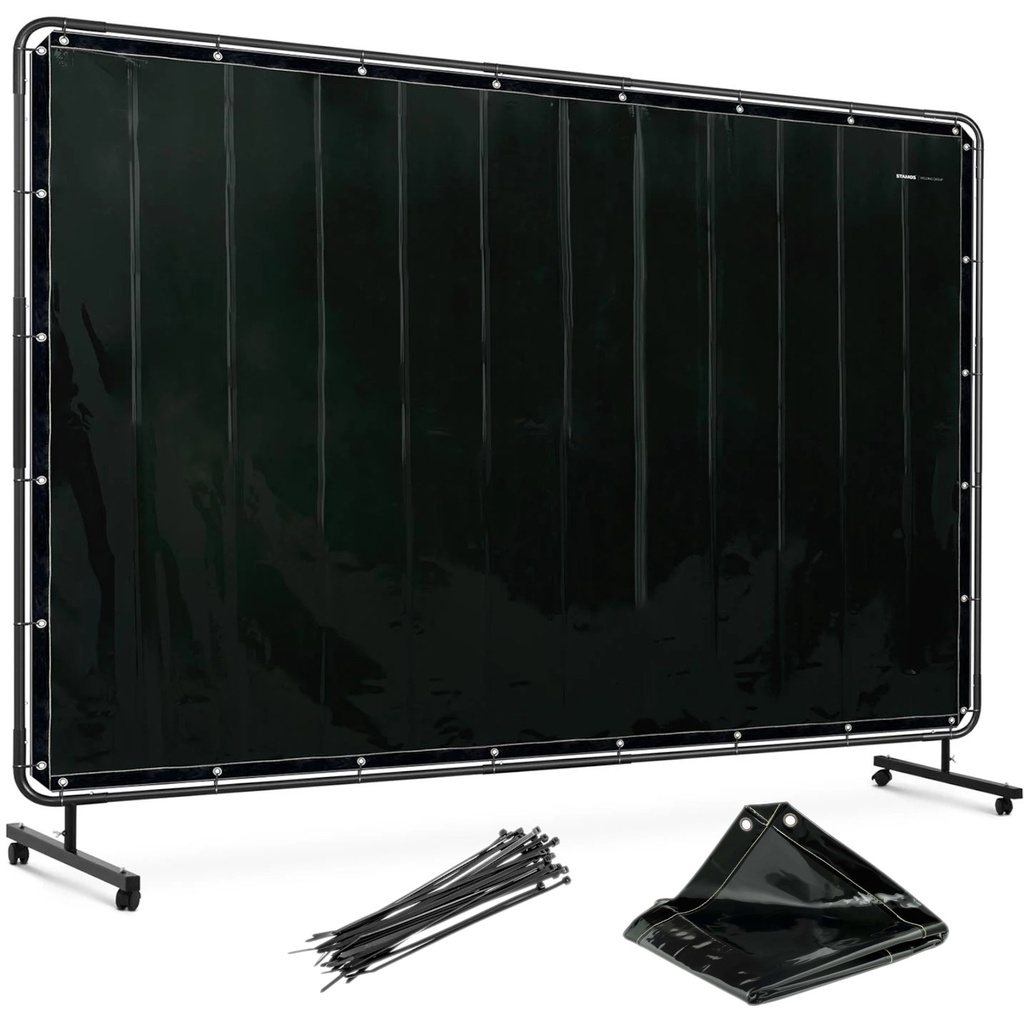

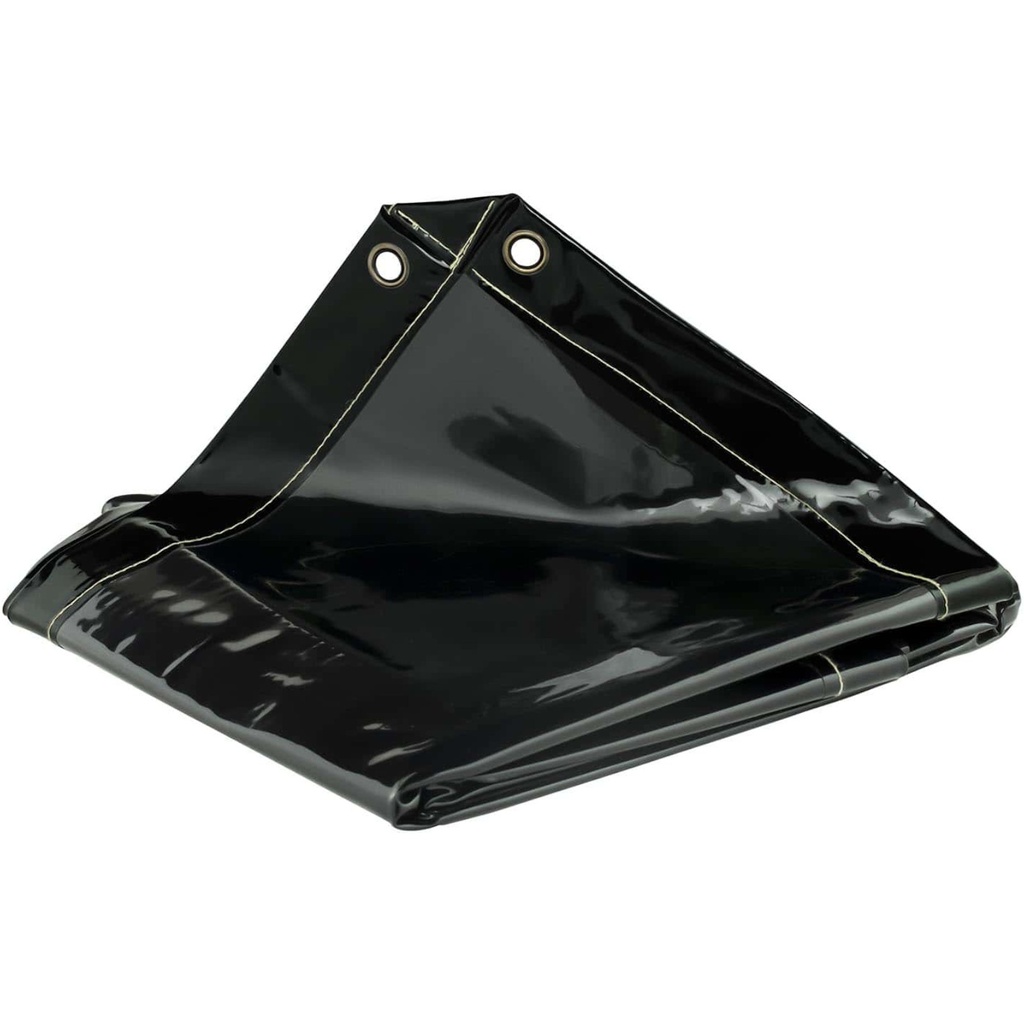

• - Welding screen
• - Round tubes - 12 pcs.
• - Square tubes - 2 pcs.
• - Connectors - 2 pcs.
• - Corner connectors - 4 pcs.
• - Wheels - 4 pcs.
• - Metal rings - 31 pcs.

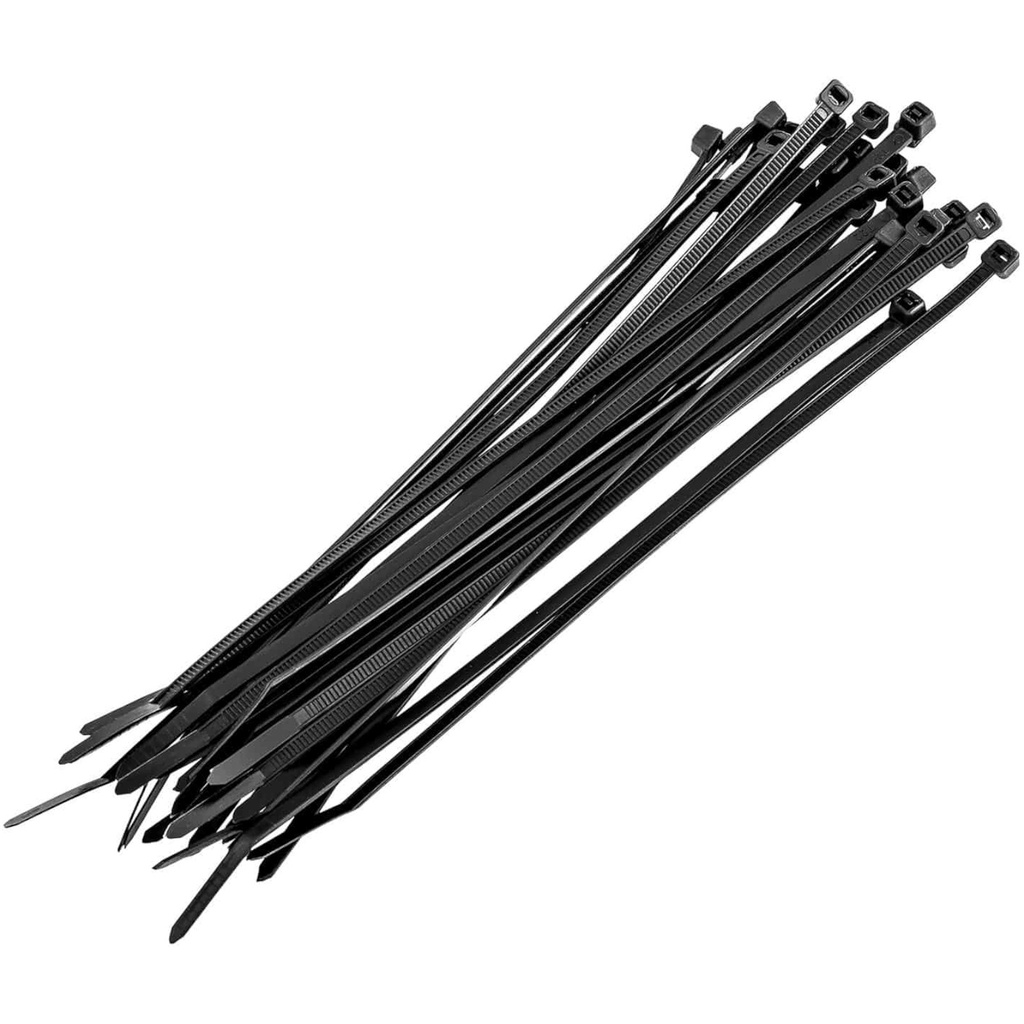

• - Clamping bands - 32 pcs.
• - Manual
