Manufacturer code: 10021368

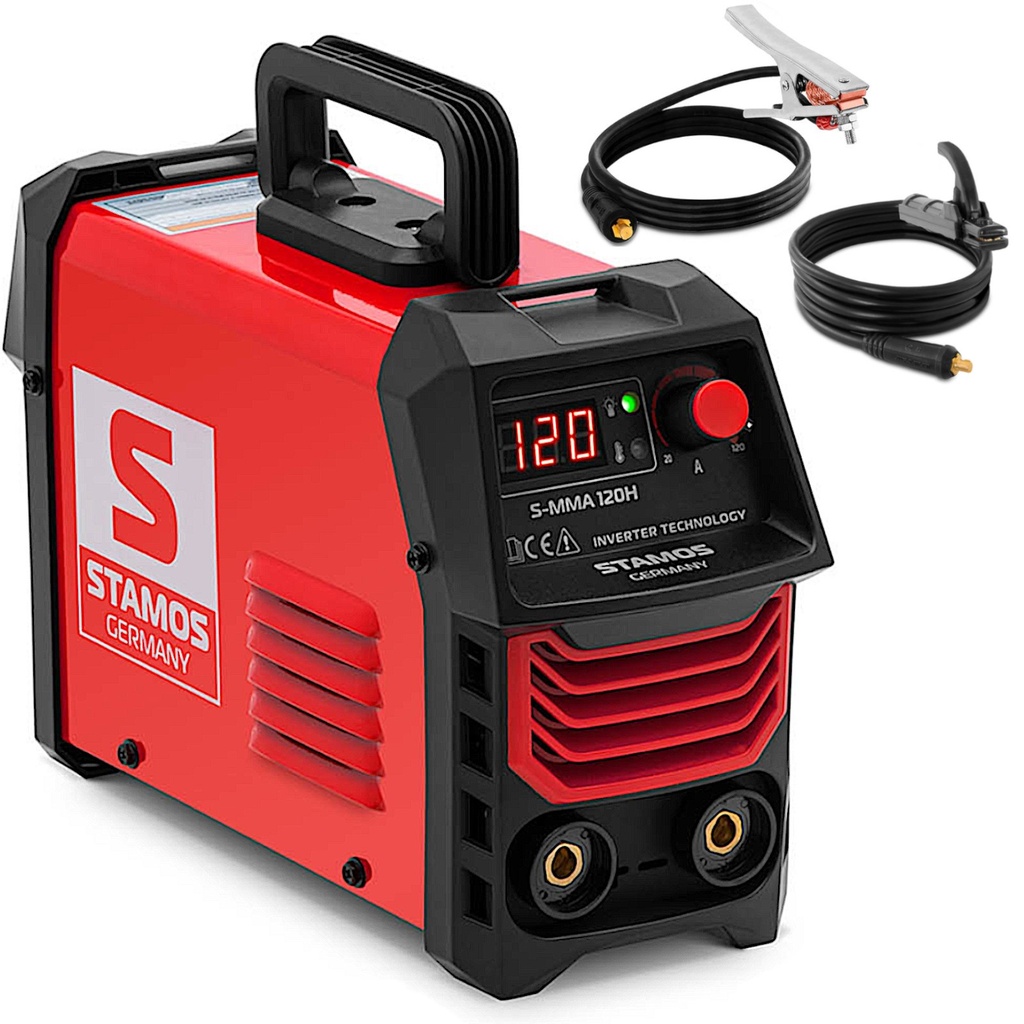

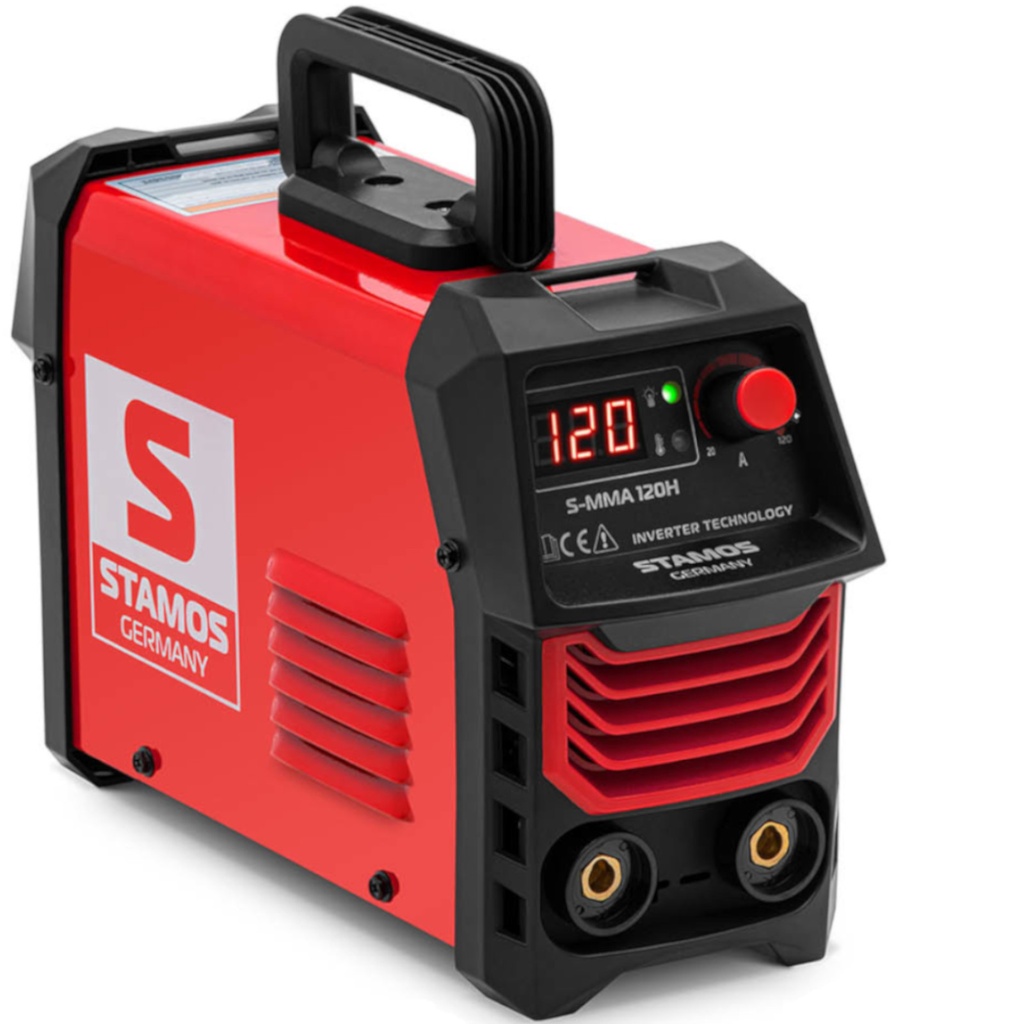

The Stamos Germany brand welder will be suitable for welding with electrodes with a diameter of 1.6 to 4 mm. The device can be used for metals such as steel, iron, copper, cast iron, nickel or copper alloy. The Hot Start, Arc Force and Anti-Stick functions allow you to achieve the best possible results. Hot Start briefly increases the current at the beginning of welding, and therefore optimal welds are obtained from the very beginning. Arc Force ensures a very stable arc and Anti-Stick prevents electrode sticking. The device has modern IGBT inverter technology, which ensures its efficiency. The welding current is adjustable via a dial in the range of 20-120 A. The set value is shown on the LED display. Welding current below 80 A allows you to weld continuously with a duty cycle of 100%. The welder is equipped with overheat protection. The compact design ensures convenient portability of the device.

Product features:

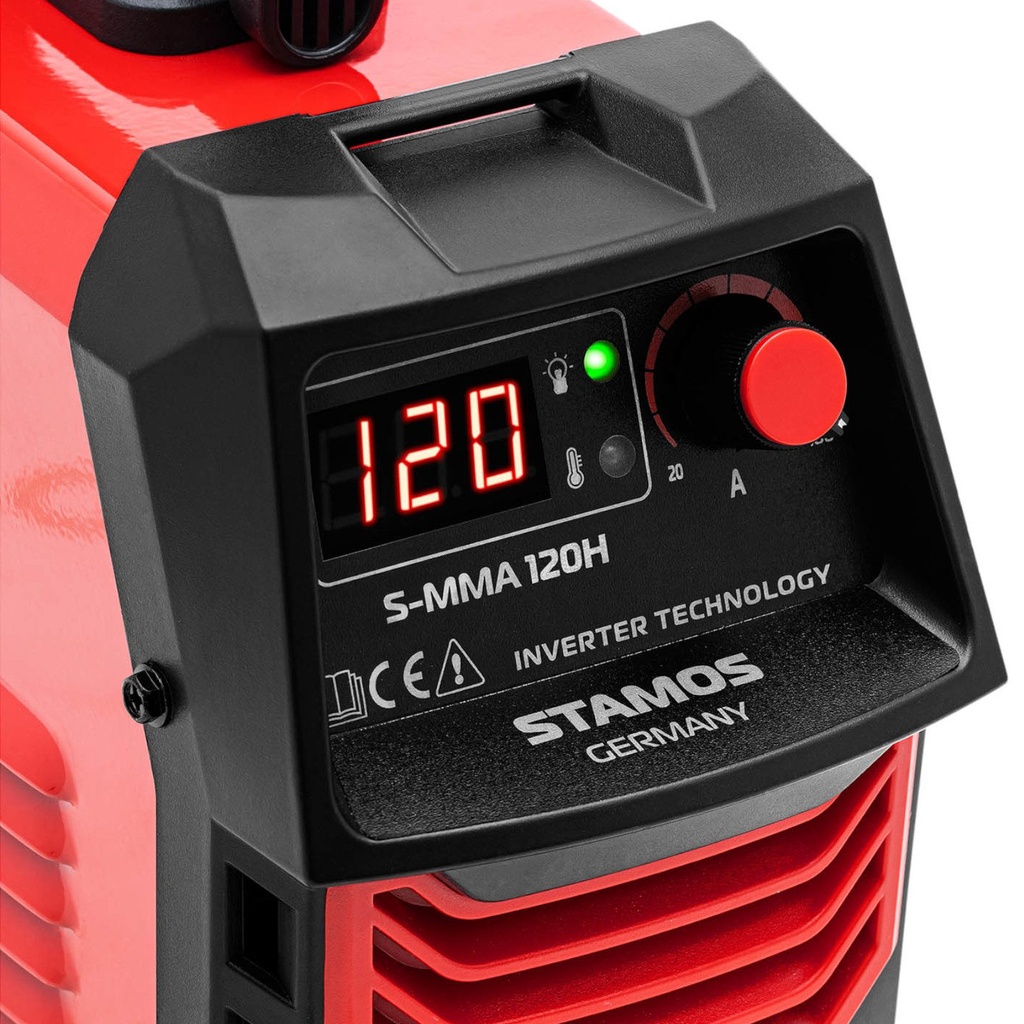

• - Electrode welder with dials and LED display,
• - Welding current from 20 to 120 A and 100% duty cycle under 80 A,
• - State-of-the-art IGBT inverter for optimal welding performance,
• - Hot Start, Arc Force and Anti-Stick functions,
• - Compact design and carrying handle.

• - Part number - 10021368
• - Article condition - New
• - Model - S-MMA 120H
• - Voltage [V] - 230
• - Efficiency (in rated conditions) [%] - 85
• - Housing cooling - Fan
• - Duty cycle [%] - 45
• - MMA cable [m] - 1.8
• - Power cord [m] - 2
• - Rated input power [kVA] - 4
• - Ground wire [m] - 1.2
• - Power factor - 0.75
• - Maximum input power [kVA] - 4
• - Insulation class - H
• - MMA electrode diameter [mm] - 1.6-3.2
• - Maximum input current [A] - 20
• - Weldable thickness [mm] - 3
• - Max. welding current [A] - 120
• - Min. welding current [A] - 20
• - Degree of protection IP - IP21S
• - Rated input current [A] - 10
• - Idling voltage [V] - 70
• - Welding current in 60% duty cycle [A] - 105
• - Welding current in 100% duty cycle [A] - 80
• - ARC-Force - Yes
• - Anti Stick - Yes
• - Hot Start - Yes
• - Dimensions (DxSxW) [cm] - 33 x 13 x 22
• - Weight [kg] - 4
• - Shipping dimensions (DxSxW) [cm] - 38 x 27 x 25
• - Shipping weight [kg] - 4.7

• - MMA welder

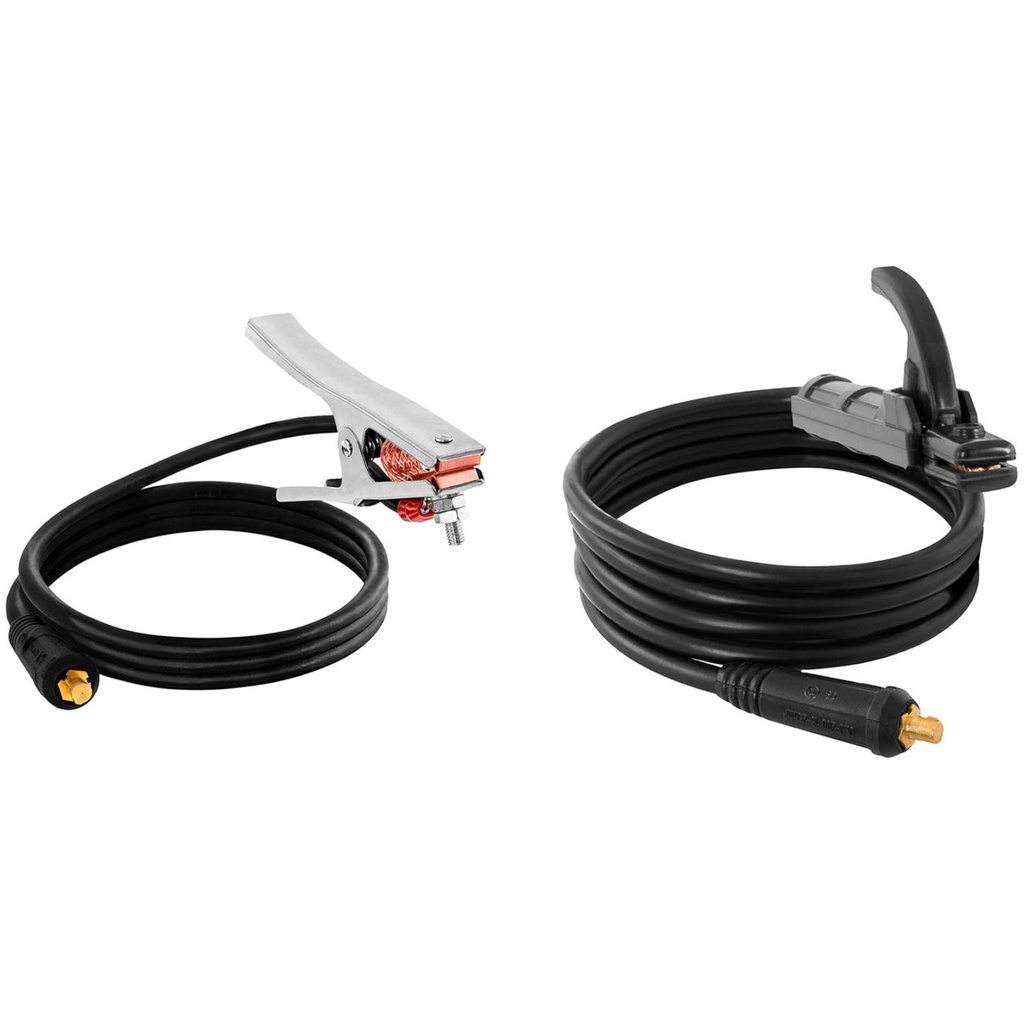

• - Electrode holder with cable (1.8 m)
• - Grounding cable (1.2 m)
• - Power cord (2 m)
• - Operating instructions
