Manufacturer code: 10061167

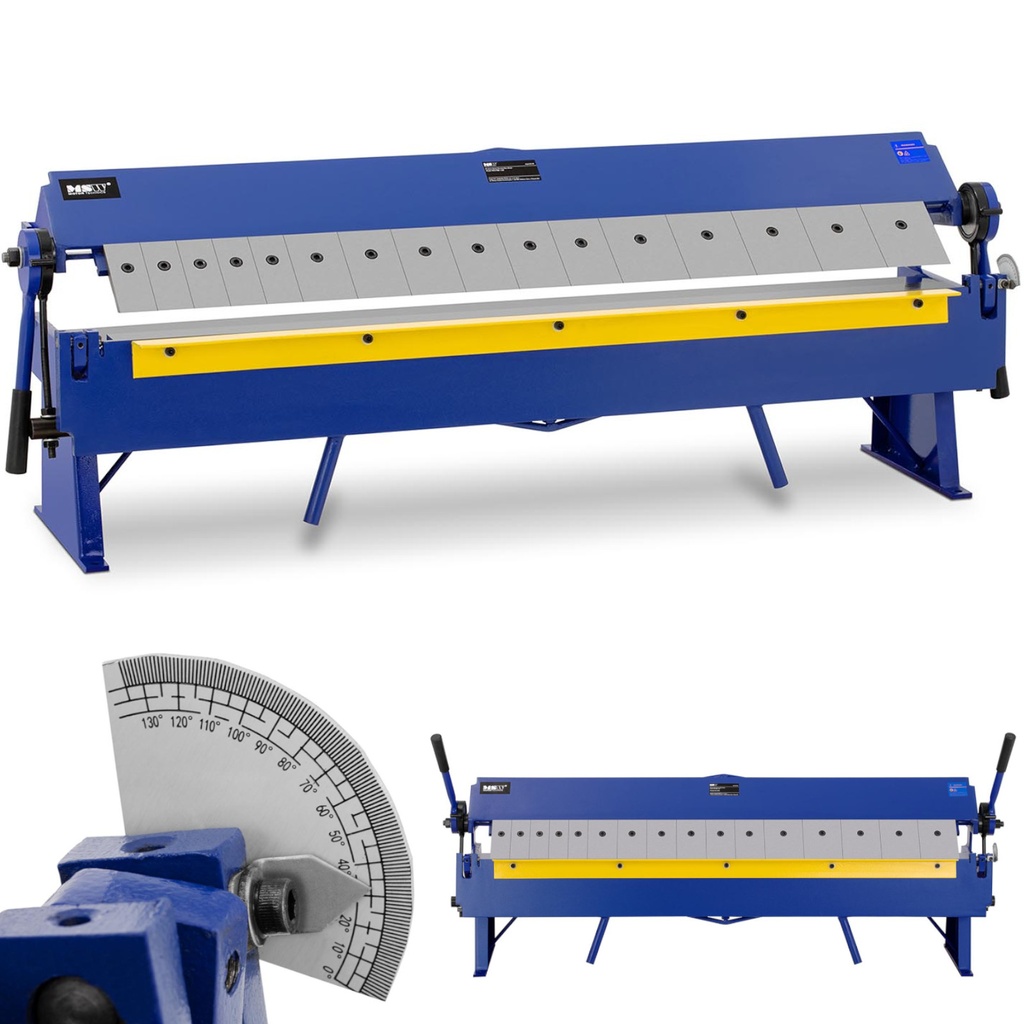

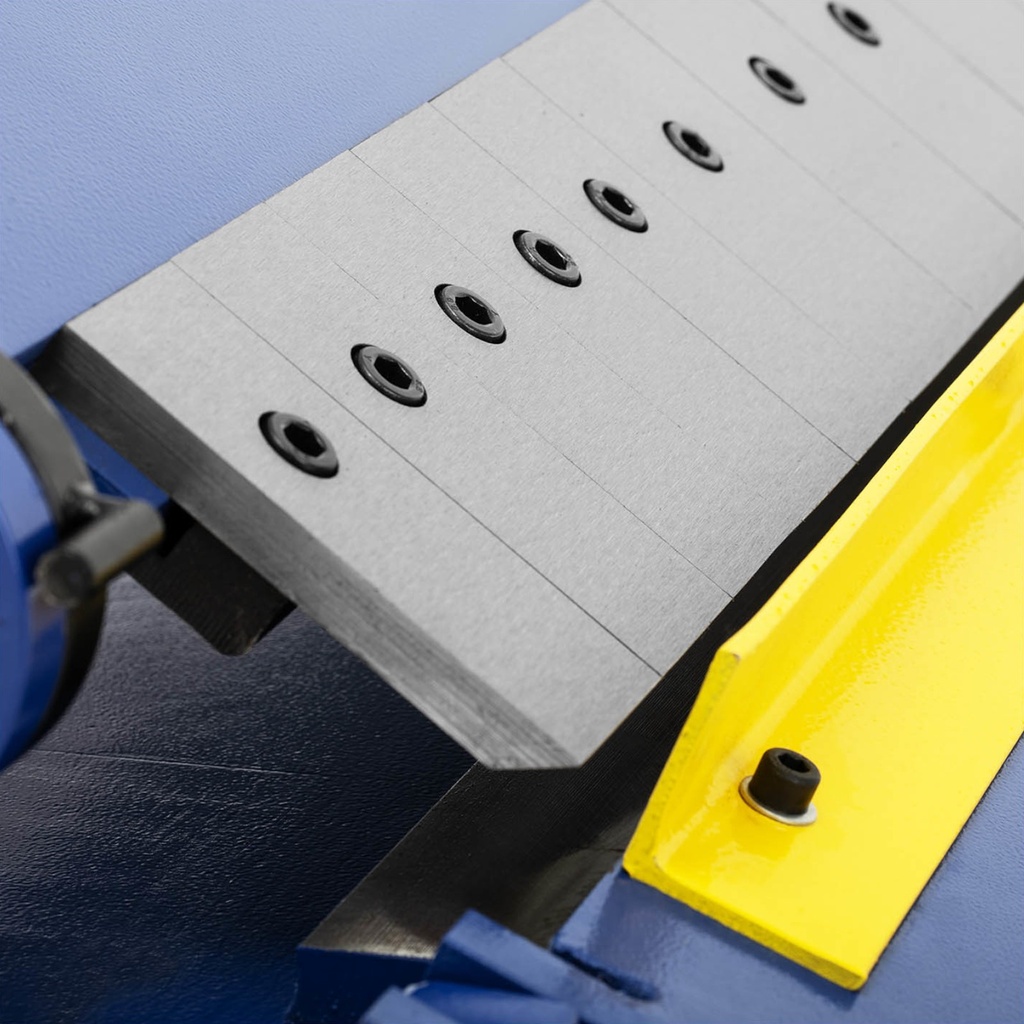

The sheet metal bending machine by MSW will prove useful for the renovation of car bodies, entrance gate structures, doors in workshops, factories, model factories. The machine processes sheets with a maximum width of 1220 mm (48'') and a thickness of 1.5 mm. The bending angle is 0-135°. The machine is equipped with 5 x 5'', 6 x 3'' and 5 x 4'' segments. The bending machine is precise and effective in operation. The device is operated manually, the levers have non-slip grips. The 9mm mounting holes in the base allow the device to be firmly fixed to the ground.

Product features:

• - Maximum working width 1220 mm,
• - Maximum sheet thickness of 1.5 mm,

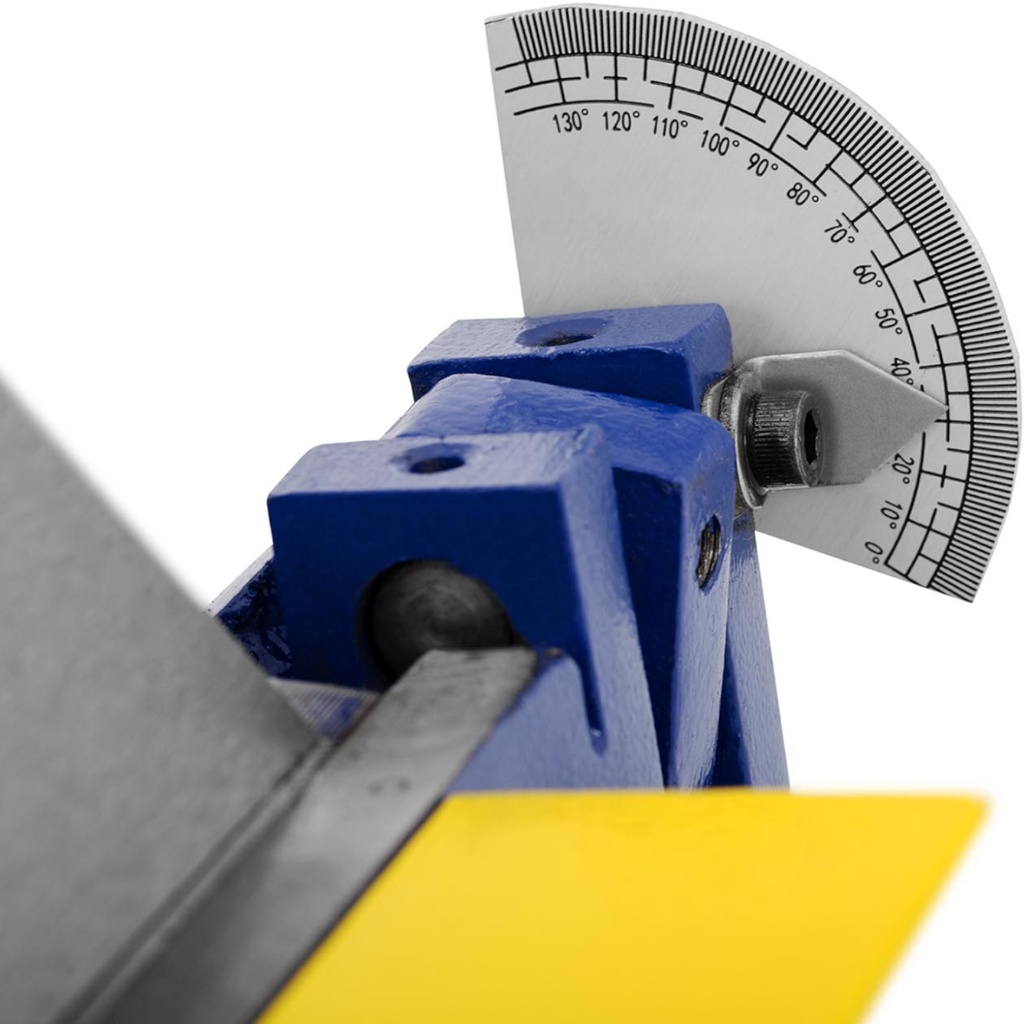

• - Folding angle adjustment in the range of 0-135°,
• - Made of high quality low carbon steel,
• - Compact design.

• - Part number - 10061167
• - Article condition - New
• - Model - MSW-PBR-1220
• - Material - Low carbon steel
• - Bending angle [°] - 0-135
• - Maximum thickness of the sheet to be machined [mm] - 1.5
• - Maximum width of the sheet to be processed [mm] - 1228
• - Dimensions (DxSxW) [cm] - 155 x 42 x 80
• - Weight [kg] - 126
• - Shipping dimensions (DxSxW) [cm] - 160 x 45 x 70
• - Shipping weight [kg] - 154

• - Bending machine
• - Mounting accessories
