Manufacturer code: 10021438

Stamos Germany brand welding mask provides protection when welding with electrodes and inert gas. It offers a full color perspective. The automatic visor has an adjustable DIN light protection range of 4/5-8/9-13. The self-test allows you to adjust the light shield to different needs. The field of view measures 100 x 60 mm. The durable X-BASIC cartridge is powered by solar cells and includes a replaceable CR2450 battery with a life of 5,000 hours. The visor is made of plastic and is extremely lightweight, weighing only 0.6 kg. The used material mixture made of PA66 and PC plastic is characterized by high abrasion resistance and dimensional stability. Very short response time of 1/25000 s from light to dark protects from harmful arc rays. It does not put undue strain on the eyes and does not require a long adjustment period. It also provides UV/IR protection at all brightness levels up to DIN 16. The GRIND function allows you to do other metal work such as grinding without removing the mask.

Product Features:

• - For all common welding methods,
• - Light protection according to DIN 4/5-8/9-13 and UV protection up to DIN 16,
• - Large COLOR field of view 100 x 60 mm,
• - 4 sensors with a response time of 1/25000 sec,
• - Adjustable delay of 0.2-1.0 s.

• - Part No. - 10021438
• - Article condition - New
• - Model - X-BASIC
• - Display type - Color
• - Power supply - Solar cells + Batteries
• - Material - PA
• - Color - Black
• - Field of view [mm] - 100 x 60
• - Angle adjustment [°] - 120
• - Shade control - Fully automatic
• - On-off buttons - Push button
• - IR/UV protection - Up to DIN 16
• - Brightness level - DIN 4 / DIN 5-9
• - Storage temperature [°C] - From -20 to 70
• - Filter cartridge size [mm] - 133 x 114 x 10
• - Switch-on time [s] - 1/25000
• - Brightening delay [s] - 0.2-1.0
• - Power supply details - Solar cells and replaceable lithium battery (1 x CR2450)
• - Degree of darkening - DIN 4/ 5-8 /9-13
• - Number of sensors - 4
• - Uniformity - 1
• - Optical class - 1
• - Light transmittance class depending on the viewing angle - 2
• - Light scattering class - 1
• - Mode for grinding - Yes
• - Dimensions (DxSxW) [cm] - 30 x 23 x 23
• - Weight [kg] - 0.6
• - Shipping dimensions (DxSxW) [cm] - 31 x 24 x 24
• - Shipping weight [kg] - 1

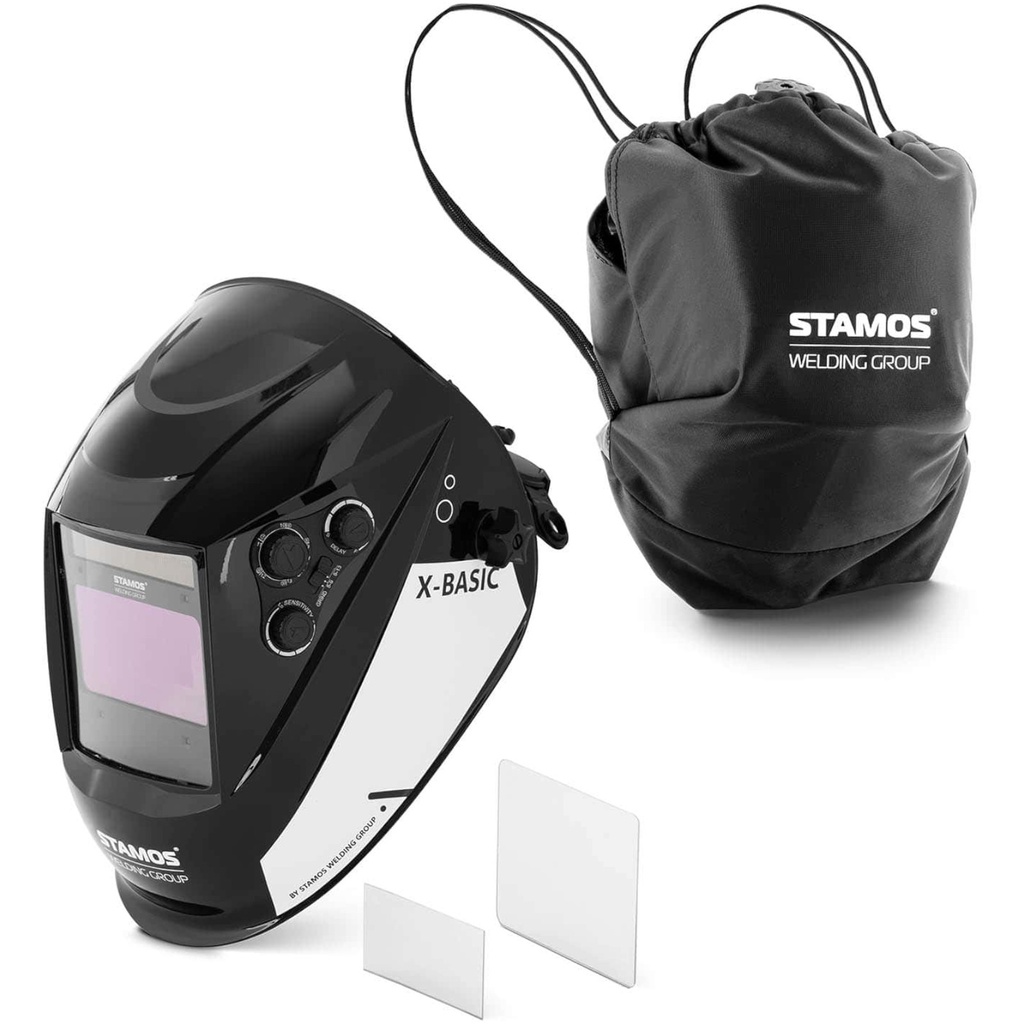

• - Welding mask

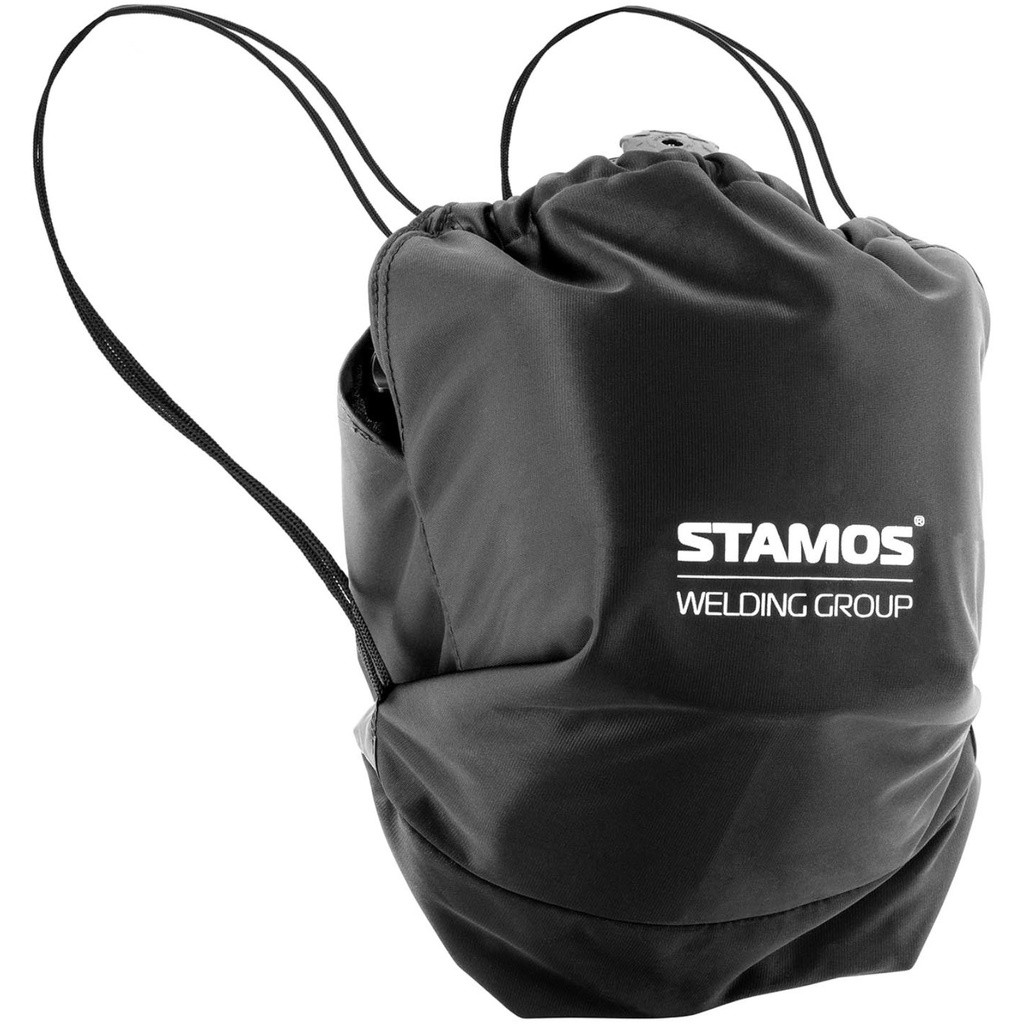

• - Protective bag
• - Protective lens kit (inside and outside)
